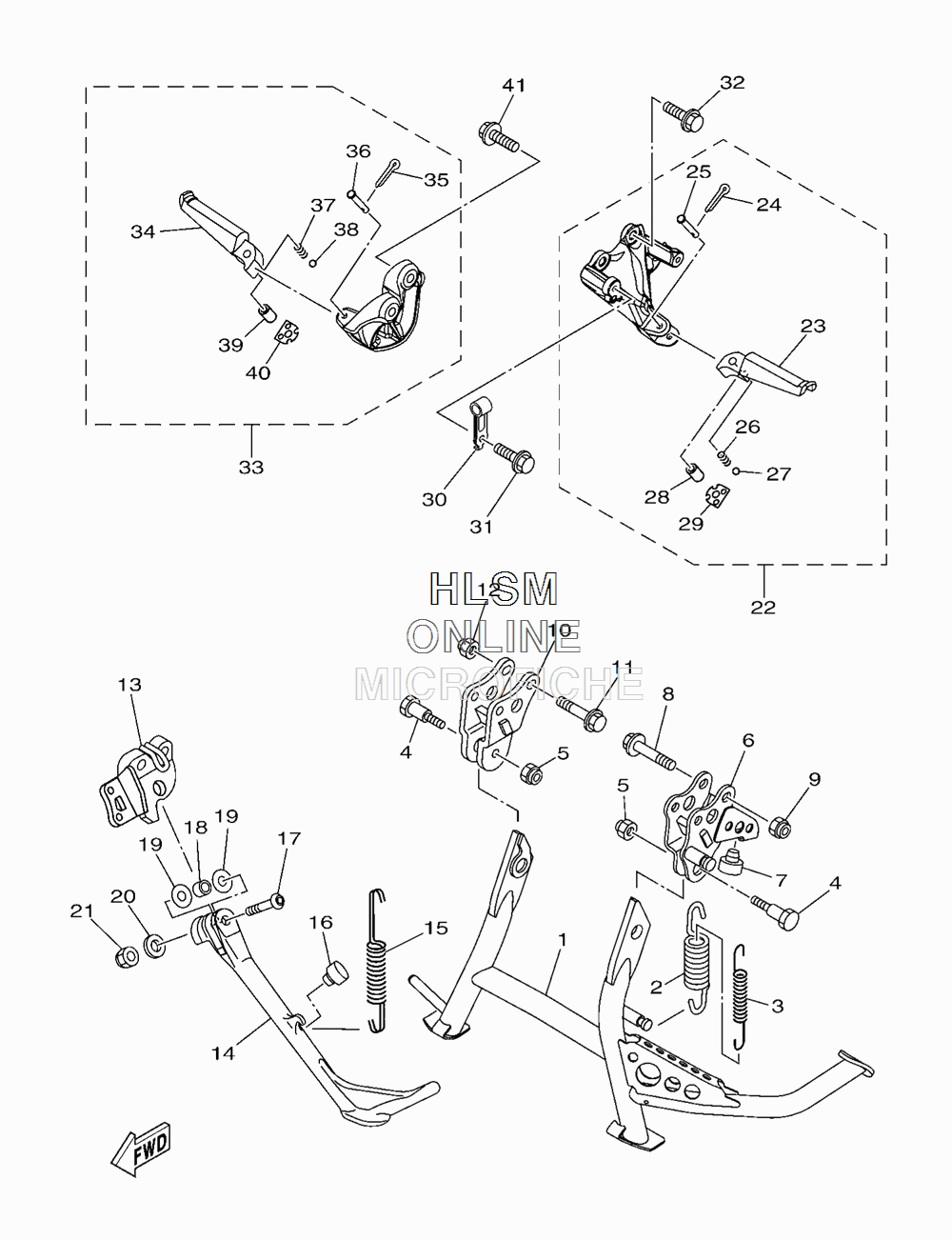

STAND W/ FOOTREST для Yamaha TMAX (CANADA) - 2012 года выпуска
-
№АртикулНазвание
-
159C-27111-00-00 STAND, MAINSTAND, MAIN
-
290506-40508-00 SPRING, TENSIONSPRING, TENSION
-
390506-23509-00 SPRING, TENSIONSPRING, TENSION
-
490109-10029-00 BOLTBOLT
-
590185-10022-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
659C-27151-00-00 BRACKET, MAIN STANDBRACKET, MAIN STAND
-
736C-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
890105-10283-00 BOLT, FLANGEBOLT, FLANGE
-
990185-10022-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
104B5-27152-00-00 BRACKET, MAIN STAND 2BRACKET, MAIN STAND 2
-
1190105-10283-00 BOLT, FLANGEBOLT, FLANGE
-
1290185-10022-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
134B5-27321-00-00 BRACKET, SIDE STANDBRACKET, SIDE STAND
-
1459C-27311-00-00 STAND, SIDESTAND, SIDE
-
1590506-18020-00 SPRING, TENSIONSPRING, TENSION
-
1659C-27114-00-00 STOPPERSTOPPER
-
1790111-10007-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
1890387-10020-00 COLLARCOLLAR
-
1990201-10051-00 WASHER, PLATEWASHER, PLATE
-
2090201-10035-00 WASHER, PLATEWASHER, PLATE
-
2190185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2259C-27430-00-00 REAR FOOTREST ASSY 1REAR FOOTREST ASSY 1
-
233VR-27431-01-00 ...FOOTREST, REAR 1...FOOTREST, REAR 1
-
2491402-20012-00 ...PIN, COTTER...PIN, COTTER
-
2591702-06038-00 ...PIN, CLEVIS...PIN, CLEVIS
-
2690501-15001-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
2793501-04011-00 ...BALL 1/4...BALL 1/4
-
2890387-064H8-00 ...COLLAR...COLLAR
-
294B5-27437-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
3059C-25876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
3195802-06014-00 BOLT, FLANGEBOLT, FLANGE
-
3295812-08025-00 BOLT, FLANGEBOLT, FLANGE
-
3359C-27440-00-00 REAR FOOTREST ASSY 2REAR FOOTREST ASSY 2
-
343VR-27441-01-00 ...FOOTREST, REAR 2...FOOTREST, REAR 2
-
3591402-20012-00 ...PIN, COTTER...PIN, COTTER
-
3691702-06038-00 ...PIN, CLEVIS...PIN, CLEVIS
-
3790501-15001-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
3893501-04011-00 ...BALL 1/4...BALL 1/4
-
3990387-064H8-00 ...COLLAR...COLLAR
-
404B5-27437-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
4195812-08025-00 BOLT, FLANGEBOLT, FLANGE
