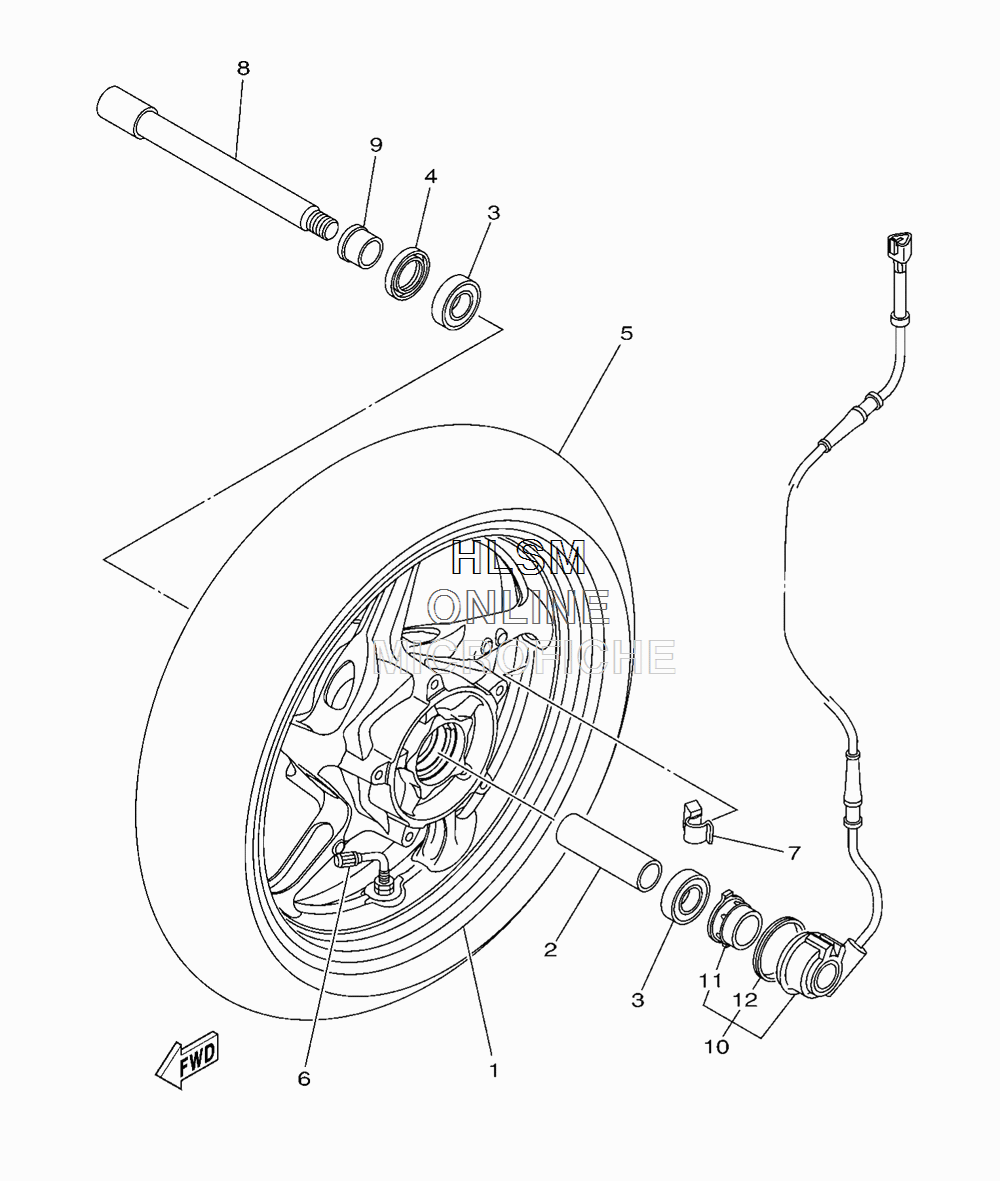

WHEEL - FRONT для Yamaha TMAX (CANADA) - 2012 года выпуска
-
№АртикулНазвание
-
159C-25168-00-P0 CAST WHEEL, FRONT MDYNM2 FOR BWC1CAST WHEEL, FRONT MDYNM2 FOR BWC1
-
25EA-25117-00-00 SPACER, BEARINGSPACER, BEARING
-
393306-07208-00 BEARINGBEARING
-
493106-28043-00 OIL SEALOIL SEAL
-
594112-15008-00 TIRE(120/70R15M/C 56H BT011F) BSTIRE(120/70R15M/C 56H BT011F) BS
-
594112-15009-00 TIRE(120/70R15M/C56H GPR-100F) DUNLOPTIRE(120/70R15M/C56H GPR-100F) DUNLOP
-
693900-00025-00 VALVE, RIM (PVR59A)VALVE, RIM (PVR59A)
-
75MT-25398-00-00 BALANCER, WHEEL (10G)BALANCER, WHEEL (10G)
-
75MT-25398-10-00 BALANCER, WHEEL (20G)BALANCER, WHEEL (20G)
-
75MT-25398-20-00 BALANCER, WHEEL (30G)BALANCER, WHEEL (30G)
-
84XV-25181-10-00 AXLE, WHEELAXLE, WHEEL
-
990387-22016-00 COLLARCOLLAR
-
1059C-83755-00-00 SENSOR, SPEEDSENSOR, SPEED
-
115RB-2517G-10-00 ...ROTOR, SENSOR...ROTOR, SENSOR
-
125RB-2511B-00-00 ...SEAL, OIL...SEAL, OIL
