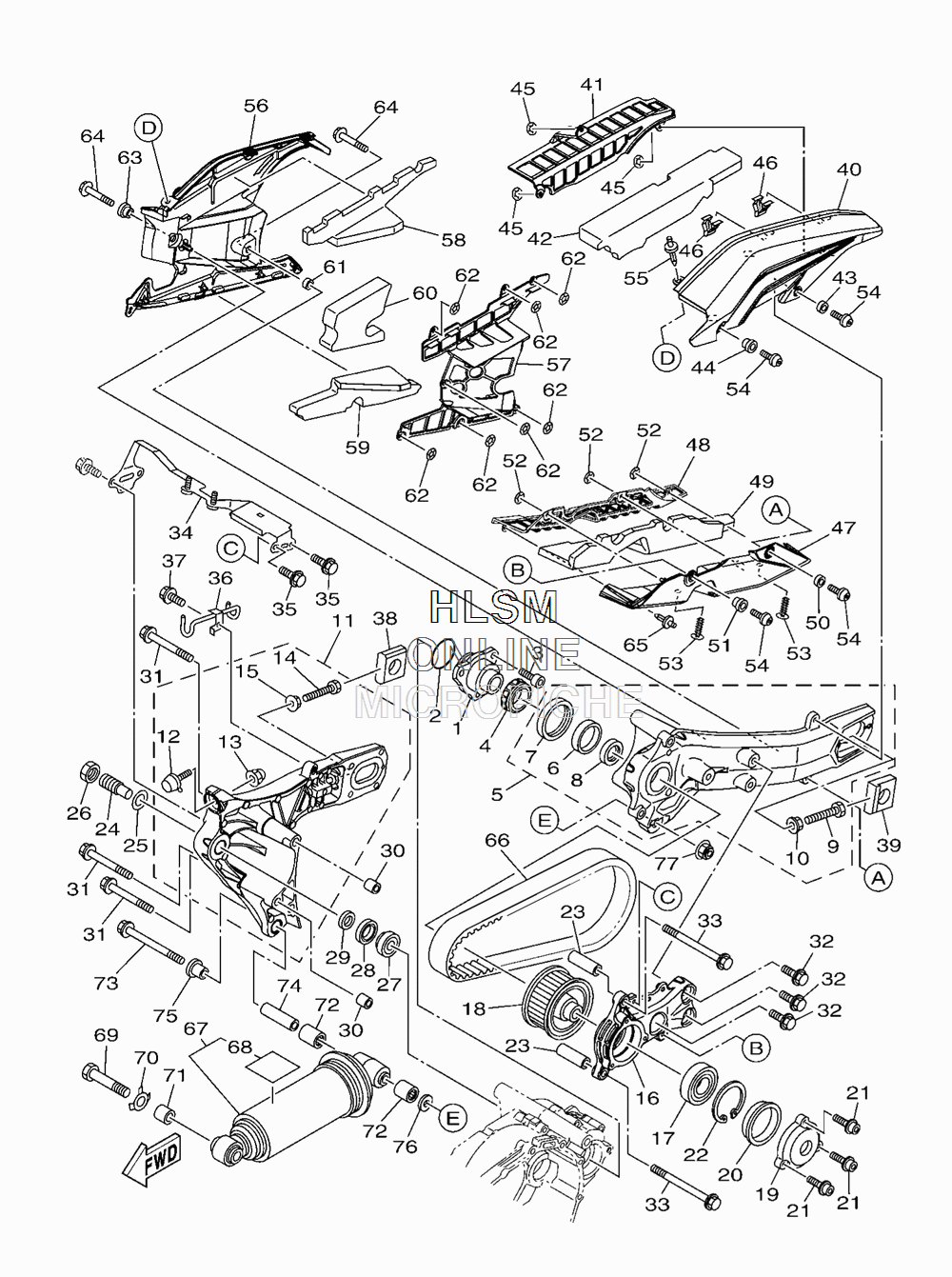

SUSPENSION - REAR ARM W/ SHOCK для Yamaha TMAX (CANADA) - 2012 года выпуска
-
№АртикулНазвание
-
115B-17524-00-00 HOLDERHOLDER
-
293210-50553-00 O-RINGO-RING
-
391312-08020-00 BOLTBOLT
-
493332-00086-00 BEARINGBEARING
-
559C-2210M-00-00 REAR ARM ASSY 1REAR ARM ASSY 1
-
65GJ-17554-00-00 ...RETAINER, BEARING...RETAINER, BEARING
-
793102-55004-00 ...OIL SEAL...OIL SEAL
-
893102-30284-00 ...OIL SEAL, SD-TYPE...OIL SEAL, SD-TYPE
-
990101-08013-00 ...BOLT...BOLT
-
1095702-08500-00 ...NUT, FLANGE...NUT, FLANGE
-
1159C-2210N-00-00 REAR ARM ASSY 2REAR ARM ASSY 2
-
1259C-22426-00-00 ...BUMP, STOP...BUMP, STOP
-
1390176-06016-00 ...NUT, CAP...NUT, CAP
-
1490101-08013-00 ...BOLT...BOLT
-
1595702-08500-00 ...NUT, FLANGE...NUT, FLANGE
-
1659C-22465-00-00 HOLDERHOLDER
-
1793306-20662-00 BEARINGBEARING
-
1859C-17651-00-00 PULLEY, BELTPULLEY, BELT
-
1959C-2219X-00-00 COVERCOVER
-
2059C-2214F-00-00 DAMPER 1DAMPER 1
-
2190110-06163-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2299009-62500-00 CIRCLIPCIRCLIP
-
2359C-46153-00-00 COLLAR, GUIDECOLLAR, GUIDE
-
2415B-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
2590201-22018-00 WASHER, PLATEWASHER, PLATE
-
261J7-22143-00-00 NUTNUT
-
2793332-00010-00 BEARINGBEARING
-
2893102-25017-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
2990387-17011-00 COLLARCOLLAR
-
3099530-14016-00 PIN, DOWELPIN, DOWEL
-
3195812-10100-00 BOLT, FLANGEBOLT, FLANGE
-
3295817-10025-00 BOLT, FLANGEBOLT, FLANGE
-
3395817-10090-00 BOLT, FLANGEBOLT, FLANGE
-
3459C-21682-00-00 STAY, PLATESTAY, PLATE
-
3595822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
3659C-2587A-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
3795822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
385VY-25388-00-00 PULLER, CHAIN 1PULLER, CHAIN 1
-
3959C-25389-00-00 PULLER, CHAIN 2PULLER, CHAIN 2
-
4059C-22311-00-00 CASE, CHAINCASE, CHAIN
-
4159C-22131-00-00 STAY, CHAIH CASE 1STAY, CHAIH CASE 1
-
4259C-2174X-00-00 DAMPERDAMPER
-
4390387-06372-00 COLLARCOLLAR
-
4490387-06130-00 COLLARCOLLAR
-
4590183-05M02-00 NUT, SPRINGNUT, SPRING
-
4690468-040A0-00 CLIPCLIP
-
4759C-22312-00-00 CASE, CHAIN 2CASE, CHAIN 2
-
4859C-22132-00-00 STAY 2STAY 2
-
4959C-2174Y-00-00 DAMPERDAMPER
-
5090387-06372-00 COLLARCOLLAR
-
5190387-06130-00 COLLARCOLLAR
-
5290183-05M02-00 NUT, SPRINGNUT, SPRING
-
5390269-03001-00 RIVETRIVET
-
5490111-06116-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
5590269-06001-00 RIVETRIVET
-
5659C-22381-00-00 COVER 1COVER 1
-
5759C-22133-00-00 STAY, CHAIN CASE 3STAY, CHAIN CASE 3
-
5859C-2834E-00-00 DAMPER 3DAMPER 3
-
5959C-2834F-00-00 DAMPERDAMPER
-
6059C-28267-00-00 DAMPER 5DAMPER 5
-
6190387-06372-00 COLLARCOLLAR
-
6290183-05M02-00 NUT, SPRINGNUT, SPRING
-
6390387-06130-00 COLLARCOLLAR
-
6495822-06014-00 BOLT, FLANGEBOLT, FLANGE
-
6590269-06001-00 RIVETRIVET
-
6659C-W4624-00-00 BELTBELT
-
6759C-22210-20-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
684AA-22259-60-00 ...LABEL, WARNING...LABEL, WARNING
-
6990101-16003-00 BOLTBOLT
-
704B5-22243-00-00 WASHER 1WASHER 1
-
7190387-16019-00 COLLARCOLLAR
-
7293317-41761-00 BEARING, CYL.#17BEARING, CYL.#17
-
7390105-12053-00 BOLT, FLANGEBOLT, FLANGE
-
7490387-12003-00 COLLARCOLLAR
-
7590387-12039-00 COLLARCOLLAR
-
7690201-12043-00 WASHER, PLATEWASHER, PLATE
-
7795602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
