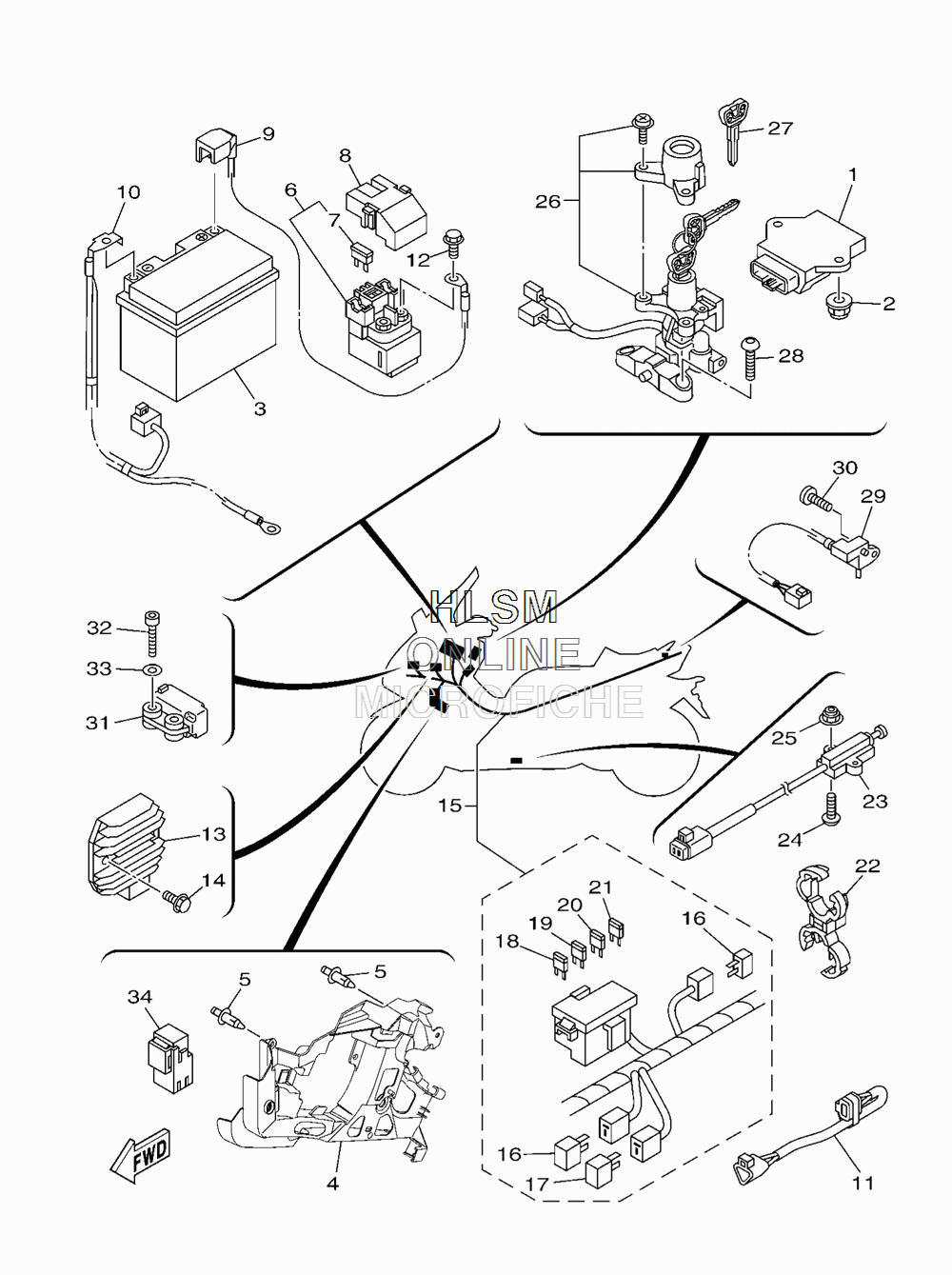

ELECTRICAL для Yamaha TMAX (CANADA) - 2012 года выпуска
-
№АртикулНазвание
-
159C-8591A-20-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
295602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
323P-82100-00-00 BATTERY ASSY (GS YUASA YTZ12S)BATTERY ASSY (GS YUASA YTZ12S)
-
459C-2116M-00-00 BRACKET 10BRACKET 10
-
590269-06008-00 RIVETRIVET
-
659C-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
75EA-82151-00-00 ...FUSE (40A-BL)...FUSE (40A-BL)
-
85SL-82119-10-00 COVER, LEAD WIRECOVER, LEAD WIRE
-
959C-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
1059C-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
1159C-82583-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
1295022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
135VX-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
1495802-06020-00 BOLT, FLANGEBOLT, FLANGE
-
1559C-82590-20-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
164WA-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
173WP-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
185JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
195JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
205JJ-82151-00-00 ...FUSE (7.5A-BL)...FUSE (7.5A-BL)
-
215JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
2290464-22004-00 CLAMPCLAMP
-
2359C-82566-00-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
2492012-05020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2595602-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2659C-82501-10-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
274BH-82511-09-00 BLANK KEYBLANK KEY
-
2890149-08035-00 SCREWSCREW
-
2959C-81860-00-00 SWITCH ASSYSWITCH ASSY
-
3098902-03008-00 SCREW, BINDSCREW, BIND
-
315VU-82576-01-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
3291312-04025-00 BOLTBOLT
-
3390201-04325-00 WASHER, PLATEWASHER, PLATE
-
345JJ-81950-20-00 RELAY ASSYRELAY ASSY
