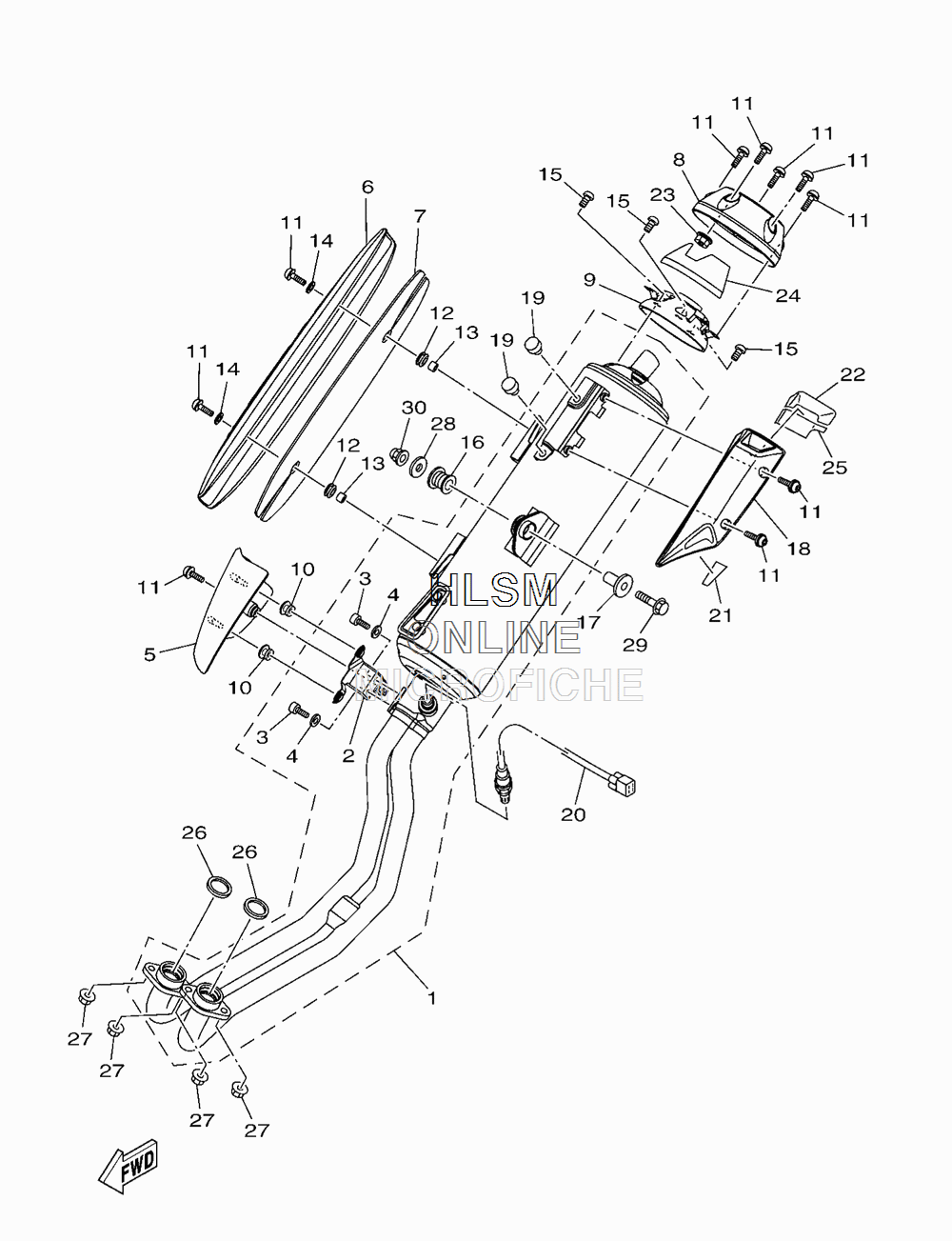

EXHAUST ASSY. для Yamaha TMAX (CANADA) - 2012 года выпуска
-
№АртикулНазвание
-
159C-14711-00-00 MUFFLER 1MUFFLER 1
-
259C-1471M-00-00 ...BRACKET, 1-3...BRACKET, 1-3
-
391380-06012-00 ...BOLT...BOLT
-
492990-06200-00 ...WASHER, PLAIN...WASHER, PLAIN
-
54B5-1465R-00-00 PLATE, PROTECTORPLATE, PROTECTOR
-
65VU-1465T-00-00 PLATE, PROTECTORPLATE, PROTECTOR
-
75VU-1465U-00-00 PLATE, PROTECTOR 3PLATE, PROTECTOR 3
-
859C-14799-00-00 CAPCAP
-
959C-14629-01-00 STAY, PROTECTORSTAY, PROTECTOR
-
1090480-10332-00 GROMMETGROMMET
-
1190111-06015-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
1290480-12581-00 GROMMETGROMMET
-
1390387-06023-00 COLLARCOLLAR
-
1490201-062G3-00 WASHER, PLATEWASHER, PLATE
-
1598980-06008-00 SCREW, BINDSCREW, BIND
-
1636Y-27424-01-00 DAMPER, FOOTREST 2DAMPER, FOOTREST 2
-
1790387-10046-00 COLLARCOLLAR
-
184B5-14718-00-00 PROTECTOR, MUFFLER 1PROTECTOR, MUFFLER 1
-
1922W-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
2059C-8592A-00-00 SENSOR, OXYGENSENSOR, OXYGEN
-
214B5-14728-00-00 PROTECTOR, MUFFLER 2PROTECTOR, MUFFLER 2
-
2259C-14738-00-00 PROTECTOR, MUFFLER 3PROTECTOR, MUFFLER 3
-
2395704-06500-00 NUT, FLANGENUT, FLANGE
-
2459C-1465V-01-00 PLATE, PROTECTOR 4PLATE, PROTECTOR 4
-
2559C-14748-00-00 PROTECTOR, MUFFLER 4PROTECTOR, MUFFLER 4
-
264BR-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
2795602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2890201-10043-00 WASHER, PLATEWASHER, PLATE
-
2995812-10040-00 BOLT, FLANGEBOLT, FLANGE
-
3090176-10075-00 NUT, CROWNNUT, CROWN
