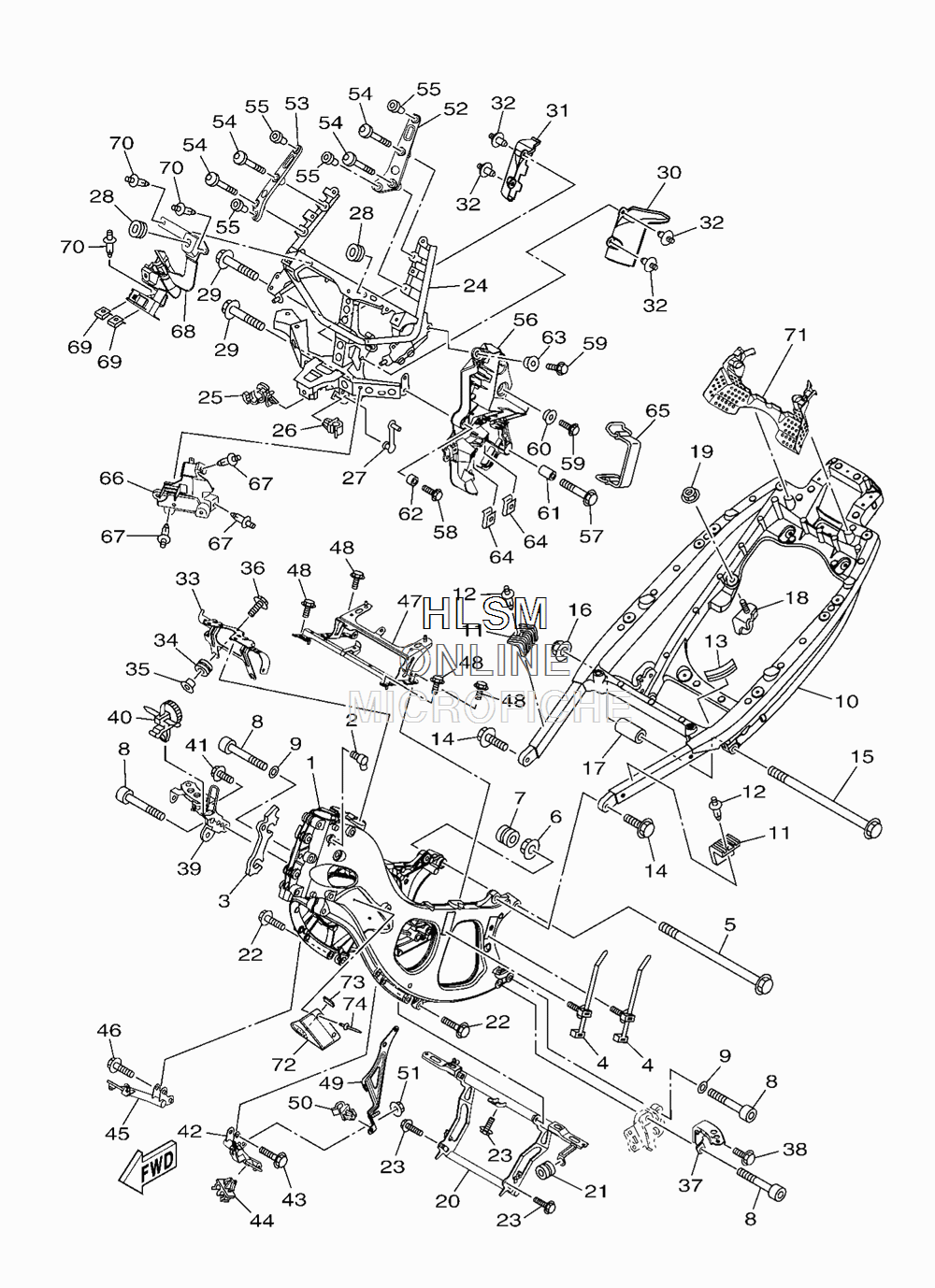

FRAME для Yamaha TMAX (CANADA) - 2012 года выпуска
-
№АртикулНазвание
-
159C-21110-00-00 FRAME COMP.FRAME COMP.
-
25VX-21279-10-00 PLUG, BLINDPLUG, BLIND
-
34B5-2113B-00-00 DAMPERDAMPER
-
45RU-12491-00-00 CLAMP 1CLAMP 1
-
590105-12052-00 BOLT, FLANGEBOLT, FLANGE
-
695602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
790480-14229-00 GROMMETGROMMET
-
890110-10032-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
990201-10037-00 WASHER, PLATEWASHER, PLATE
-
1059C-21190-00-00 REAR FRAME COMP.REAR FRAME COMP.
-
1159C-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
1290269-06001-00 RIVETRIVET
-
1331A-24188-01-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
1490105-12058-00 BOLT, FLANGEBOLT, FLANGE
-
1590105-12052-00 BOLT, FLANGEBOLT, FLANGE
-
1695602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1759C-21116-00-00 COLLARCOLLAR
-
184B5-21445-00-00 STAY, MUFFLER 1STAY, MUFFLER 1
-
1995602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
2059C-2142K-10-00 BRACKET, RADIATORBRACKET, RADIATOR
-
2190480-14052-00 GROMMETGROMMET
-
2295812-08030-00 BOLT, FLANGEBOLT, FLANGE
-
2395822-06020-00 BOLT, FLANGEBOLT, FLANGE
-
2459C-28356-00-00 STAY 1STAY 1
-
2590464-18246-00 CLAMPCLAMP
-
2690464-08051-00 CLAMPCLAMP
-
2790464-09026-00 CLAMPCLAMP
-
2890480-01558-00 GROMMETGROMMET
-
2995822-10045-00 BOLT, FLANGEBOLT, FLANGE
-
304B5-2117F-00-00 COVERCOVER
-
314B5-2117M-00-00 COVER 2COVER 2
-
3290269-07077-00 RIVETRIVET
-
3359C-21147-00-00 BRACKET, AIR CLEANER 1BRACKET, AIR CLEANER 1
-
3490480-13003-00 GROMMETGROMMET
-
3590560-06201-00 SPACERSPACER
-
3695822-06016-00 BOLT, FLANGEBOLT, FLANGE
-
3759C-2141A-00-00 BRACKET 1BRACKET 1
-
3895822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
3959C-2141E-10-00 BRACKET 2BRACKET 2
-
4090464-12089-00 CLAMPCLAMP
-
4195822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
4259C-2144H-00-00 BRACKET, FOOTREST 3BRACKET, FOOTREST 3
-
4395812-08030-00 BOLT, FLANGEBOLT, FLANGE
-
4490464-08126-00 CLAMPCLAMP
-
4559C-2145H-00-00 BRACKET, FOOTREST 4BRACKET, FOOTREST 4
-
4695812-08030-00 BOLT, FLANGEBOLT, FLANGE
-
4759C-21345-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
4890119-06186-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4959C-2117A-00-00 STAYSTAY
-
5090464-08051-00 CLAMPCLAMP
-
5195702-06500-00 NUT, FLANGENUT, FLANGE
-
5259C-28322-00-00 STAY 2STAY 2
-
5359C-28332-00-00 STAY, LEG SHIELDSTAY, LEG SHIELD
-
5490111-06106-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
5590179-05003-00 NUTNUT
-
5659C-8212B-00-00 BOX, BATTERY 1BOX, BATTERY 1
-
5790119-08112-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
5890119-06209-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
5995822-06014-00 BOLT, FLANGEBOLT, FLANGE
-
6090387-06170-00 COLLARCOLLAR
-
6190387-10100-00 COLLARCOLLAR
-
6290387-08042-00 COLLARCOLLAR
-
6390387-07006-00 COLLARCOLLAR
-
6490183-06069-00 NUT, SPRINGNUT, SPRING
-
65137-82131-01-00 BAND, BATTERYBAND, BATTERY
-
6659C-8212C-00-00 BOX, BATTERY 2BOX, BATTERY 2
-
6790269-06008-00 RIVETRIVET
-
6859C-2117J-00-00 STAY, RELAYSTAY, RELAY
-
6990183-04039-00 NUT, SPRINGNUT, SPRING
-
7090269-06008-00 RIVETRIVET
-
7159C-8252R-00-00 DAMPERDAMPER
-
724B5-2116M-00-00 BRACKET 10BRACKET 10
-
732C0-27414-00-00 DAMPER, FOOTRESTDAMPER, FOOTREST
-
7490267-32196-00 RIVET, BLINDRIVET, BLIND
