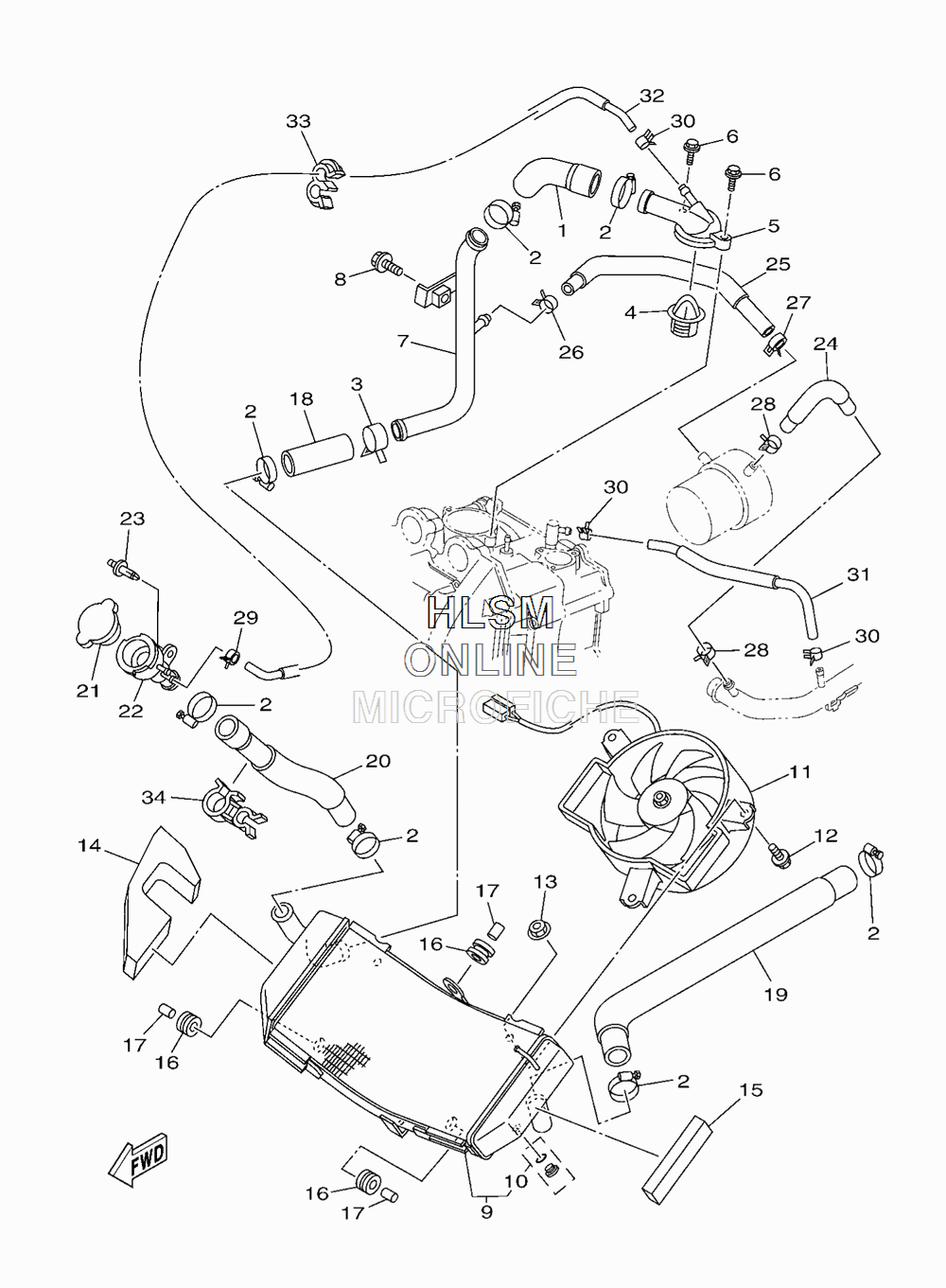

RADIATOR W/ HOSES для Yamaha TMAX (CANADA) - 2012 года выпуска
-
№АртикулНазвание
-
159C-12483-00-00 PIPE 3PIPE 3
-
290450-32015-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
390467-26189-00 CLIPCLIP
-
44JH-12410-00-00 THERMOSTAT ASSYTHERMOSTAT ASSY
-
54B5-12413-00-00 COVER, THERMOSTATCOVER, THERMOSTAT
-
695022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
759C-12484-00-00 PIPE 4PIPE 4
-
895022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
959C-12461-00-00 RADIATOR COMPRADIATOR COMP
-
105VU-12478-00-00 ...COCK, DRAIN...COCK, DRAIN
-
1159C-12405-00-00 BLOWER ASSYBLOWER ASSY
-
122S3-12675-00-00 BOLT, BLOWER HOLDINGBOLT, BLOWER HOLDING
-
135SL-12671-00-00 NUT 1NUT 1
-
1459C-28455-00-00 DAMPER, 4DAMPER, 4
-
1559C-28435-00-00 DAMPER 4DAMPER 4
-
1690480-16301-00 GROMMETGROMMET
-
1790387-065L7-00 COLLARCOLLAR
-
1859C-12485-00-00 PIPE 5PIPE 5
-
1959C-12476-00-00 PIPE 6PIPE 6
-
2059C-12477-00-00 PIPE 7PIPE 7
-
215SL-12462-00-00 CAP, RADIATORCAP, RADIATOR
-
225GJ-12591-00-00 SUPT, FILLER NECKSUPT, FILLER NECK
-
2390269-07008-00 RIVETRIVET
-
2459C-1243A-00-00 HOSE 1HOSE 1
-
254B5-1243E-00-00 HOSE 2HOSE 2
-
2690467-15001-00 CLIPCLIP
-
2790467-15141-00 CLIPCLIP
-
2890467-160A6-00 CLIPCLIP
-
2990467-10038-00 CLIPCLIP
-
3090467-10035-00 CLIPCLIP
-
3159C-12589-00-00 HOSE 6HOSE 6
-
3259C-12551-00-00 HOSE 7HOSE 7
-
3390464-13194-00 CLAMPCLAMP
-
3490464-23001-00 CLAMPCLAMP
