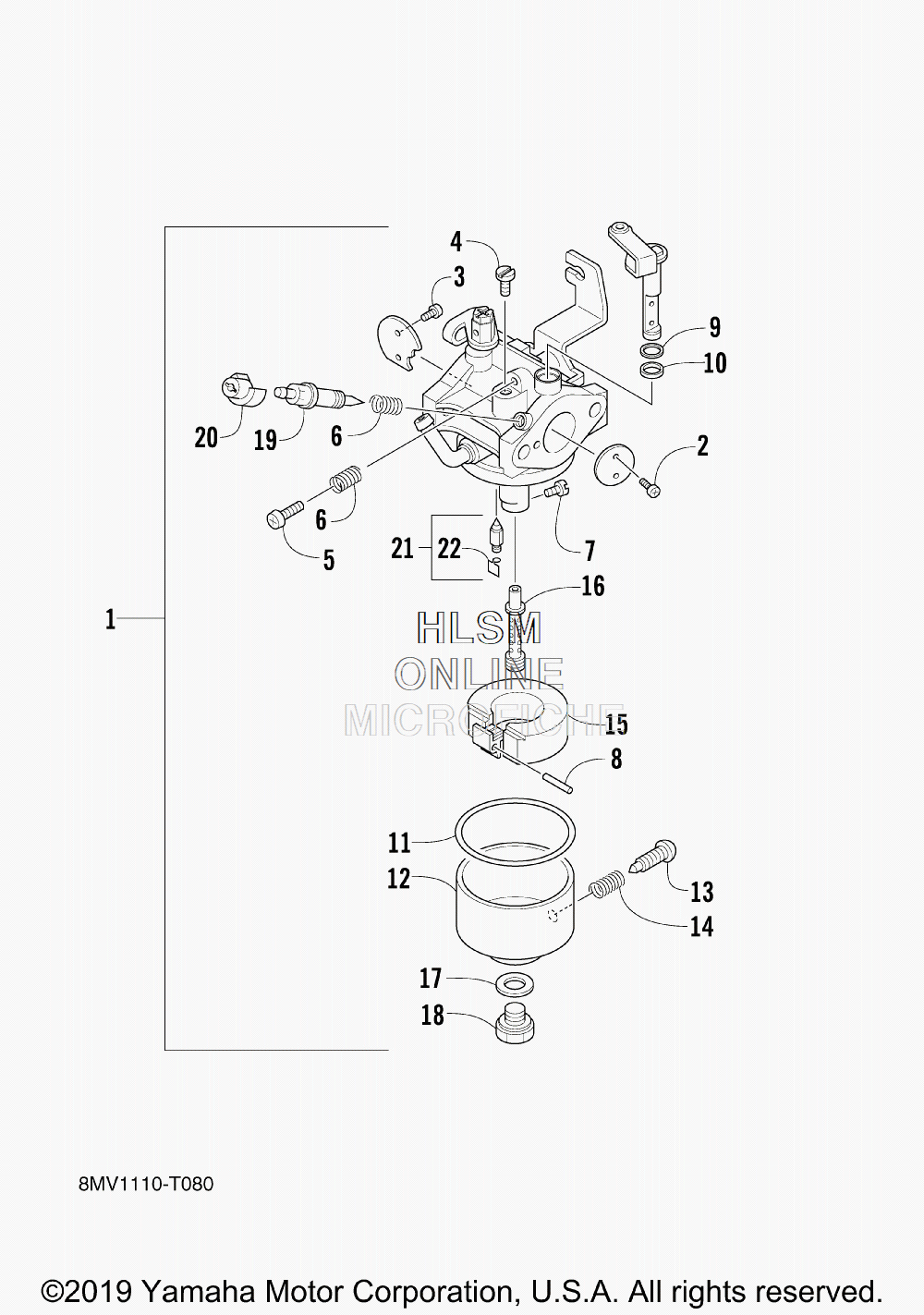

CARBURETOR ASSY для Yamaha SRX 120 R - 2019 года выпуска
-
№АртикулНазвание
-
17CL-E4101-42-00 CARBURETOR ASSY 1CARBURETOR ASSY 1
-
27RH-14216-00-00 ...SCREW...SCREW
-
37RH-14486-00-00 ...SCREW, ROD...SCREW, ROD
-
4620-14142-37-A0 ...JET, PILOT (#37.5)...JET, PILOT (#37.5)
-
51WG-14922-00-00 ...SCREW, THROTTLE...SCREW, THROTTLE
-
673A-14212-00-00 ...SPRING...SPRING
-
71HX-1423A-66-A0 ...JET, MAIN (#77.5)...JET, MAIN (#77.5)
-
822F-14186-00-00 ...PIN, FLOAT...PIN, FLOAT
-
922F-14953-00-00 ...WASHER...WASHER
-
106K8-14597-10-00 ...WASHER...WASHER
-
117CN-E4997-00-00 ...SEAL...SEAL
-
127EG-14181-00-00 ...BODY, FLOAT CHAMBER 1...BODY, FLOAT CHAMBER 1
-
137E1-14191-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
1473A-14212-00-00 ...SPRING...SPRING
-
157LG-14185-00-00 ...FLOAT...FLOAT
-
167NM-1495F-2B-00 ...NOZZLE, MAIN...NOZZLE, MAIN
-
177G0-14227-00-00 ...WASHER...WASHER
-
187NJ-14162-00-00 ...BOLT, HOLDING...BOLT, HOLDING
-
197NJ-14211-00-00 ...SCREW, PILOT ADJUSTING...SCREW, PILOT ADJUSTING
-
207LV-14118-00-00 ...CAP...CAP
-
217LG-14150-11-00 ...NEEDLE ASSY...NEEDLE ASSY
-
227EG-14159-00-00 ......CLIP......CLIP
