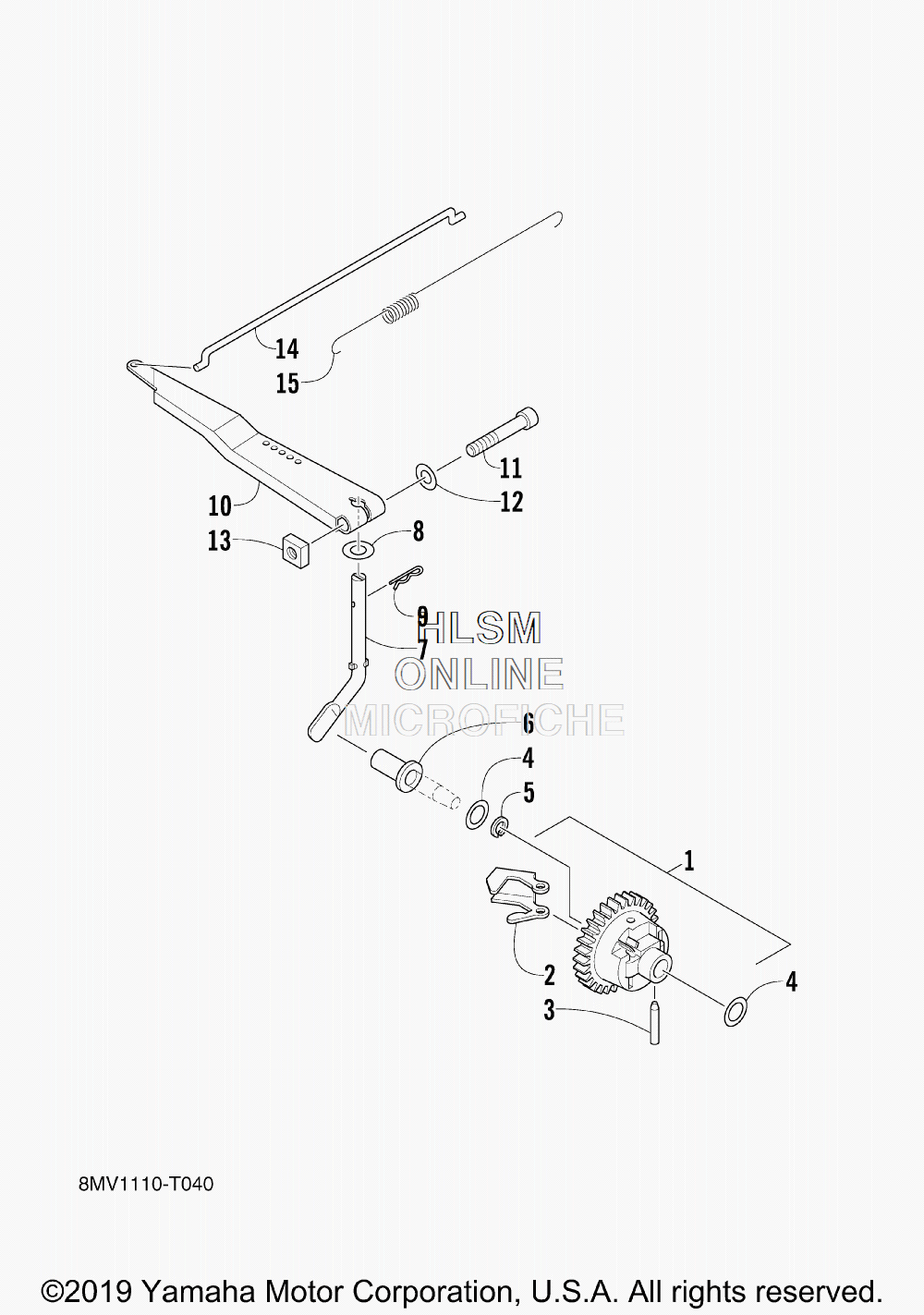

GOVERNOR для Yamaha SRX 120 R - 2019 года выпуска
-
№АртикулНазвание
-
17CN-E1970-10-00 FLYWEIGHT SHAFT ASSYFLYWEIGHT SHAFT ASSY
-
27CN-E1913-00-00 ...WEIGHT...WEIGHT
-
37CT-E1914-00-00 ...SHAFT, WEIGHT...SHAFT, WEIGHT
-
490201-06842-00 WASHER, PLATEWASHER, PLATE
-
593440-06826-00 CIRCLIPCIRCLIP
-
67CN-E1917-00-00 COLLARCOLLAR
-
77CN-E1922-00-00 FORK, GOVERNORFORK, GOVERNOR
-
892902-06200-00 WASHERWASHER
-
990468-18800-00 CLIPCLIP
-
107NJ-11924-00-00 ARM, GOVERNORARM, GOVERNOR
-
1197027-06030-00 BOLT, HEXAGONBOLT, HEXAGON
-
1292907-06600-00 WASHER, PLATEWASHER, PLATE
-
1390173-06802-00 NUT, SQUARENUT, SQUARE
-
147CN-E1928-00-00 ROD, LINKROD, LINK
-
1590506-04800-00 SPRING, TENSIONSPRING, TENSION
