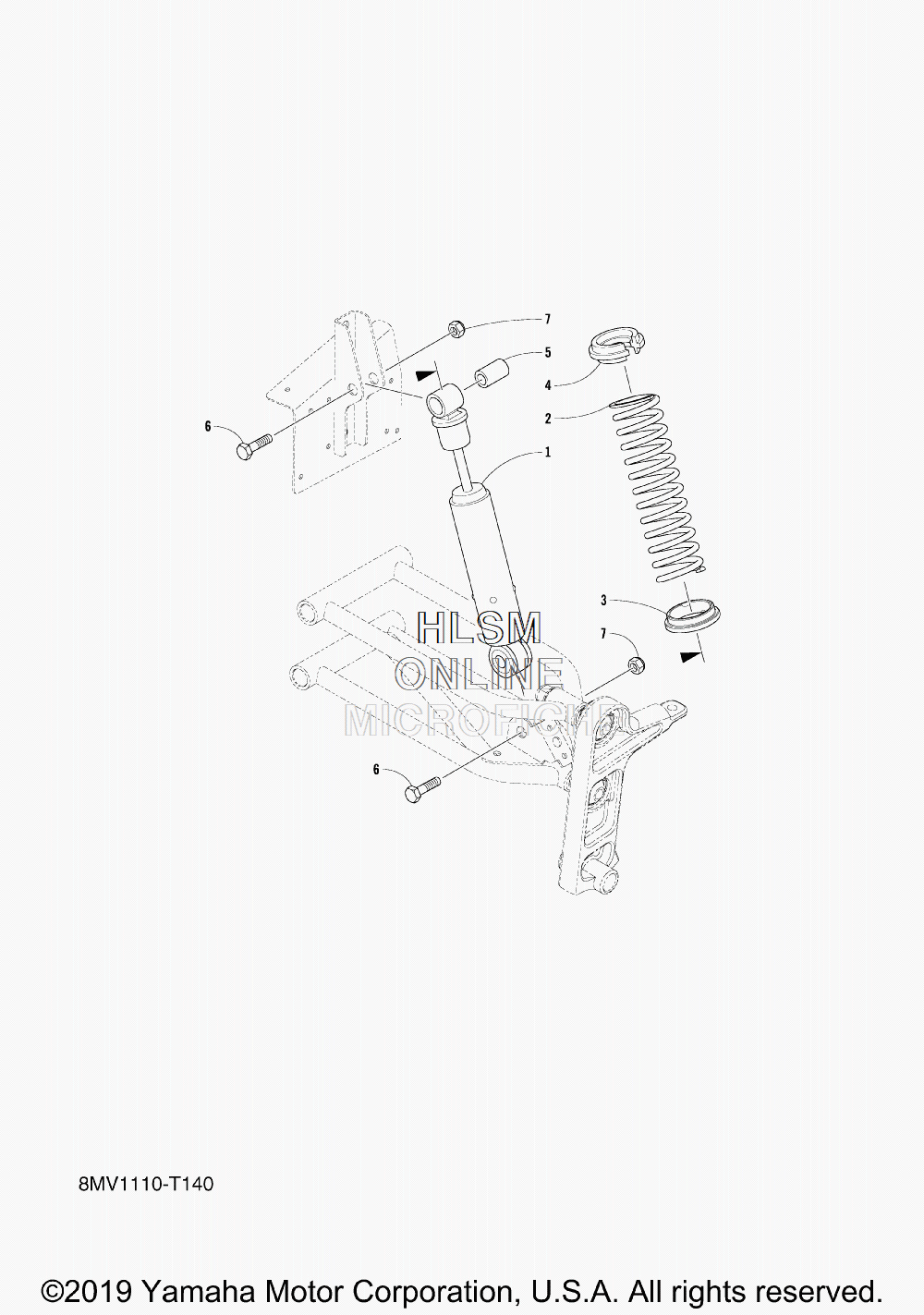

SUSPENSION - REAR ABSORBER для Yamaha SRX 120 R - 2019 года выпуска
-
№АртикулНазвание
-
18JM-F376A-00-00 ABSORBER ASSY 1ABSORBER ASSY 1
-
28MV-F3760-00-00 SPRING ASSY 1SPRING ASSY 1
-
38JM-F3777-00-00 SEAT, SPRING 2 (LOWER)SEAT, SPRING 2 (LOWER)
-
48JM-F3768-00-00 SEAT, SPRING 1 (UPPER)SEAT, SPRING 1 (UPPER)
-
58JM-RA704-00-00 COLLARCOLLAR
-
68JM-RA109-00-00 BOLT, HEXAGONBOLT, HEXAGON
-
78JM-RA305-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
