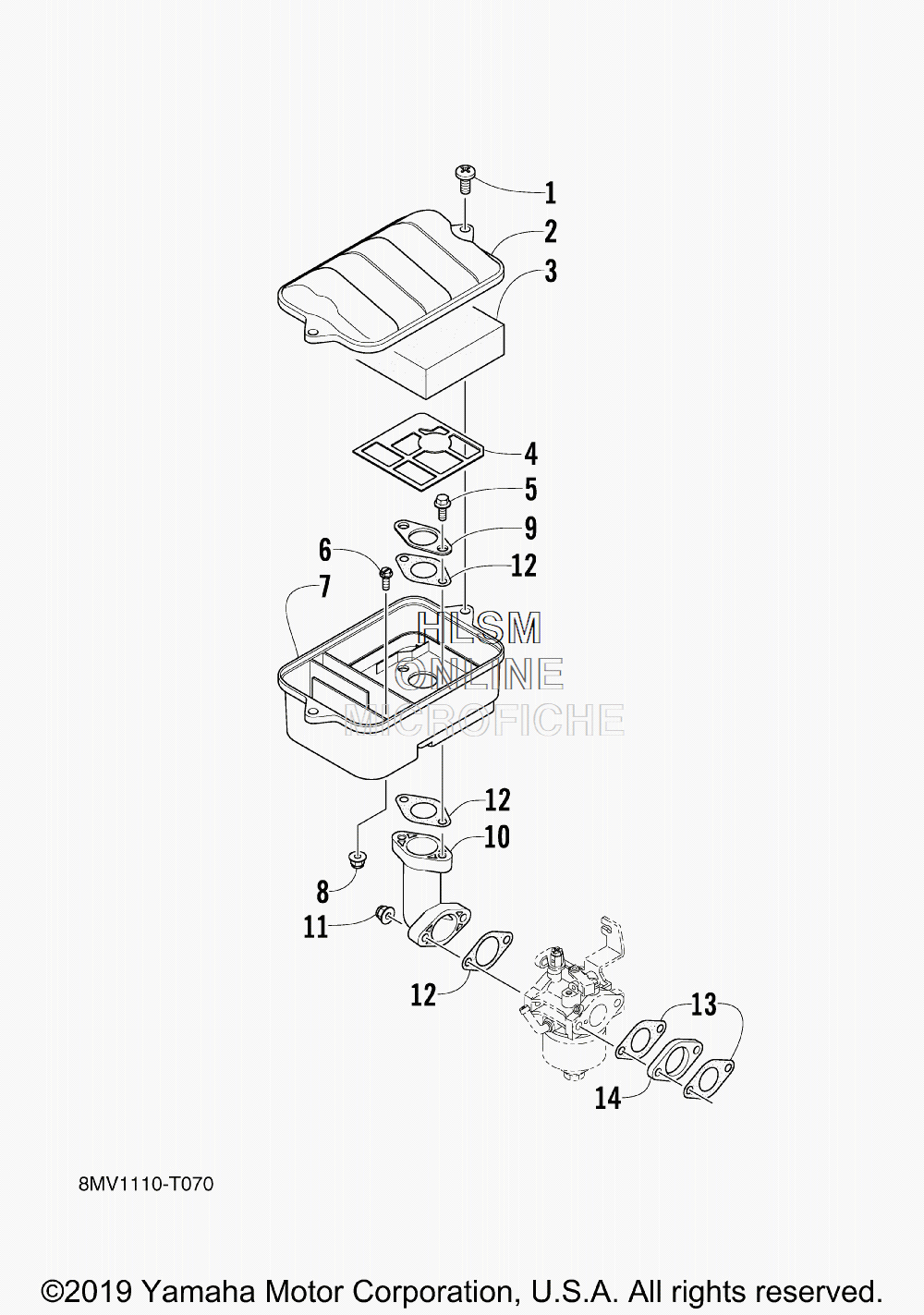

INTAKE W/ AIR BOX ASSY - FUEL PUMP для Yamaha SRX 120 R - 2019 года выпуска
-
№АртикулНазвание
-
190154-06823-00 SCREW, BINDINGSCREW, BINDING
-
27CN-E4412-00-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
37CN-E4451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
47CN-E4468-01-00 PLATE,ELEMENT FITTINGPLATE,ELEMENT FITTING
-
58JM-RA200-00-00 SCREWSCREW
-
68JM-RA102-00-00 BOLT, FLANGEBOLT, FLANGE
-
77CN-E4411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
88JM-RA301-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
97CN-E4477-00-00 PLATEPLATE
-
108JM-E3536-00-00 JOINT, CARBURETORJOINT, CARBURETOR
-
118JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
-
127CN-E3567-01-00 GASKETGASKET
-
137CL-E3557-01-00 GASKETGASKET
-
147CL-E3596-00-00 JOINT, CARBURETOR 2JOINT, CARBURETOR 2
