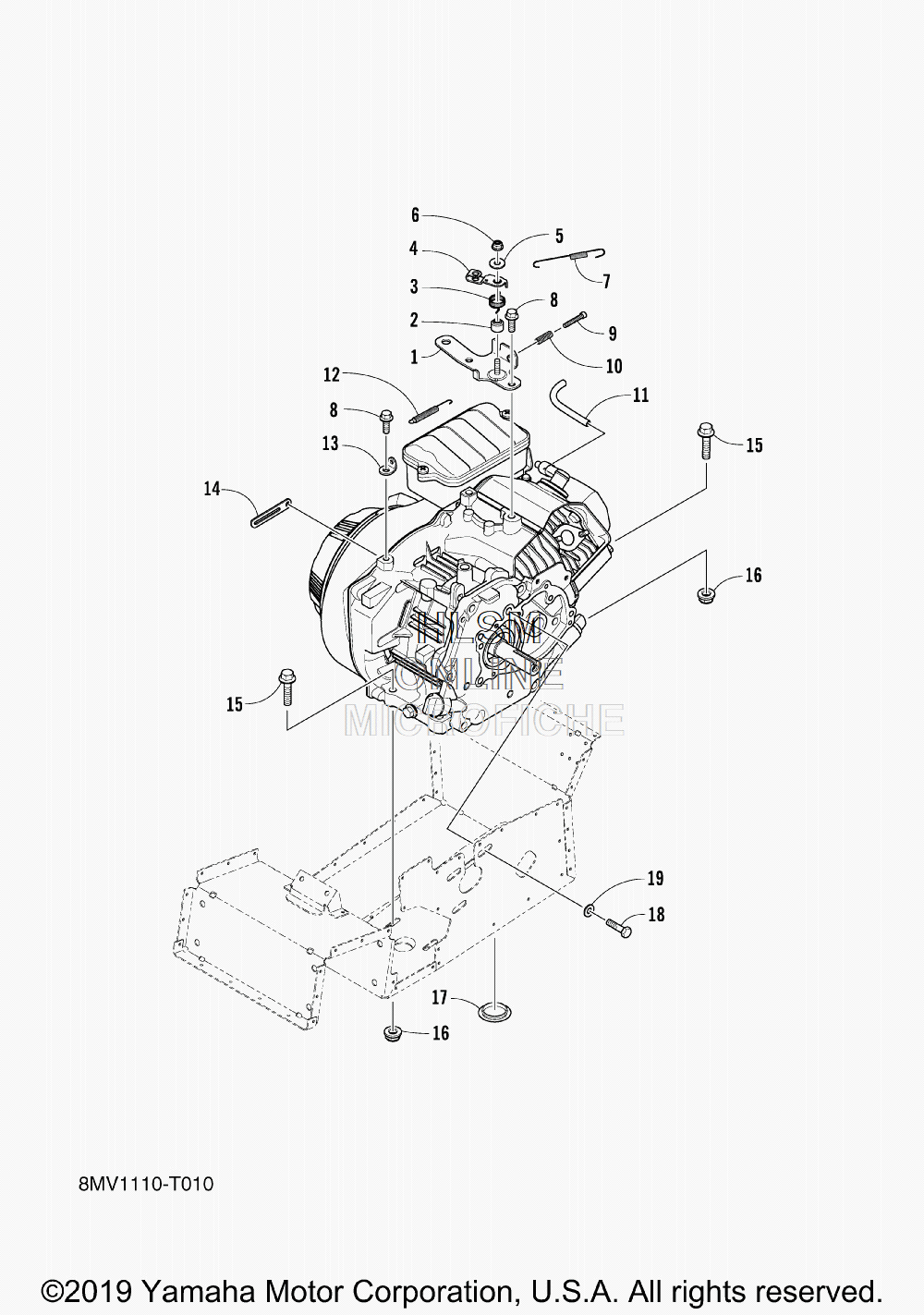

ENGINE MOUNTING для Yamaha SRX 120 R - 2019 года выпуска
-
№АртикулНазвание
-
18JM-E3733-10-00 BRACKET, THROTTLEBRACKET, THROTTLE
-
28JM-E3576-00-00 SPACERSPACER
-
38JM-RAD00-00-00 SPRING, TORSION 1SPRING, TORSION 1
-
48JM-E3726-00-00 LEVER, THROTTLELEVER, THROTTLE
-
58JM-RA400-00-00 WASHER, PLAINWASHER, PLAIN
-
68JP-RA357-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
78JM-RAD01-00-00 SPRING, TENSION 1SPRING, TENSION 1
-
88JM-RA100-00-00 BOLT, FLANGEBOLT, FLANGE
-
98JM-RA101-00-00 BOLT, HEX. SOCKETBOLT, HEX. SOCKET
-
108JM-RAD02-00-00 SPRING, COMPRESSION 1SPRING, COMPRESSION 1
-
118JM-RA900-10-00 HOSE, 10HOSE, 10
-
128JM-RAD03-00-00 SPRING, TENSION 2SPRING, TENSION 2
-
138JM-E3923-00-00 RETAINER, SPRINGRETAINER, SPRING
-
148JP-RAB22-00-00 CLAMP, 20CLAMP, 20
-
158JM-RA104-00-00 BOLT, FLANGEBOLT, FLANGE
-
168JM-RA303-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
178JM-RA602-00-00 PLUG, 3PLUG, 3
-
188JM-RA105-00-00 BOLT, HEXAGONBOLT, HEXAGON
-
198JM-RA403-00-00 WASHER, PLAINWASHER, PLAIN
