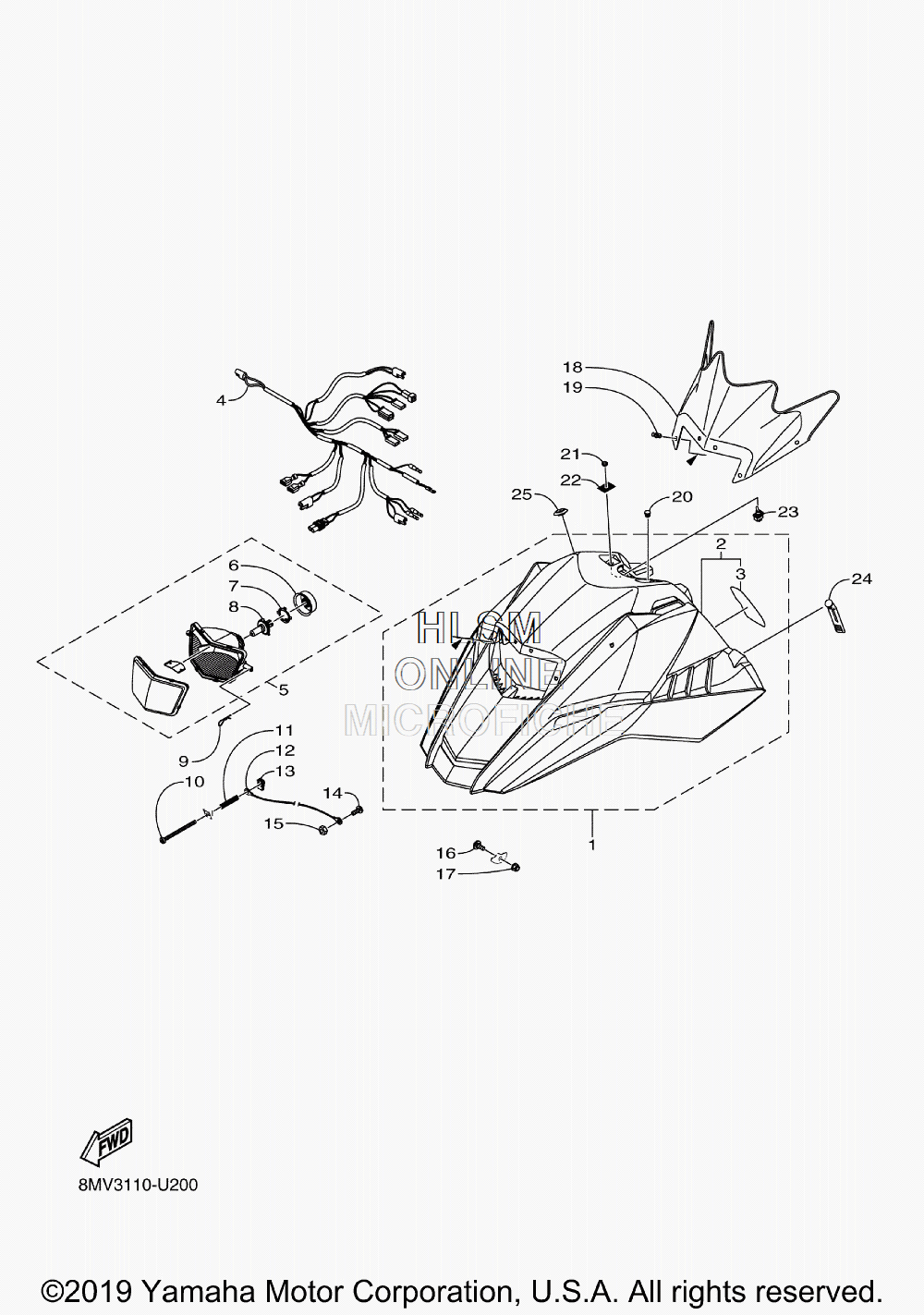

HOOD - WINDSHIELD ASSY для Yamaha SRX 120 R - 2019 года выпуска
-
№АртикулНазвание
-
18MV-RAS10-11-00 SHROUD, WITH DECALS AND LABELSSHROUD, WITH DECALS AND LABELS
-
28ML-RAS30-70-00 ...SHROUD, WITH LABELS...SHROUD, WITH LABELS
-
38MV-K7761-00-00 ......LABEL, WARNING 1......LABEL, WARNING 1
-
48MV-H2590-10-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
58MV-H4310-00-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
68MV-H4397-00-00 ...COVER, SOCKET...COVER, SOCKET
-
78JP-H4393-00-00 ...SPRING SUPPORT...SPRING SUPPORT
-
88ML-H4314-00-00 ...BULB, HEADLIGHT...BULB, HEADLIGHT
-
98MV-H4374-00-00 CLIPCLIP
-
108MV-RA210-00-00 SCREWSCREW
-
118MV-RAD07-00-00 SPRING, COMPRESSION 3SPRING, COMPRESSION 3
-
128MV-K7118-00-00 STOPPER, SHROUDSTOPPER, SHROUD
-
138JP-RA354-00-00 NUT, SPRINGNUT, SPRING
-
148JM-RA209-10-00 SCREWSCREW
-
158JM-RA319-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
168JP-RA253-00-00 SCREWSCREW
-
178MV-RA357-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
188ML-K7210-00-00 WINDSHIELD COMP.WINDSHIELD COMP.
-
198ML-RA511-01-00 RIVET, 2RIVET, 2
-
208MV-H2371-00-00 CAP, PLUGCAP, PLUG
-
218JM-RA345-00-00 NUT, 1NUT, 1
-
228MV-K7229-00-00 LABELLABEL
-
238JM-H1860-00-00 SWITCH ASSYSWITCH ASSY
-
248JM-K7171-00-00 BODY, LATCH 1BODY, LATCH 1
-
258MV-H245B-00-00 CAP 1CAP 1
