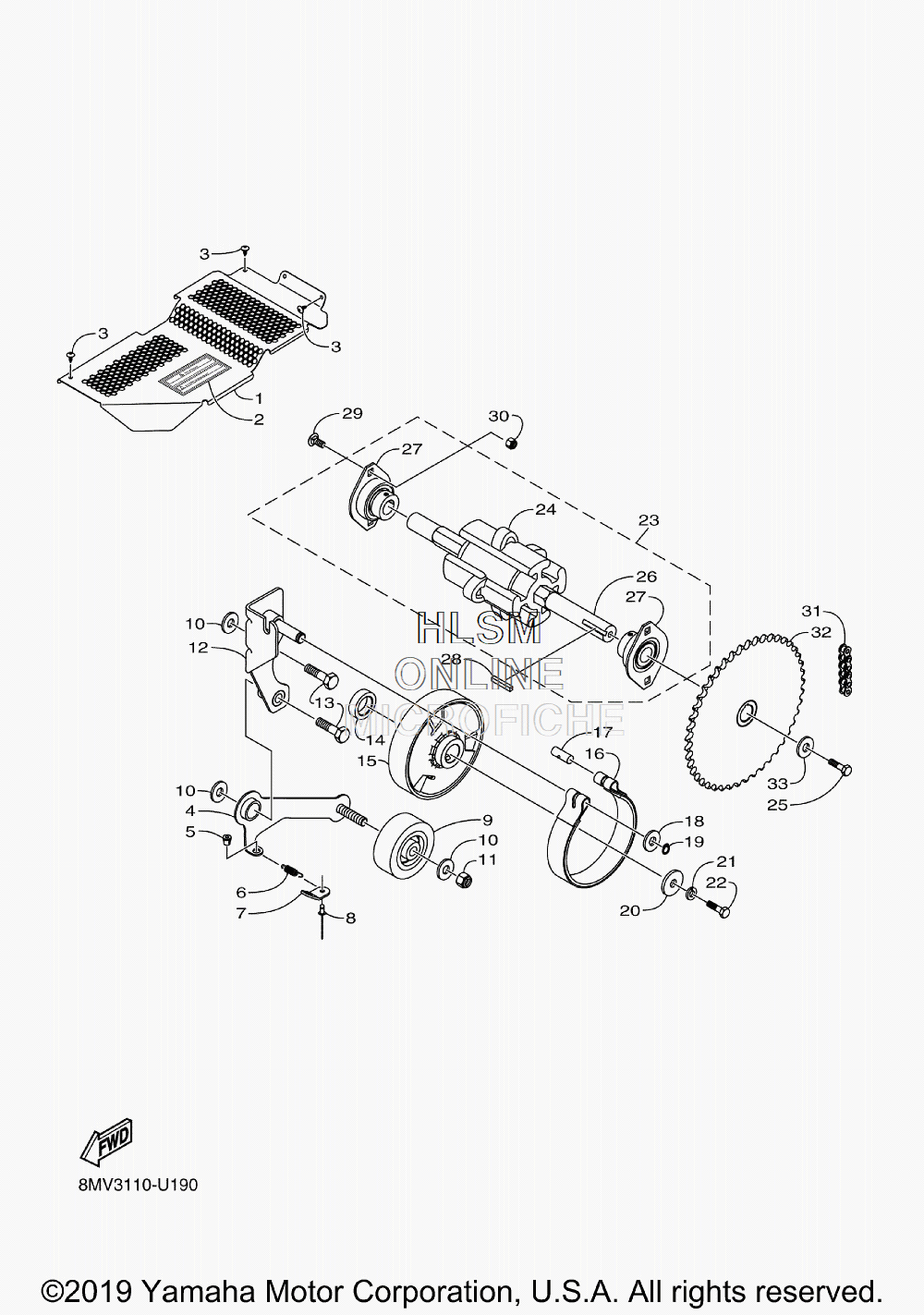

DRIVE TRAIN ASSEMBLY для Yamaha SRX 120 R - 2019 года выпуска
-
№АртикулНазвание
-
18JM-K7311-01-00 GUARD, DRIVEGUARD, DRIVE
-
28JM-K7762-00-00 LABEL, WARNING 2LABEL, WARNING 2
-
38KC-RA290-00-00 SCREWSCREW
-
48JM-G7613-10-00 HOLDERHOLDER
-
58JM-G7538-00-00 BUSHBUSH
-
68JM-RAD05-00-00 SPRING, TENSION 4SPRING, TENSION 4
-
78JM-G2148-00-00 RETAINER, SPRINGRETAINER, SPRING
-
88JP-RA514-00-00 RIVET, 5RIVET, 5
-
98JM-G7429-00-00 ROLLERROLLER
-
108JM-RA403-00-00 WASHER, PLAINWASHER, PLAIN
-
118JM-RA302-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
128JM-F5676-00-00 BRACKET, BRAKE PEDALBRACKET, BRAKE PEDAL
-
138JM-RA114-00-00 BOLT, HEXAGONBOLT, HEXAGON
-
148JM-RA700-00-00 COLLARCOLLAR
-
158JM-E760P-20-00 PRIMARY CLUTCH ASSYPRIMARY CLUTCH ASSY
-
168JM-F5719-00-00 BANDBAND
-
178JM-RAY00-00-00 PIN, 1PIN, 1
-
188JM-RA405-00-00 WASHER, PLAINWASHER, PLAIN
-
198JM-RAH00-00-00 CIRCLIP, 1CIRCLIP, 1
-
208JM-RA405-10-00 WASHER, PLAINWASHER, PLAIN
-
218JM-RA402-00-00 WASHER, SPRINGWASHER, SPRING
-
228JM-RA103-00-00 BOLT, HEXAGONBOLT, HEXAGON
-
238MV-G7501-00-00 FRONT AXLE SUB-ASSYFRONT AXLE SUB-ASSY
-
248MV-G7531-00-00 ...WHEEL, SPROCKET 1...WHEEL, SPROCKET 1
-
258MV-RA112-00-00 BOLT, FLANGEBOLT, FLANGE
-
268JM-G7511-00-00 ...AXLE, FRONT (IN 23)...AXLE, FRONT (IN 23)
-
278JM-RAY01-00-00 ...BEARING, 1 (IN 23)...BEARING, 1 (IN 23)
-
288JM-G7733-10-00 KEY,DRIVEKEY,DRIVE
-
298JM-RA123-00-00 BOLTBOLT
-
308JM-RA303-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
318JM-E6139-00-00 CHAIN, PRIMARYCHAIN, PRIMARY
-
328JM-G7587-20-00 SPROCKET, CHAIN DRIVENSPROCKET, CHAIN DRIVEN
-
338JM-RA404-00-00 WASHER, PLAINWASHER, PLAIN
