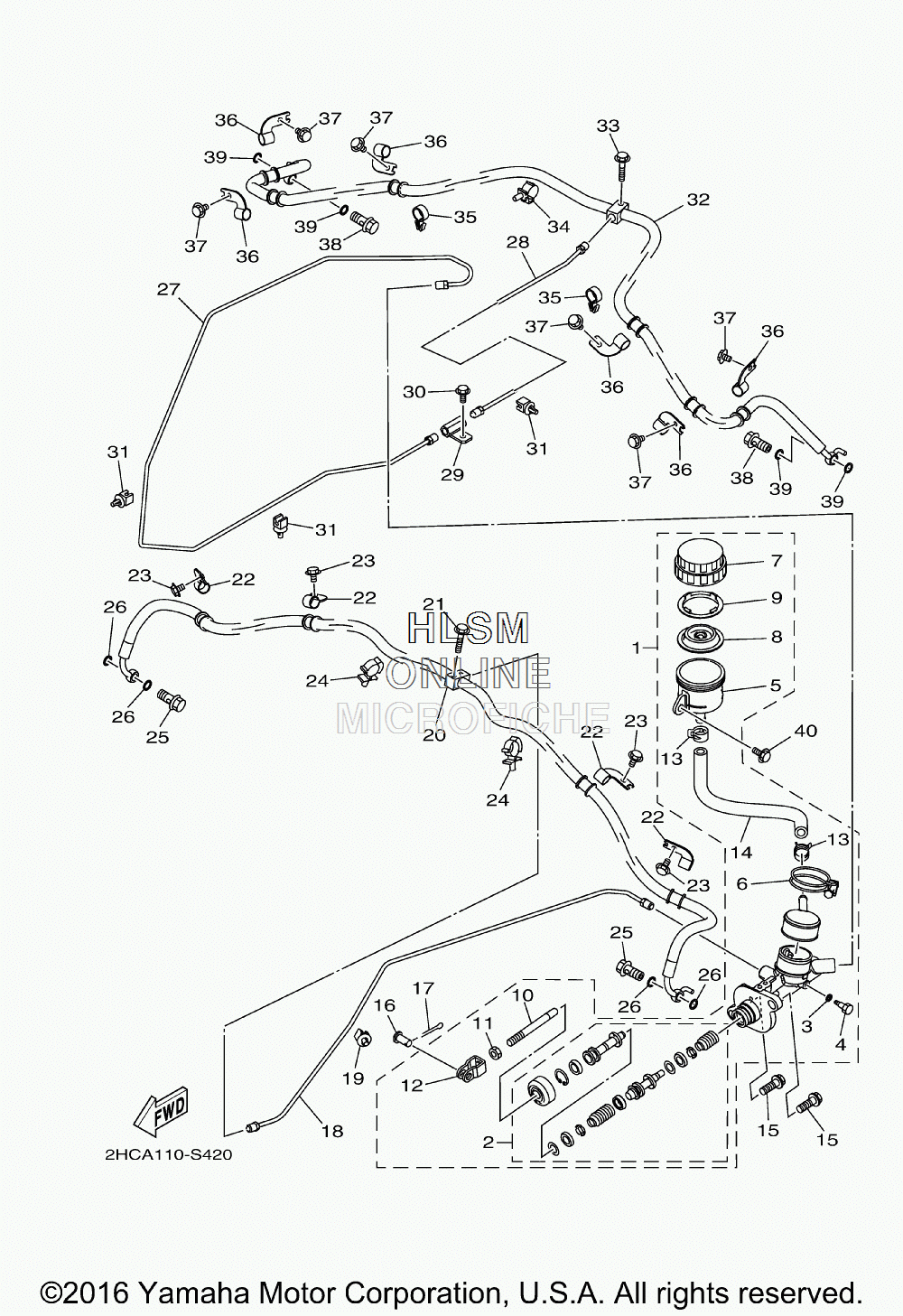

BRAKE - MASTER CYLINDER для Yamaha YXZ1000R EPS SS - 2017 года выпуска
-
№АртикулНазвание
-
12HC-2583T-10-00 MASTER CYLINDER ASSYMASTER CYLINDER ASSY
-
25UG-25808-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
35UG-25878-00-00 ...WASHER, OIL BOLT...WASHER, OIL BOLT
-
45UG-25877-00-00 ...BOLT, OIL 1...BOLT, OIL 1
-
52HC-25894-00-00 ...TANK, RESERVOIR...TANK, RESERVOIR
-
65UG-25719-00-00 ...BAND...BAND
-
75UG-25852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
85UG-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
95UG-25855-00-00 ...BUSH,DIAPHRAGM...BUSH,DIAPHRAGM
-
105UG-25880-00-00 ...PUSH ROD COMP....PUSH ROD COMP.
-
114SS-27218-00-00 ...NUT...NUT
-
122HC-27222-00-00 ...JOINT...JOINT
-
132HC-24519-00-00 ...CLIP...CLIP
-
142HC-2589E-00-00 ...HOSE...HOSE
-
1590105-08129-00 BOLT, FLANGEBOLT, FLANGE
-
1690240-08005-00 PIN, CLEVISPIN, CLEVIS
-
1791402-20020-00 PIN, COTTERPIN, COTTER
-
182HC-F5882-00-00 PIPE, BRAKE 2PIPE, BRAKE 2
-
192HC-81677-00-00 CLAMP 1CLAMP 1
-
202HC-F5872-01-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
2190105-06833-00 BOLT, FLANGEBOLT, FLANGE
-
223B4-25876-10-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
2395812-06010-00 BOLT, FLANGEBOLT, FLANGE
-
2490464-18011-00 CLAMPCLAMP
-
2590401-10015-00 BOLT, UNIONBOLT, UNION
-
2690201-10118-00 WASHER, PLATEWASHER, PLATE
-
272HC-F5871-00-00 PIPE, BRAKEPIPE, BRAKE
-
282HC-F5883-00-00 PIPE, BRAKE 3PIPE, BRAKE 3
-
29JX2-25885-11-00 JOINTJOINT
-
3090105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
312HC-81677-00-00 CLAMP 1CLAMP 1
-
322HC-F5873-02-00 HOSE, BRAKE 2HOSE, BRAKE 2
-
3390105-06833-00 BOLT, FLANGEBOLT, FLANGE
-
3490464-16012-00 CLAMPCLAMP
-
3590464-19815-00 CLAMPCLAMP
-
363B4-25876-10-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
3795812-06010-00 BOLT, FLANGEBOLT, FLANGE
-
3890401-10015-00 BOLT, UNIONBOLT, UNION
-
3990201-10118-00 WASHER, PLATEWASHER, PLATE
-
4090119-06137-00 BOLT, WITH WASHERBOLT, WITH WASHER
