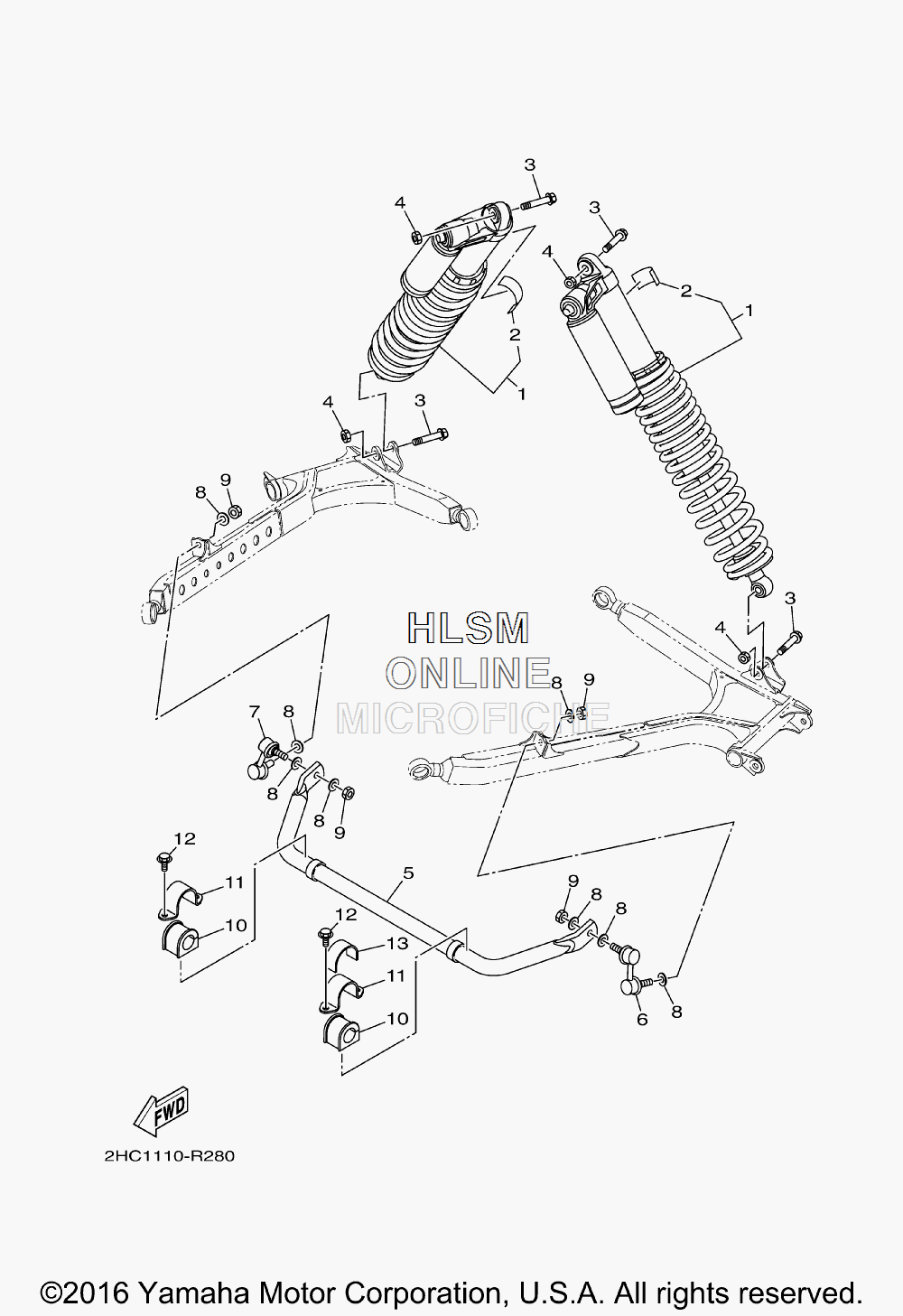

SUSPENSION - REAR SHOCK ABSORBER для Yamaha YXZ1000R EPS SS - 2017 года выпуска`
-
№АртикулНазвание
-
12HC-F2200-00-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
21HP-F2259-01-00 ...LABEL, WARNING...LABEL, WARNING
-
390105-12051-00 BOLT, FLANGEBOLT, FLANGE
-
490185-12007-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
52HC-G7491-10-00 BAR, STABILIZERBAR, STABILIZER
-
62HC-2385L-00-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
72HC-2385M-00-00 JOINT, STABILIZER 2JOINT, STABILIZER 2
-
890201-12045-00 WASHER, PLATEWASHER, PLATE
-
990185-12007-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
102HC-F386G-01-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
112HC-F386H-00-00 COVER, STABILIZER FRONTCOVER, STABILIZER FRONT
-
1295812-10020-00 BOLT, FLANGEBOLT, FLANGE
-
132HC-23421-00-00 PLATE, DAMPER 1PLATE, DAMPER 1
