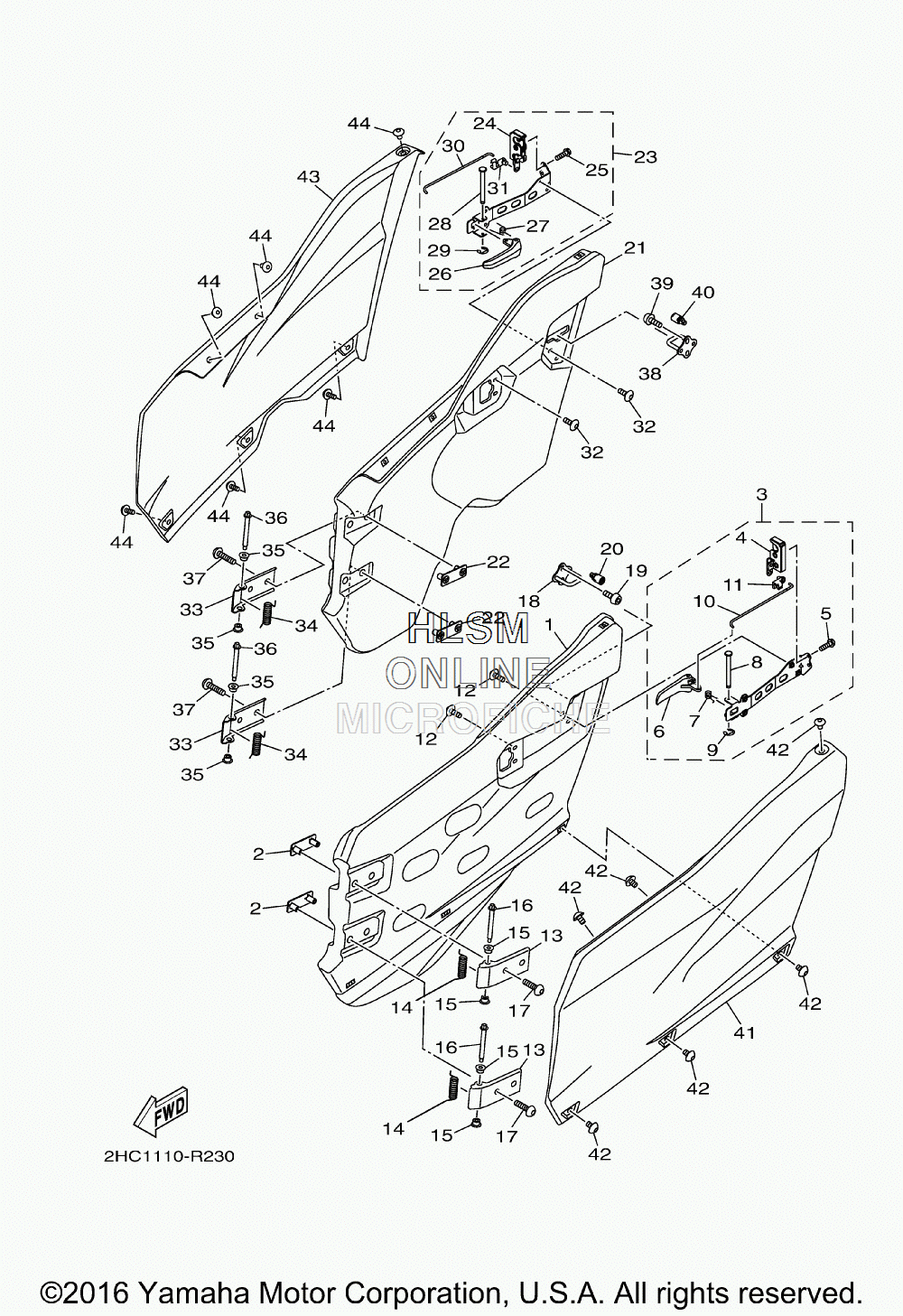

SIDE COVER 3 для Yamaha YXZ1000R EPS SS - 2017 года выпуска
-
№АртикулНазвание
-
12HC-K8557-00-00 PNL., DOOR FR. LHPNL., DOOR FR. LH
-
22HC-F1736-00-00 NUT,PLATENUT,PLATE
-
32HC-K7171-00-00 BODY, LATCH 1BODY, LATCH 1
-
42HC-F16A0-00-00 ...LOCK ASSY...LOCK ASSY
-
595812-06020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
62HC-F17N1-00-00 ...LEVER, LATCH 1...LEVER, LATCH 1
-
72HC-F1742-00-00 ...SPRING...SPRING
-
890249-05801-00 ...PIN...PIN
-
999002-04600-00 ...CIRCLIP...CIRCLIP
-
102HC-F7247-00-00 ...ROD 1...ROD 1
-
112HC-F2805-00-00 ...CLIP, CABLE...CLIP, CABLE
-
1290111-06086-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
132HC-K8554-00-00 STAY, FR. DOOR 1STAY, FR. DOOR 1
-
142HC-F463G-01-00 SPRG., HINGESPRG., HINGE
-
152HC-F1748-00-00 COLLARCOLLAR
-
1690109-068A8-00 BOLTBOLT
-
1790109-08856-00 BOLTBOLT
-
182HC-F178J-00-00 LOCKLOCK
-
1992012-08012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
202MB-F8378-00-00 PADPAD
-
212HC-K8558-00-00 PNL., DOOR FR. RIGHTPNL., DOOR FR. RIGHT
-
222HC-F1736-00-00 NUT,PLATENUT,PLATE
-
232HC-K7172-00-00 BODY, LATCH 2BODY, LATCH 2
-
242HC-F16B0-00-00 ...LOCK ASSY 2...LOCK ASSY 2
-
2595812-06020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
262HC-F17N1-00-00 ...LEVER, LATCH 1...LEVER, LATCH 1
-
272HC-F1742-00-00 ...SPRING...SPRING
-
2890249-05801-00 ...PIN...PIN
-
2999002-04600-00 ...CIRCLIP...CIRCLIP
-
302HC-F7248-00-00 ...ROD 2...ROD 2
-
312HC-F2805-00-00 ...CLIP, CABLE...CLIP, CABLE
-
3290111-06086-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
332HC-K8554-00-00 STAY, FR. DOOR 1STAY, FR. DOOR 1
-
342HC-F463G-01-00 SPRG., HINGESPRG., HINGE
-
352HC-F1748-00-00 COLLARCOLLAR
-
3690109-068A8-00 BOLTBOLT
-
3790109-08856-00 BOLTBOLT
-
382HC-F178J-00-00 LOCKLOCK
-
3992012-08012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
402MB-F8378-00-00 PADPAD
-
412HC-F1711-10-00 COVER, SIDE 1 (VYRS4 - YELLOWISH RED)COVER, SIDE 1 (VYRS4 - YELLOWISH RED)
-
412HC-F1711-00-00 COVER, SIDE 1 (DPBSE - PURPLISH BLUE)COVER, SIDE 1 (DPBSE - PURPLISH BLUE)
-
4290110-06102-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
432HC-F1721-00-00 COVER, SIDE 2 (DPBSE - PURPLISH BLUE)COVER, SIDE 2 (DPBSE - PURPLISH BLUE)
-
432HC-F1721-10-00 COVER, SIDE 2 (VYRS4 - YELLOWISH RED)COVER, SIDE 2 (VYRS4 - YELLOWISH RED)
-
4490110-06102-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
