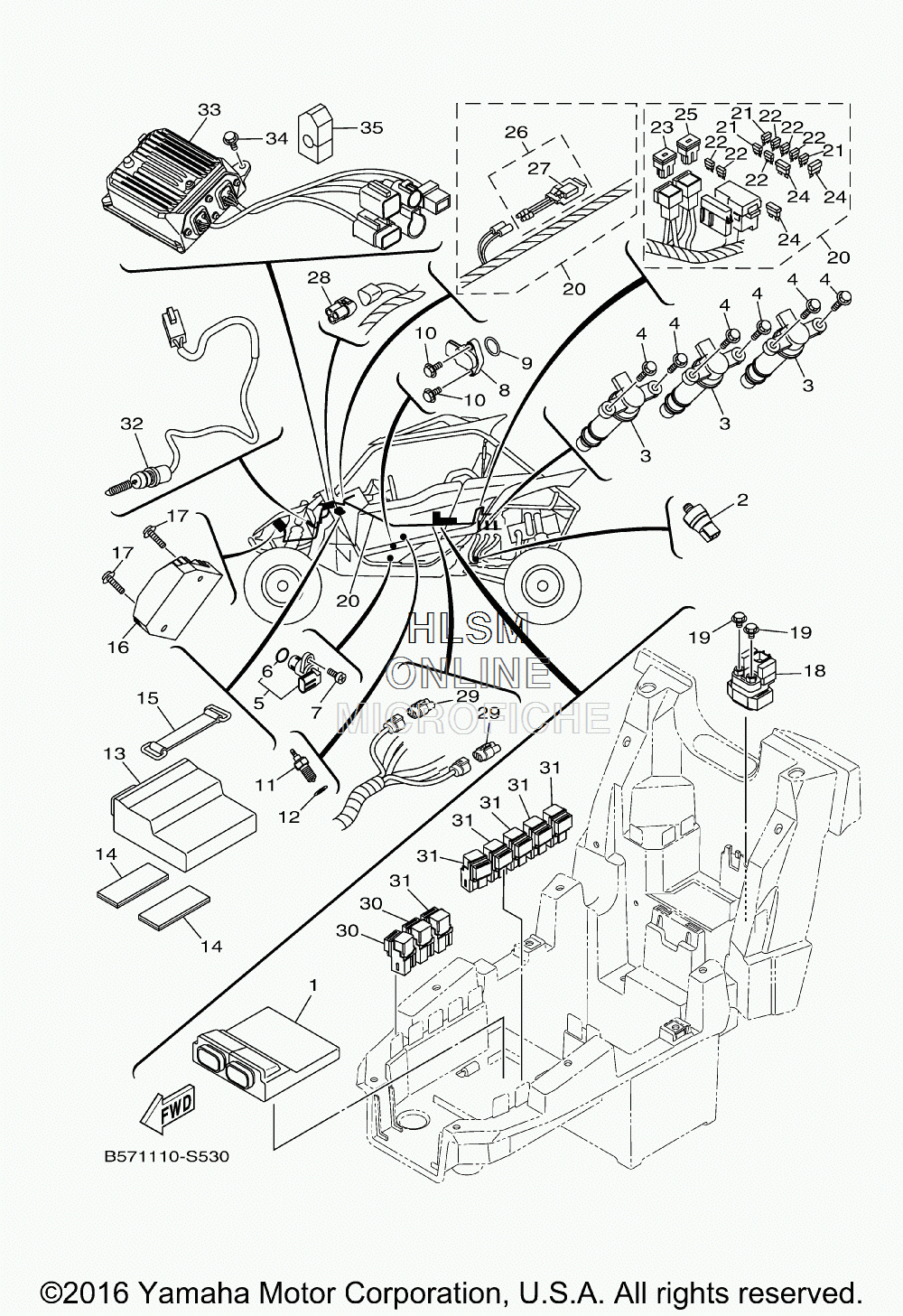

ELECTRICAL для Yamaha YXZ1000R EPS SS - 2017 года выпуска
-
№АртикулНазвание
-
1B57-8591A-00-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
28FP-82504-00-00 OIL PRESSURE SWITCH ASSYOIL PRESSURE SWITCH ASSY
-
32HC-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
495812-06025-00 BOLT, FLANGEBOLT, FLANGE
-
51TP-83755-00-00 SENSOR, SPEEDSENSOR, SPEED
-
64D9-81168-00-00 ...O-RING...O-RING
-
790110-06193-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
82HC-85899-10-00 SENSOR, GEAR POSITIONSENSOR, GEAR POSITION
-
993210-17008-00 O-RINGO-RING
-
1090110-05067-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
113GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
1290430-10148-00 GASKETGASKET
-
13B57-86510-00-00 MOTOR CONTROL UNIT ASSYMOTOR CONTROL UNIT ASSY
-
1434D-82176-00-00 DAMPERDAMPER
-
152T4-82131-00-00 BAND, BATTERYBAND, BATTERY
-
161D7-81960-01-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
1790105-06833-00 BOLT, FLANGEBOLT, FLANGE
-
184D3-81940-00-00 STARTER RELAY ASSY (RC19-077A)STARTER RELAY ASSY (RC19-077A)
-
1995022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
20B57-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
215JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
225JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
235PS-82151-00-00 ...FUSE (40A)...FUSE (40A)
-
245JJ-82151-60-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
255JW-82151-10-00 ...FUSE (50A)...FUSE (50A)
-
265B4-82180-00-00 ...CIRCUIT BREAKER ASSY...CIRCUIT BREAKER ASSY
-
275B4-82560-00-00 ......THERMO SWITCH ASSY......THERMO SWITCH ASSY
-
288CR-82378-00-00 CONNECTORCONNECTOR
-
29B57-82378-00-00 CONNECTORCONNECTOR
-
305DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
318DM-81950-11-00 RELAY ASSY (8DM-11)RELAY ASSY (8DM-11)
-
324KB-82530-10-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
332HC-859A0-10-00 POWER STRG. CONT. UNIT ASSYPOWER STRG. CONT. UNIT ASSY
-
3495812-06016-00 BOLT, FLANGEBOLT, FLANGE
-
352HC-H257L-00-00 PLATE, INSULATORPLATE, INSULATOR
