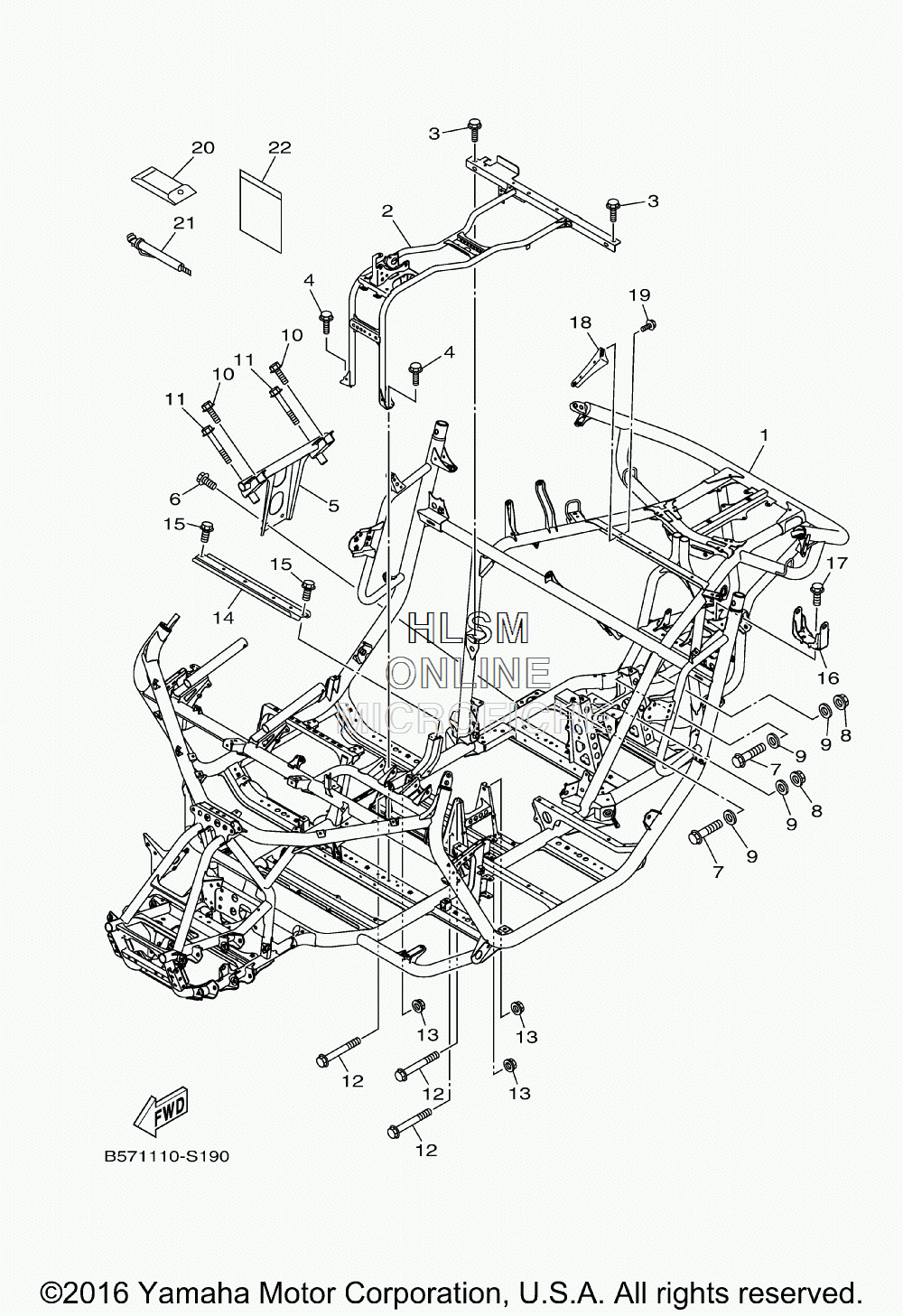

FRAME для Yamaha YXZ1000R EPS SS - 2017 года выпуска
-
№АртикулНазвание
-
12HC-F1110-21-00 FRAME COMP. (DPBSE - PURPLISH BLUE)FRAME COMP. (DPBSE - PURPLISH BLUE)
-
12HC-F1110-01-00 FRAME COMP. (VYRS4 - YELLOWISH RED)FRAME COMP. (VYRS4 - YELLOWISH RED)
-
2B57-F111B-00-00 FRAME SUB COMP.FRAME SUB COMP.
-
395812-08016-00 BOLT, FLANGEBOLT, FLANGE
-
490105-08867-00 BOLT, FLANGEBOLT, FLANGE
-
52HC-F110A-00-00 ENG. MOUNT COMP. (VYRS4 - YELLOWISH RED)ENG. MOUNT COMP. (VYRS4 - YELLOWISH RED)
-
52HC-F110A-20-00 ENG. MOUNT COMP. (DPBSE - PURPLISH BLUE)ENG. MOUNT COMP. (DPBSE - PURPLISH BLUE)
-
695812-10016-00 BOLT, FLANGEBOLT, FLANGE
-
795812-12070-00 BOLT, FLANGEBOLT, FLANGE
-
890185-12002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
992902-12200-00 WASHERWASHER
-
1095812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
1195812-08055-00 BOLT, FLANGEBOLT, FLANGE
-
1290105-10176-00 BOLT, FLANGEBOLT, FLANGE
-
1395602-10200-00 NUT, U FLANGENUT, U FLANGE
-
142HC-F1349-00-00 BRACKET, SEATBRACKET, SEAT
-
1595812-08025-00 BOLT, FLANGEBOLT, FLANGE
-
162HC-F194J-00-00 STAY, MUFFLERSTAY, MUFFLER
-
1795812-10016-00 BOLT, FLANGEBOLT, FLANGE
-
182HC-F115C-01-00 BRKTBRKT
-
1995812-06016-00 BOLT, FLANGEBOLT, FLANGE
-
205B4-F8100-00-00 TOOL KITTOOL KIT
-
211XD-F811A-00-00 GAUGE, AIRGAUGE, AIR
-
221P0-F8186-01-00 POUCHPOUCH
