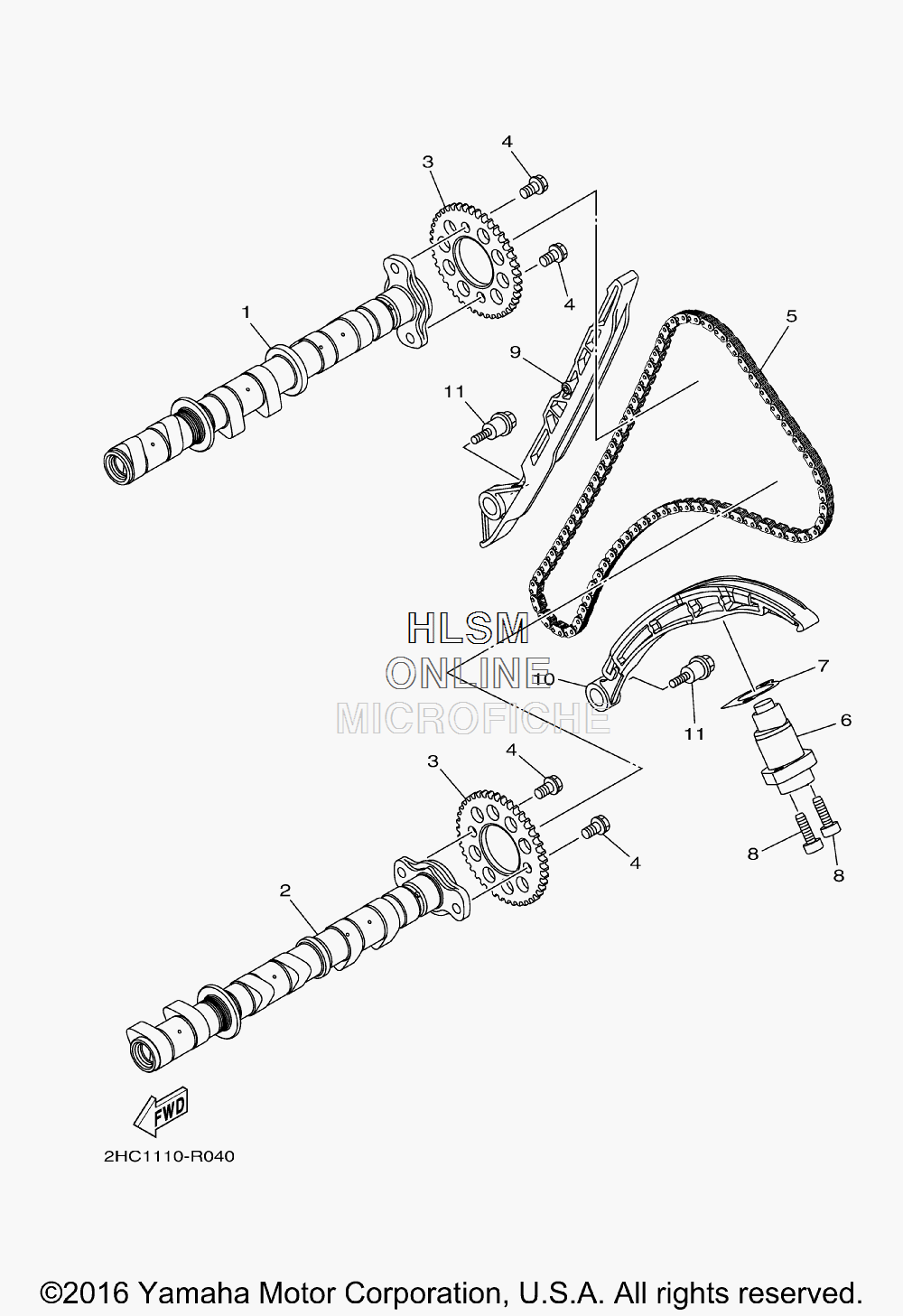

CAMSHAFT W/ CHAIN для Yamaha YXZ1000R EPS SS - 2017 года выпуска
-
№АртикулНазвание
-
12HC-12170-00-00 CAMSHAFT ASSY 1CAMSHAFT ASSY 1
-
22HC-12180-00-00 CAMSHAFT ASSY 2CAMSHAFT ASSY 2
-
32HC-12176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
490105-07004-00 BOLT, FLANGEBOLT, FLANGE
-
594591-57140-00 CHAIN (98RH2010-140M)CHAIN (98RH2010-140M)
-
62HC-12210-00-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
72C0-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
890110-06335-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
98GL-12251-01-00 DAMPER, CHAIN 1DAMPER, CHAIN 1
-
102HC-12252-00-00 DAMPER, CHAIN 2DAMPER, CHAIN 2
-
1190109-06295-00 BOLTBOLT
