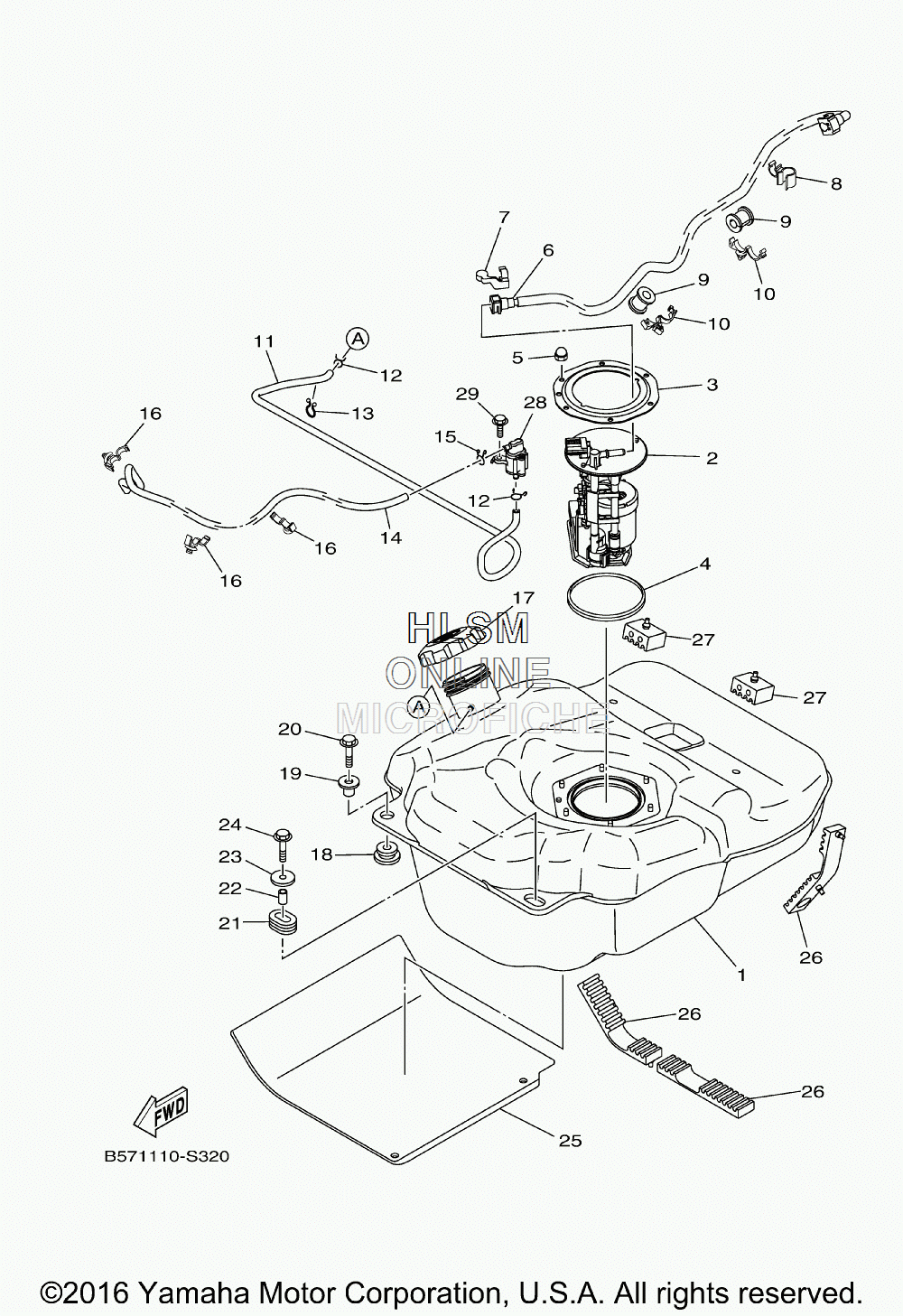

FUEL TANK для Yamaha YXZ1000R EPS SS - 2017 года выпуска
-
№АртикулНазвание
-
12HC-F4110-00-00 FUEL TANK COMP.FUEL TANK COMP.
-
2B16-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
33B4-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
41S3-24486-00-00 O-RINGO-RING
-
595302-06800-00 NUT, CROWNNUT, CROWN
-
62HC-13971-01-00 PIPE, FUEL 1PIPE, FUEL 1
-
790464-14004-00 CLAMPCLAMP
-
890464-15007-00 CLAMPCLAMP
-
990480-20543-00 GROMMETGROMMET
-
1090464-20010-00 CLAMPCLAMP
-
11B57-F4314-00-00 PIPE 4PIPE 4
-
1290467-09006-00 CLIPCLIP
-
1390464-12M48-00 CLAMPCLAMP
-
1490445-09831-00 HOSE (L1125)HOSE (L1125)
-
1590467-09006-00 CLIPCLIP
-
1690464-12830-00 CLAMP (D: 12MM)CLAMP (D: 12MM)
-
172P5-24610-00-00 CAP ASSYCAP ASSY
-
1890480-18016-00 GROMMETGROMMET
-
1990387-07021-00 COLLARCOLLAR
-
2095802-06030-00 BOLT, FLANGEBOLT, FLANGE
-
2190480-01400-00 GROMMETGROMMET
-
2290387-061V1-00 COLLARCOLLAR
-
2390201-065G8-00 WASHER, PLATEWASHER, PLATE
-
2495802-06030-00 BOLT, FLANGEBOLT, FLANGE
-
252HC-F414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
262HC-F4181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
272MB-F4182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
2828P-24380-00-00 PIPE JOINT ASSYPIPE JOINT ASSY
-
2995022-06016-00 BOLT, FLANGEBOLT, FLANGE
