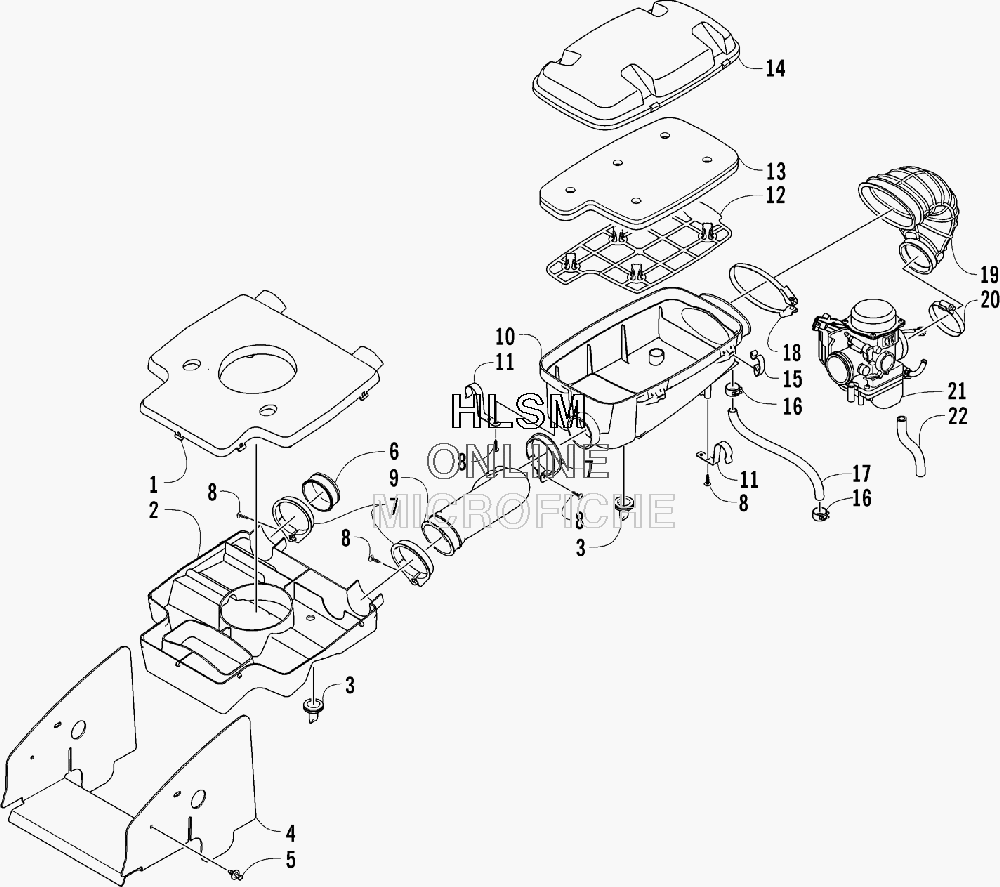

AIR INTAKE ASSEMBLY для Arctic Cat 400 MAN (GREEN) [A2008ICH4AUSG] - 2008 года выпуска
-
№АртикулНазвание
-
10413-091 DIVERTER, AIR - TOPDIVERTER, AIR - TOP
-
20413-093 DIVERTER, AIR - BOTTOMDIVERTER, AIR - BOTTOM
-
30470-442 VALVE, DRAINVALVE, DRAIN
-
42406-013 SHROUD, SPLASHSHROUD, SPLASH
-
50623-362 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
60413-096 CAP, AIR DIVERTERCAP, AIR DIVERTER
-
70423-551 CLAMP, BOOTCLAMP, BOOT
-
80423-342 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
90470-529 BOOT, AIR INTAKEBOOT, AIR INTAKE
-
100470-540 HOUSING, AIR INTAKEHOUSING, AIR INTAKE
-
110423-454 CLIP, MOUNTING - AIR INTAKECLIP, MOUNTING - AIR INTAKE
-
120470-516 SCREEN, AIR FILTERSCREEN, AIR FILTER
-
130470-663 FILTER, AIRFILTER, AIR
-
140470-755 COVER, AIR INTAKECOVER, AIR INTAKE
-
150423-455 CLIP, SPRINGCLIP, SPRING
-
160423-045 CLAMP, HOSECLAMP, HOSE
-
170410-087 HOSE, VENT - CRANKCASEHOSE, VENT - CRANKCASE
-
180423-554 CLAMP, BOOTCLAMP, BOOT
-
190470-517 BOOT, CARBURETORBOOT, CARBURETOR
-
200423-019 CLAMP, BOOTCLAMP, BOOT
-
210470-738 CARBURETOR, CVK34-AECARBURETOR, CVK34-AE
-
220510-592 HOSE, CARBURETOR DRAINHOSE, CARBURETOR DRAIN
