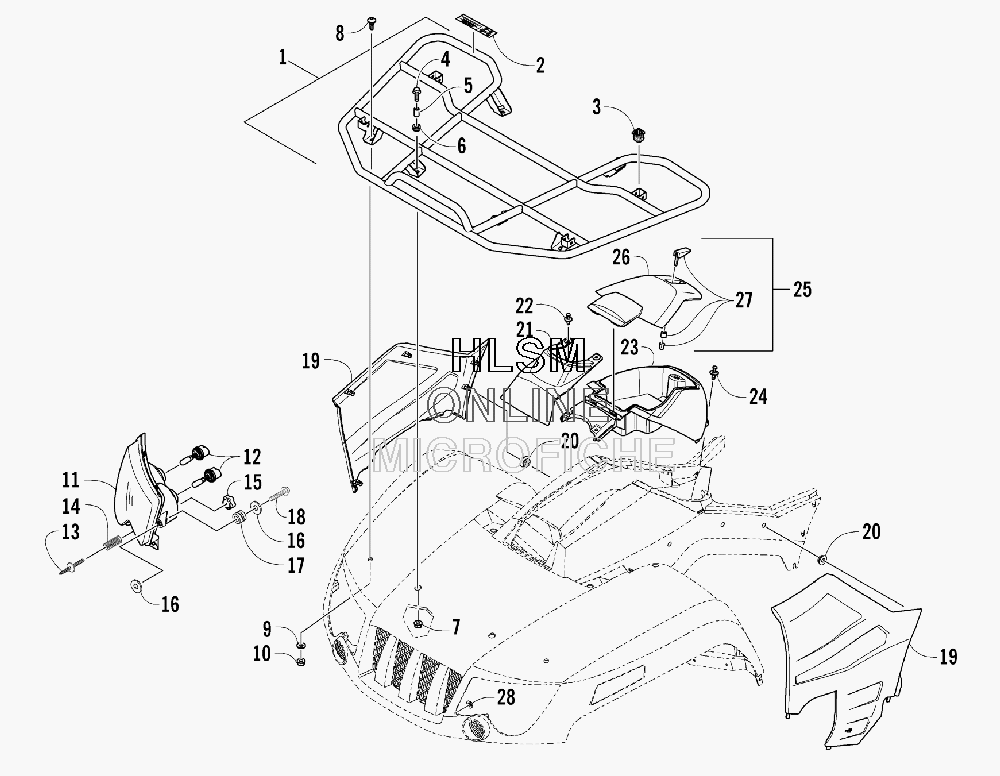

FRONT RACK AND HEADLIGHT ASSEMBLIES для Arctic Cat 400 MAN (GREEN) [A2008ICH4AUSG] - 2008 года выпуска
-
№АртикулНазвание
-
12506-107 RACK - FRONT - ASSEMBLY (INC. 2-3)RACK - FRONT - ASSEMBLY (INC. 2-3)
-
20411-576 ...DECAL, WARNING - FRONT RACK LOAD (100 LB.)...DECAL, WARNING - FRONT RACK LOAD (100 LB.)
-
30441-592 ...BUSHING, RACK...BUSHING, RACK
-
48410-830 SCREW, CAPSCREW, CAP
-
50423-669 SPACERSPACER
-
60423-465 GROMMETGROMMET
-
78432-802 NUT, LOCKNUT, LOCK
-
80423-654 SCREW, SHOULDERSCREW, SHOULDER
-
98050-222 WASHERWASHER
-
100423-540 NUT, LOCKNUT, LOCK
-
110509-027 HEADLIGHT ASSEMBLY - RIGHT (INC. 12)HEADLIGHT ASSEMBLY - RIGHT (INC. 12)
-
110509-028 HEADLIGHT ASSEMBLY - LEFT (INC. 12)HEADLIGHT ASSEMBLY - LEFT (INC. 12)
-
120409-073 ...BULB, HEADLIGHT...BULB, HEADLIGHT
-
130423-514 STUD, ADJUSTER - HEADLIGHTSTUD, ADJUSTER - HEADLIGHT
-
140423-522 SPRING, ADJUSTER - HEADLIGHTSPRING, ADJUSTER - HEADLIGHT
-
150423-513 KNOB, ADJUSTER - HEADLIGHTKNOB, ADJUSTER - HEADLIGHT
-
168050-217 WASHERWASHER
-
170423-447 GROMMETGROMMET
-
180623-785 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
192406-378 PANEL, SIDE - RIGHTPANEL, SIDE - RIGHT
-
192406-379 PANEL, SIDE - LEFTPANEL, SIDE - LEFT
-
200423-678 GROMMETGROMMET
-
211406-970 COVER, STEERING POSTCOVER, STEERING POST
-
220623-362 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
231406-947 BOX, STORAGEBOX, STORAGE
-
240623-544 PLUGPLUG
-
252506-235 COVER, STORAGE BOX W/LATCH (INC. 26-27)COVER, STORAGE BOX W/LATCH (INC. 26-27)
-
261406-862 ...COVER, STORAGE BOX...COVER, STORAGE BOX
-
271406-599 ...LATCH, STORAGE BOX...LATCH, STORAGE BOX
-
280423-357 NUT, STAMPEDNUT, STAMPED
