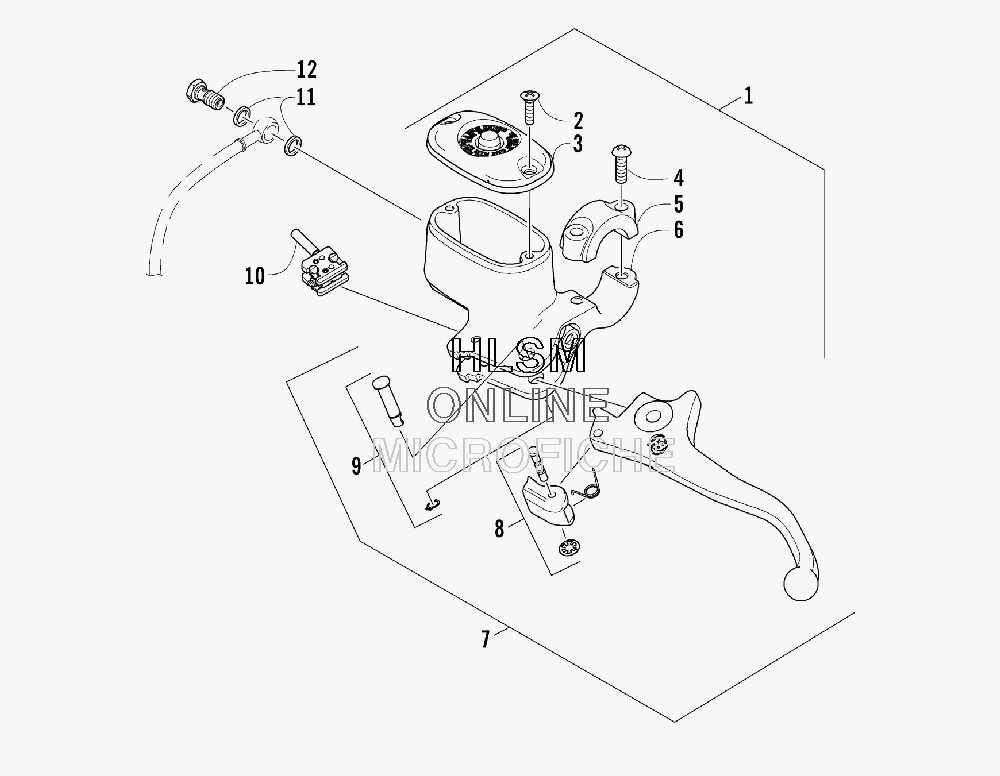

HYDRAULIC HAND BRAKE ASSEMBLY для Arctic Cat 400 MAN (GREEN) [A2008ICH4AUSG] - 2008 года выпуска
-
№АртикулНазвание
-
10502-914 BRAKE ASSEMBLY (INC. 2-10)BRAKE ASSEMBLY (INC. 2-10)
-
20502-566 ...SCREW, RESERVOIR COVER...SCREW, RESERVOIR COVER
-
30502-868 ...COVER, RESERVOIR...COVER, RESERVOIR
-
40502-568 ...SCREW, MASTER CYLINDER CLAMP...SCREW, MASTER CYLINDER CLAMP
-
50502-869 ...CLAMP, MASTER CYLINDER (BLACK)...CLAMP, MASTER CYLINDER (BLACK)
-
60502-704 ...MASTER CYLINDER ASSEMBLY (HAYES BLK)...MASTER CYLINDER ASSEMBLY (HAYES BLK)
-
70502-866 ...LEVER ASSEMBLY - KIT (INC. 8-9)...LEVER ASSEMBLY - KIT (INC. 8-9)
-
80502-867 ......LOCK, BRAKE LEVER - KIT......LOCK, BRAKE LEVER - KIT
-
90502-580 ......LEVER PIN - KIT......LEVER PIN - KIT
-
100502-564 ...SWITCH, BRAKE...SWITCH, BRAKE
-
110423-178 WASHER, CRUSHWASHER, CRUSH
-
120423-413 BOLT, BANJO-FITTINGBOLT, BANJO-FITTING
