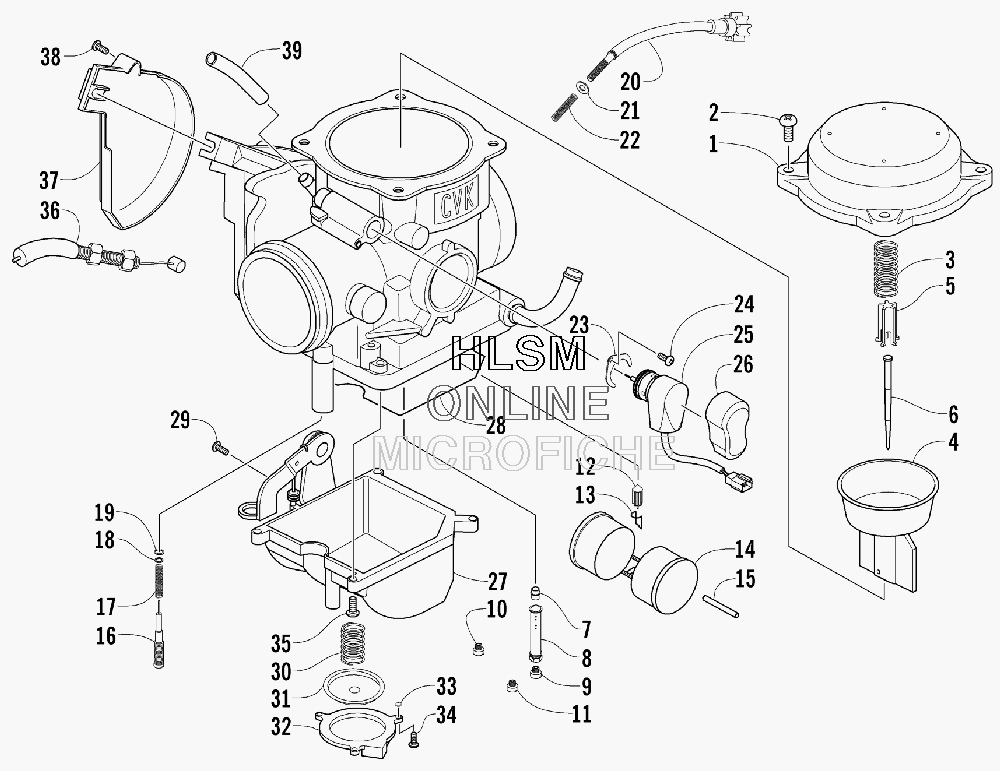

CARBURETOR для Arctic Cat 400 MAN (GREEN) [A2008ICH4AUSG] - 2008 года выпуска
-
№АртикулНазвание
-
15507-001 COVER, TOPCOVER, TOP
-
25507-002 SCREW, TOP COVERSCREW, TOP COVER
-
35507-066 SPRINGSPRING
-
45507-109 PISTON, VACUUMPISTON, VACUUM
-
55507-005 SEAT, SPRINGSEAT, SPRING
-
65507-110 JET NEEDLEJET NEEDLE
-
75507-007 NEEDLE JETNEEDLE JET
-
85507-047 HOLDER, NEEDLE JETHOLDER, NEEDLE JET
-
95507-215 MAIN JET - 135 (STD)MAIN JET - 135 (STD)
-
95507-073 MAIN JET - 128 (OPTIONAL)MAIN JET - 128 (OPTIONAL)
-
95507-074 MAIN JET - 130 (OPTIONAL)MAIN JET - 130 (OPTIONAL)
-
95507-075 MAIN JET - 132 (OPTIONAL)MAIN JET - 132 (OPTIONAL)
-
95507-044 MAIN JET - 140 (OPTIONAL)MAIN JET - 140 (OPTIONAL)
-
95507-043 MAIN JET - 142 (OPTIONAL)MAIN JET - 142 (OPTIONAL)
-
105507-010 SLOW JET - 38SLOW JET - 38
-
115507-097 STARTER JET - 75STARTER JET - 75
-
125507-183 VALVE, FLOAT - SET (INC. 13)VALVE, FLOAT - SET (INC. 13)
-
145507-039 FLOAT SET (INC. 15)FLOAT SET (INC. 15)
-
165507-216 SCREW, PILOT - SET (INC. 17-19)SCREW, PILOT - SET (INC. 17-19)
-
205507-027 SCREW, IDLE ADJUSTSCREW, IDLE ADJUST
-
215507-028 WASHERWASHER
-
225507-029 SPRINGSPRING
-
235507-115 PLATEPLATE
-
245507-117 SCREWSCREW
-
255507-180 CHOKE, ELECTRICCHOKE, ELECTRIC
-
265507-114 COVER, ELECTRIC CHOKECOVER, ELECTRIC CHOKE
-
275507-214 CHAMBER, FLOAT - ASSEMBLY (INC. 28-34)CHAMBER, FLOAT - ASSEMBLY (INC. 28-34)
-
285507-067 ...O-RING, FLOAT CHAMBER...O-RING, FLOAT CHAMBER
-
295507-050 ...SCREW, DRAIN...SCREW, DRAIN
-
305507-211 ...SPRING...SPRING
-
315507-197 ...DIAPHRAGM ASSEMBLY...DIAPHRAGM ASSEMBLY
-
335507-034 ...U-RING...U-RING
-
345507-035 ...SCREW...SCREW
-
355507-017 SCREWSCREW
-
360487-049 CABLE, THROTTLECABLE, THROTTLE
-
375507-036 COVERCOVER
-
385507-037 SCREWSCREW
-
390410-056 HOSE, VENTHOSE, VENT
