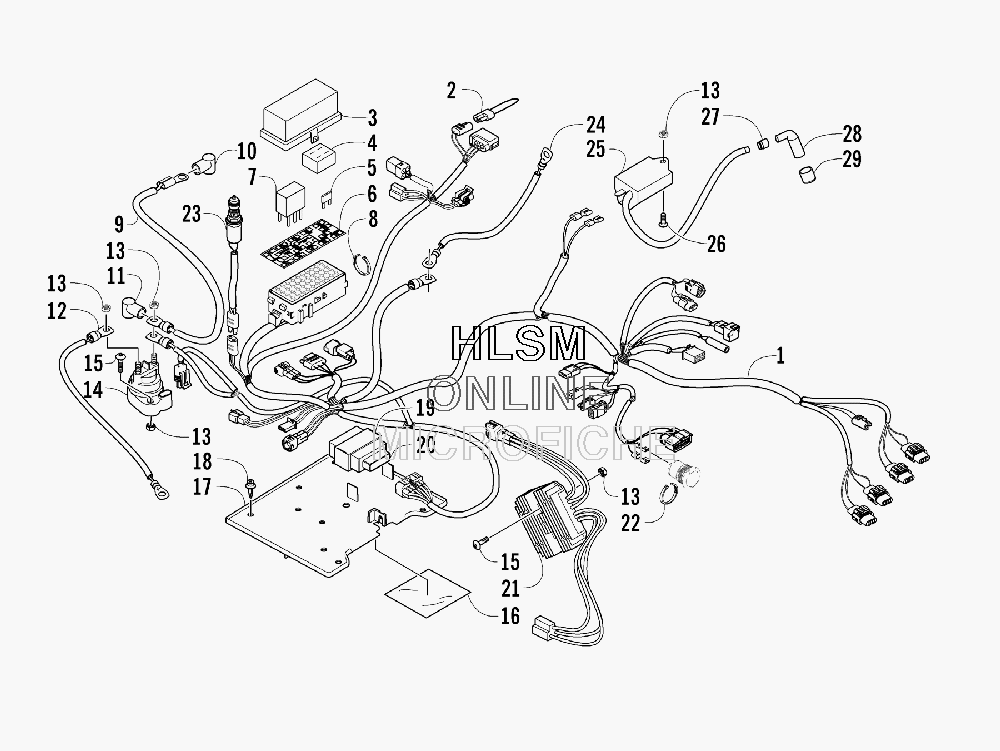

WIRING HARNESS ASSEMBLY для Arctic Cat 400 MAN (GREEN) [A2008ICH4AUSG] - 2008 года выпуска
-
№АртикулНазвание
-
10486-248 HARNESS, MAIN (INC. 2-7 AND TWO NO. 8)HARNESS, MAIN (INC. 2-7 AND TWO NO. 8)
-
20486-164 ...TETHER, ACCESSORY CONNECTOR...TETHER, ACCESSORY CONNECTOR
-
30530-008 ...COVER, FUSE BLOCK...COVER, FUSE BLOCK
-
40430-037 ...HOLDER, SPARE FUSE...HOLDER, SPARE FUSE
-
50430-032 ...FUSE - 10 AMP...FUSE - 10 AMP
-
50430-031 ...FUSE - 15 AMP...FUSE - 15 AMP
-
50430-030 ...FUSE - 30 AMP...FUSE - 30 AMP
-
60411-837 ...DECAL, FUSE BLOCK...DECAL, FUSE BLOCK
-
70430-033 ...RELAY - 20 AMP (5-PIN)...RELAY - 20 AMP (5-PIN)
-
80123-788 ...CABLE TIE - 7.5 IN....CABLE TIE - 7.5 IN.
-
90445-053 CABLE, SOLENOID/STARTER (INC. 10)CABLE, SOLENOID/STARTER (INC. 10)
-
100645-019 ...BOOT, TERMINAL...BOOT, TERMINAL
-
110645-327 BOOT, TERMINALBOOT, TERMINAL
-
120445-055 CABLE, BATTERY/SOLENOIDCABLE, BATTERY/SOLENOID
-
130623-038 NUT, LOCKNUT, LOCK
-
140445-058 SOLENOIDSOLENOID
-
158476-625 SCREW, MACHINESCREW, MACHINE
-
160412-291 SHIELD, HEATSHIELD, HEAT
-
171406-787 TRAY, ELECTRICALTRAY, ELECTRICAL
-
180623-362 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
193402-684 CUSHION, CDI UNITCUSHION, CDI UNIT
-
203402-785 CDI UNITCDI UNIT
-
213402-682 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
220123-903 CABLE TIE - 11.5 IN.CABLE TIE - 11.5 IN.
-
230409-089 SWITCH, BRAKE - ASSEMBLYSWITCH, BRAKE - ASSEMBLY
-
240445-054 CABLE, BATTERY/GROUNDCABLE, BATTERY/GROUND
-
253430-055 COIL, IGNITION - ASSEMBLYCOIL, IGNITION - ASSEMBLY
-
268476-620 SCREW, MACHINESCREW, MACHINE
-
273430-009 SEAL, HIGH TENSION WIRESEAL, HIGH TENSION WIRE
-
283430-007 CAP, SPARK PLUGCAP, SPARK PLUG
-
293430-008 SEAL, SPARK PLUGSEAL, SPARK PLUG
