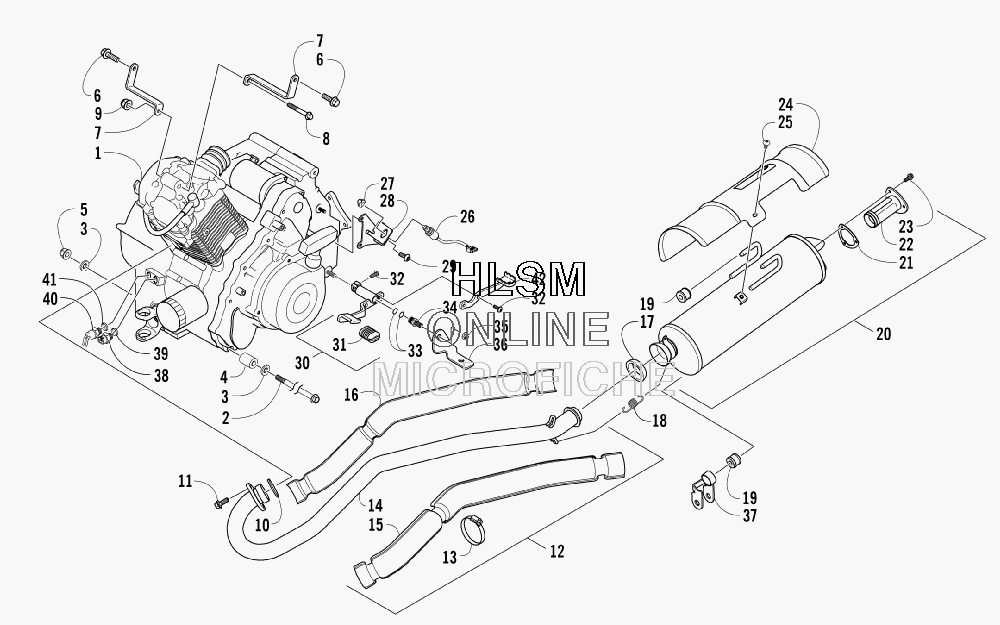

ENGINE AND EXHAUST для Arctic Cat 400 MAN (GREEN) [A2008ICH4AUSG] - 2008 года выпуска
-
№АртикулНазвание
-
10462-035 ENGINEENGINE
-
20423-405 SCREW, CAPSCREW, CAP
-
30423-426 WASHER, ENGINEWASHER, ENGINE
-
40423-042 SPACER, ENGINESPACER, ENGINE
-
58428-002 NUT, LOCKNUT, LOCK
-
68408-816 SCREW, CAPSCREW, CAP
-
71506-626 BRACKET, ENGINE - RIGHTBRACKET, ENGINE - RIGHT
-
71506-625 BRACKET, ENGINE - LEFTBRACKET, ENGINE - LEFT
-
88408-860 SCREW, CAPSCREW, CAP
-
98424-802 NUTNUT
-
100412-007 SEAL, EXHAUSTSEAL, EXHAUST
-
118408-820 SCREW, CAPSCREW, CAP
-
120512-261 PIPE, EXHAUST - ASSEMBLY (INC. 13-16)PIPE, EXHAUST - ASSEMBLY (INC. 13-16)
-
130423-317 ...CLAMP, HOSE...CLAMP, HOSE
-
140512-242 ...PIPE, EXHAUST...PIPE, EXHAUST
-
150412-342 ...SHIELD, EXHAUST PIPE - OUTER...SHIELD, EXHAUST PIPE - OUTER
-
160412-341 ...SHIELD, EXHAUST PIPE - INNER...SHIELD, EXHAUST PIPE - INNER
-
170612-188 GASKET, EXHAUSTGASKET, EXHAUST
-
180612-668 SPRING, EXHAUSTSPRING, EXHAUST
-
190412-215 BUSHING, EXHAUSTBUSHING, EXHAUST
-
200512-306 MUFFLER - ASSEMBLY (INC. 21-23)MUFFLER - ASSEMBLY (INC. 21-23)
-
210412-313 ...GASKET, SPARK ARRESTER...GASKET, SPARK ARRESTER
-
220512-219 ...ARRESTER, SPARK - ASSEMBLY...ARRESTER, SPARK - ASSEMBLY
-
238408-616 ...SCREW, CAP...SCREW, CAP
-
240412-373 COVER, MUFFLERCOVER, MUFFLER
-
258477-610 SCREW, MACHINE (BLACK)SCREW, MACHINE (BLACK)
-
260409-008 SWITCH, REVERSESWITCH, REVERSE
-
270402-991 RETAINER, REVERSE SWITCHRETAINER, REVERSE SWITCH
-
281506-449 BRACKET, MOUNTING - REVERSE SWITCH (INC. 29)BRACKET, MOUNTING - REVERSE SWITCH (INC. 29)
-
290423-361 ...SCREW, MACHINE (BLACK)...SCREW, MACHINE (BLACK)
-
300502-871 LEVER, TOE SHIFT - ASSEMBLY (INC. 31 AND ONE NO. 32)LEVER, TOE SHIFT - ASSEMBLY (INC. 31 AND ONE NO. 32)
-
311402-284 ...PAD, TOE - SHIFT LEVER...PAD, TOE - SHIFT LEVER
-
328476-620 ...SCREW, MACHINE...SCREW, MACHINE
-
331602-213 O-RINGO-RING
-
340402-994 PIN, SHIFT LEVERPIN, SHIFT LEVER
-
358422-002 NUTNUT
-
361506-693 BRACKET, SHIFT LEVER (BLACK)BRACKET, SHIFT LEVER (BLACK)
-
371506-732 CHANNEL, MUFFLER SUPPORT (BLACK)CHANNEL, MUFFLER SUPPORT (BLACK)
-
383530-037 SWITCH, OIL LIGHTSWITCH, OIL LIGHT
-
393402-556 GASKETGASKET
-
403430-033 SWITCH, COOLING FANSWITCH, COOLING FAN
-
413402-013 GASKETGASKET
-
420502-693 LEVER, HEEL SHIFT (BLACK)LEVER, HEEL SHIFT (BLACK)
