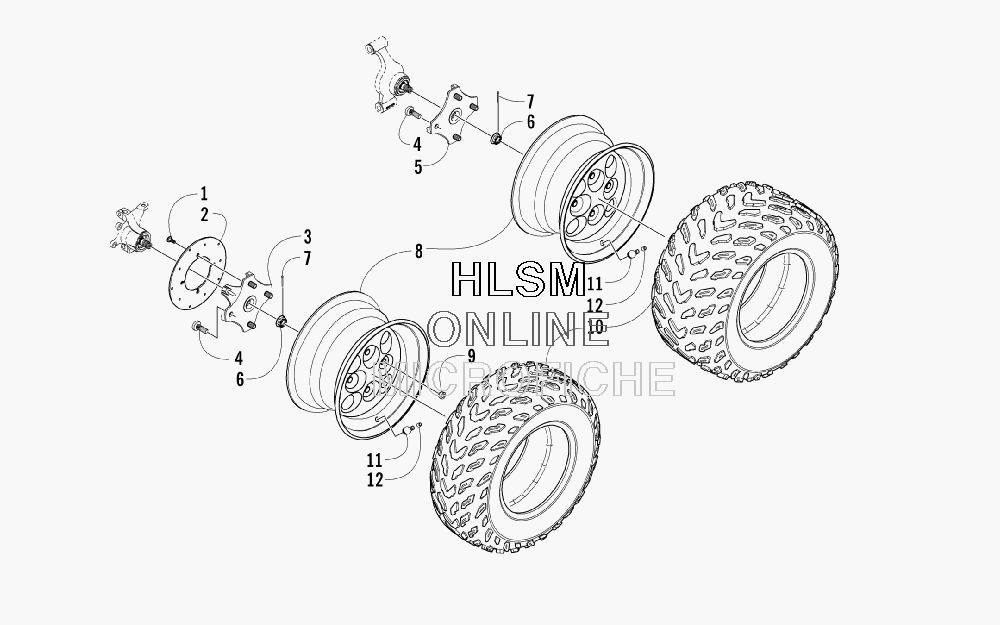

WHEEL AND TIRE ASSEMBLY для Arctic Cat 400 MAN (GREEN) [A2008ICH4AUSG] - 2008 года выпуска
-
№АртикулНазвание
-
10423-557 SCREW, SHOULDER W/LOCTITESCREW, SHOULDER W/LOCTITE
-
21402-225 DISC, BRAKEDISC, BRAKE
-
30502-599 HUB, WHEEL - FRONT (INC. 4)HUB, WHEEL - FRONT (INC. 4)
-
40402-974 ...STUD, WHEEL HUB...STUD, WHEEL HUB
-
50502-601 HUB, WHEEL - REAR - LEFT (INC. 4)HUB, WHEEL - REAR - LEFT (INC. 4)
-
50502-599 HUB, WHEEL - REAR - RIGHT (INC. 4)HUB, WHEEL - REAR - RIGHT (INC. 4)
-
60423-607 NUT, CASTLENUT, CASTLE
-
70423-407 PIN, COTTERPIN, COTTER
-
80402-856 WHEEL ASSY-(GRAY) 12"WHEEL ASSY-(GRAY) 12"
-
80402-858 WHEEL, REAR-ASSY (GRAY) 12"WHEEL, REAR-ASSY (GRAY) 12"
-
90423-408 NUT, MOUNTING - WHEELNUT, MOUNTING - WHEEL
-
101402-548 TIRE, GOODYEAR RAWHIDE RS-(25X8-12)TIRE, GOODYEAR RAWHIDE RS-(25X8-12)
-
101402-549 TIRE, GOODYEAR RAWHIDE RS-(25X10-12)TIRE, GOODYEAR RAWHIDE RS-(25X10-12)
-
110402-064 STEM, VALVE (INC. 12)STEM, VALVE (INC. 12)
-
120402-140 ...CAP, VALVE STEM...CAP, VALVE STEM
