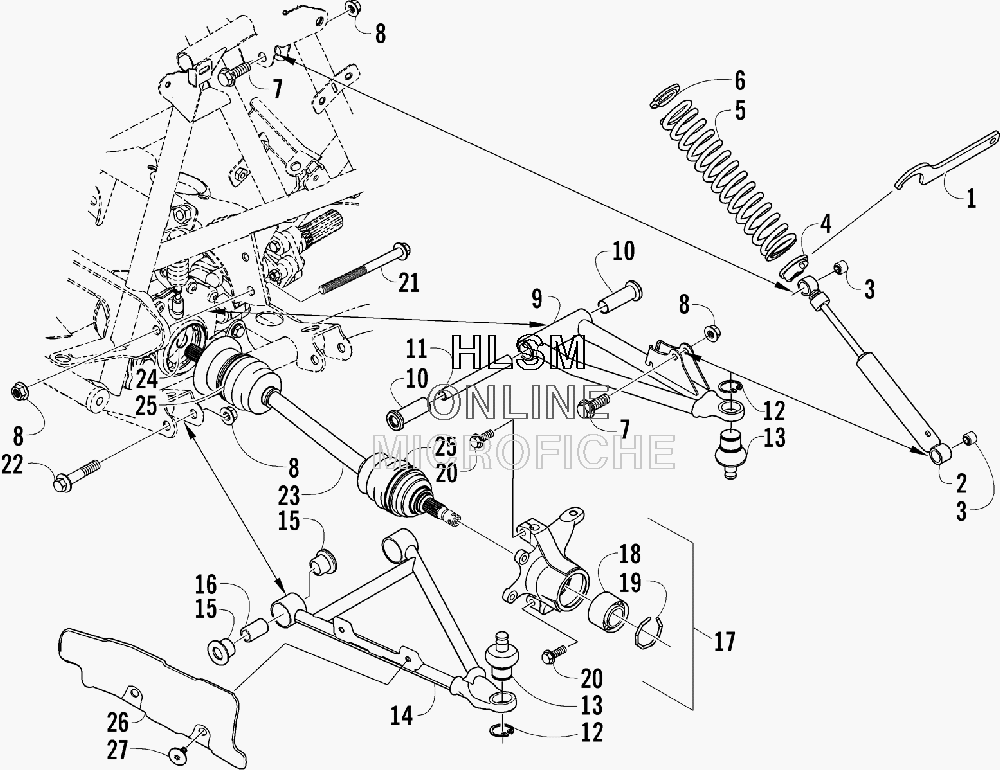

FRONT SUSPENSION ASSEMBLY для Arctic Cat 400 MAN (GREEN) [A2008ICH4AUSG] - 2008 года выпуска
-
№АртикулНазвание
-
10441-587 WRENCH, SPANNER-66MMWRENCH, SPANNER-66MM
-
20403-172 SHOCK ABSORBER - FRONT (INC. 3)SHOCK ABSORBER - FRONT (INC. 3)
-
30403-182 ...BUSHING, DOUBLE-BONDED...BUSHING, DOUBLE-BONDED
-
40403-102 CAM, SPRING ADJUSTERCAM, SPRING ADJUSTER
-
50403-169 SPRING, SHOCK ABSORBER - (BLACK) (170LB 12.85")SPRING, SHOCK ABSORBER - (BLACK) (170LB 12.85")
-
61603-889 RETAINER, SPRINGRETAINER, SPRING
-
78409-040 SCREW, CAPSCREW, CAP
-
88428-002 NUT, LOCKNUT, LOCK
-
90503-196 A-ARM, UPPER RIGHT - (BLACK) (INC. 10-13)A-ARM, UPPER RIGHT - (BLACK) (INC. 10-13)
-
90503-197 A-ARM, UPPER LEFT - (BLACK) (INC. 10-13)A-ARM, UPPER LEFT - (BLACK) (INC. 10-13)
-
100403-081 ...BUSHING...BUSHING
-
110403-080 ...COLLAR...COLLAR
-
120423-009 ...CLIP, BALL JOINT...CLIP, BALL JOINT
-
130405-115 ...BALL JOINT - FRONT...BALL JOINT - FRONT
-
140503-334 A-ARM, LOWER RIGHT - (BLACK) (INC. 12-13 AND 15-16)A-ARM, LOWER RIGHT - (BLACK) (INC. 12-13 AND 15-16)
-
140503-335 A-ARM, LOWER LEFT - (BLACK) (INC. 12-13 AND 15-16)A-ARM, LOWER LEFT - (BLACK) (INC. 12-13 AND 15-16)
-
150403-115 ...BUSHING...BUSHING
-
160403-114 ...COLLAR...COLLAR
-
170505-460 KNUCKLE - ASSEMBLY - RIGHT (INC. 18-19)KNUCKLE - ASSEMBLY - RIGHT (INC. 18-19)
-
170505-461 KNUCKLE - ASSEMBLY - LEFT (INC. 18-19)KNUCKLE - ASSEMBLY - LEFT (INC. 18-19)
-
181402-027 ...BEARING, WHEEL HUB...BEARING, WHEEL HUB
-
190423-423 ...RING, RETAINING...RING, RETAINING
-
208409-030 SCREW, CAP-HFH M10X1.25X30 CL10.9 Z & YSCREW, CAP-HFH M10X1.25X30 CL10.9 Z & Y
-
210423-334 SCREW, CAP-HFH M10-1.25 X165 Z & Y CL10.9SCREW, CAP-HFH M10-1.25 X165 Z & Y CL10.9
-
228409-075 SCREW, CAP-HFH M10X1.25X75 CL10.9 Z & YSCREW, CAP-HFH M10X1.25X75 CL10.9 Z & Y
-
230502-812 HALFSHAFT - FRONT - RIGHT (INC. 24-25)HALFSHAFT - FRONT - RIGHT (INC. 24-25)
-
230502-813 HALFSHAFT, 565MM-24T-LOCKING - FRONT - LEFT (INC. 24-25)HALFSHAFT, 565MM-24T-LOCKING - FRONT - LEFT (INC. 24-25)
-
241441-109 ...CLIP, RETAINING...CLIP, RETAINING
-
250436-276 ...REPAIR KIT, BOOT - FRONT AXLE...REPAIR KIT, BOOT - FRONT AXLE
-
261441-002 GUARD, BOOT - AXLE - RIGHT (GREEN)GUARD, BOOT - AXLE - RIGHT (GREEN)
-
261441-003 GUARD, BOOT - AXLE - LEFT (GREEN)GUARD, BOOT - AXLE - LEFT (GREEN)
-
270423-545 SCREW, BODYSCREW, BODY
