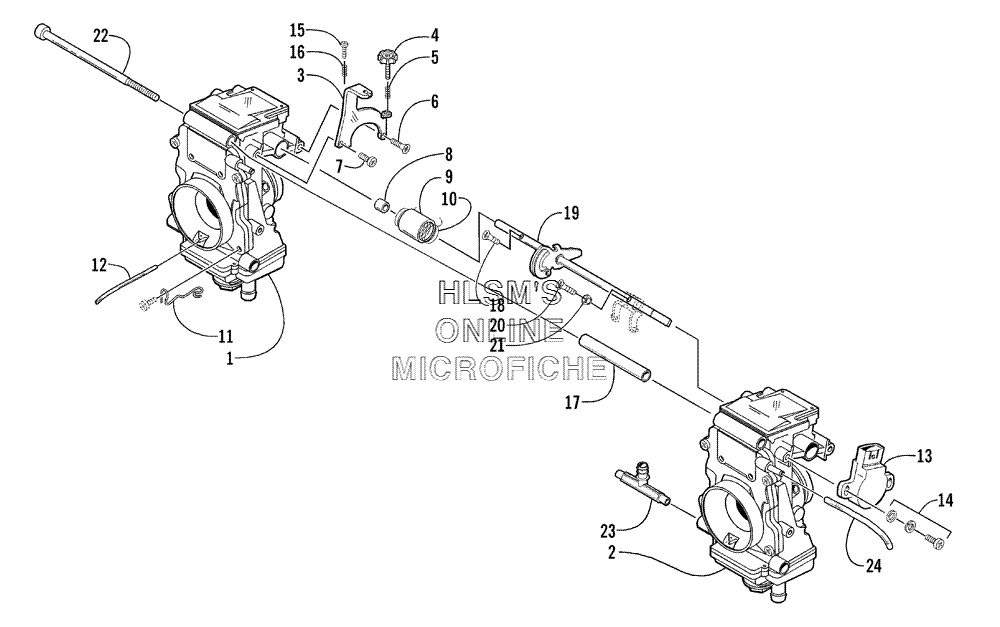

CARBURETOR - EXTERNAL PARTS для Arctic Cat Powder Special 2K - 2000 года выпуска
-
№АртикулНазвание
-
16506-180 CARBURETOR ASSEMBLY - LEFT (INC. 3-7,15,AND 16)CARBURETOR ASSEMBLY - LEFT (INC. 3-7,15,AND 16)
-
26506-181 CARBURETOR ASSEMBLY - RIGHT (INC. 3-7,15,AND 16)CARBURETOR ASSEMBLY - RIGHT (INC. 3-7,15,AND 16)
-
36506-058 BRACKETBRACKET
-
46506-061 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
56506-062 SPRING, THROTTLE STOPSPRING, THROTTLE STOP
-
66506-063 SCREWSCREW
-
76506-064 SCREWSCREW
-
86506-048 SPACERSPACER
-
96506-049 SLEEVE, SPRINGSLEEVE, SPRING
-
106506-135 SPRING, THROTTLESPRING, THROTTLE
-
116506-131 CLIP, HOSECLIP, HOSE
-
126506-141 HOSEHOSE
-
136506-074 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
146506-075 SCREW W/WASHERSSCREW W/WASHERS
-
156506-134 SCREWSCREW
-
166506-056 SPRINGSPRING
-
176506-143 SPACERSPACER
-
186506-046 SCREWSCREW
-
196506-179 ASSEMBLY, THROTTLE LEVER SHAFTASSEMBLY, THROTTLE LEVER SHAFT
-
206506-042 SCREWSCREW
-
216506-041 RING, LEVERRING, LEVER
-
226506-065 BOLTBOLT
-
236506-140 NIPPLE ASSEMBLYNIPPLE ASSEMBLY
-
246506-133 HOSEHOSE
