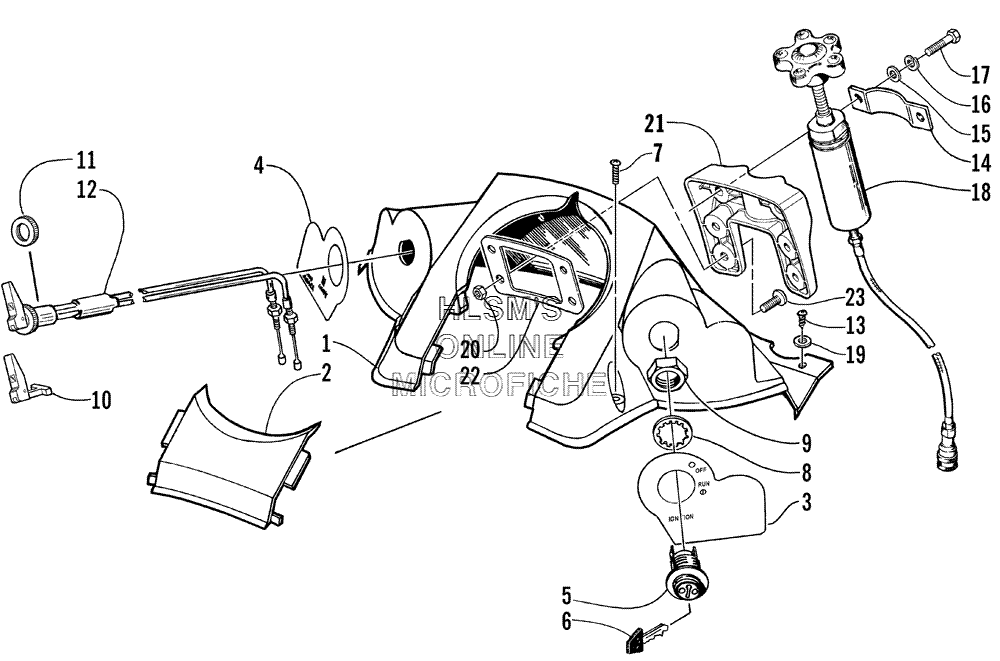

CONSOLE AND SWITCH ASSEMBLY для Arctic Cat Powder Special 2K - 2000 года выпуска
-
№АртикулНазвание
-
11606-502 CONSOLECONSOLE
-
21606-105 DOOR, CONSOLEDOOR, CONSOLE
-
32611-678 DECAL, CONSOLE - RIGHTDECAL, CONSOLE - RIGHT
-
42611-867 DECAL, CONSOLE - LEFTDECAL, CONSOLE - LEFT
-
50609-256 SWITCH, IGNITIONSWITCH, IGNITION
-
60609-412 KEYKEY
-
70623-219 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
80123-899 WASHER, INTERNAL LOCKWASHER, INTERNAL LOCK
-
90123-900 NUT, IGNITIONNUT, IGNITION
-
100636-062 CHOKE LEVER KITCHOKE LEVER KIT
-
110623-054 NUT, CHOKENUT, CHOKE
-
120687-056 CABLE, CHOKECABLE, CHOKE
-
130623-378 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
141604-432 BRACKET, RETAINERBRACKET, RETAINER
-
158050-212 WASHERWASHER
-
168051-212 WASHER, LOCKWASHER, LOCK
-
178002-041 SCREW, CAPSCREW, CAP
-
181604-191 RESERVOIR ASSEMBLY - SHOCK ABSORBERRESERVOIR ASSEMBLY - SHOCK ABSORBER
-
198050-157 WASHERWASHER
-
208040-366 NUT, HEXNUT, HEX
-
211606-364 BRACKET, MOUNTINGBRACKET, MOUNTING
-
221606-365 PLATE, BACKINGPLATE, BACKING
-
238017-580 SCREW, MACHINESCREW, MACHINE
