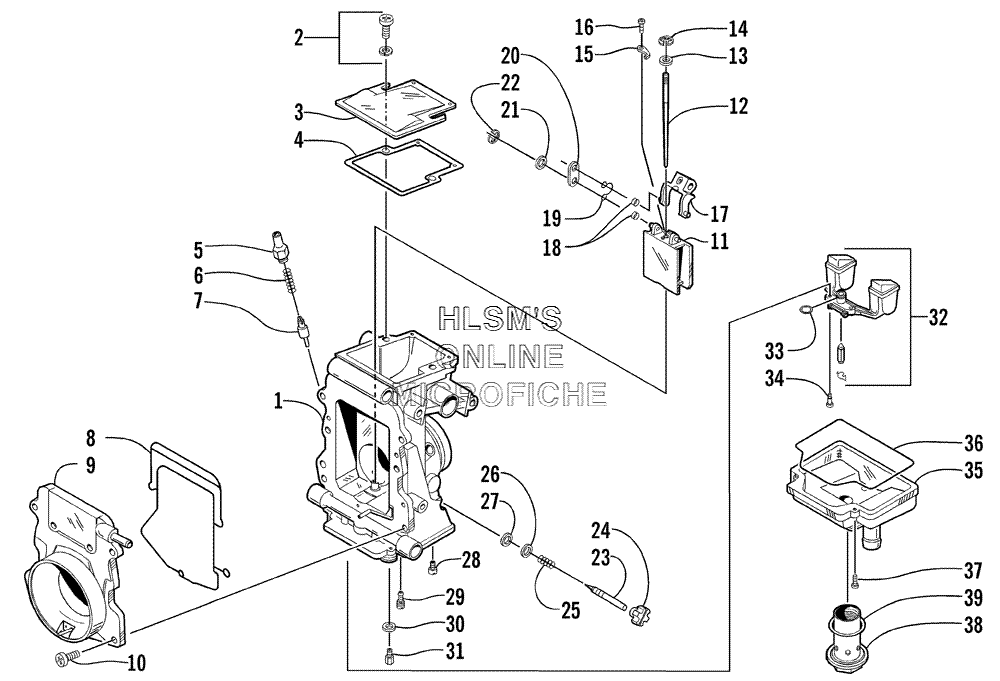

CARBURETOR TM38 - INTERNAL PARTS для Arctic Cat Powder Special 2K - 2000 года выпуска
-
№АртикулНазвание
-
-0670-059 TM38 ASSEMBLY POWDER SPECIALTM38 ASSEMBLY POWDER SPECIAL
-
26505-591 SCREW ASSEMBLYSCREW ASSEMBLY
-
36506-142 CAP, TOPCAP, TOP
-
46506-034 GASKETGASKET
-
56506-137 HOLDER, GUIDEHOLDER, GUIDE
-
66506-138 SPRING - STARTER PLUNGERSPRING - STARTER PLUNGER
-
76506-139 STARTER PLUNGERSTARTER PLUNGER
-
86506-033 GASKETGASKET
-
96506-132 FUNNEL ASSEMBLYFUNNEL ASSEMBLY
-
106505-980 SCREWSCREW
-
116506-120 PISTON, VALVE CA 3.0PISTON, VALVE CA 3.0
-
126506-110 JET NEEDLE 9DH2-59 (5,000-9,000 FT)JET NEEDLE 9DH2-59 (5,000-9,000 FT)
-
136505-552 WASHER, E-RING (PACKING)WASHER, E-RING (PACKING)
-
146505-628 E-RINGE-RING
-
156506-055 PLATE, JET NEEDLE RETAININGPLATE, JET NEEDLE RETAINING
-
166506-054 SCREW, RETAINING PLATESCREW, RETAINING PLATE
-
176506-047 LEVER ASSEMBLY - LEFTLEVER ASSEMBLY - LEFT
-
176506-043 LEVER ASSEMBLY - RIGHTLEVER ASSEMBLY - RIGHT
-
186506-053 BUSHING, CLIPBUSHING, CLIP
-
196506-040 CLIPCLIP
-
206506-039 PLATEPLATE
-
216506-052 WASHERWASHER
-
226506-051 E-RINGE-RING
-
236506-145 ADJUSTER - 2.0ADJUSTER - 2.0
-
246506-076 CAP, ADJUSTERCAP, ADJUSTER
-
256506-079 SPRING, ADJUSTERSPRING, ADJUSTER
-
266506-078 WASHERWASHER
-
276506-080 WASHER, RUBBERWASHER, RUBBER
-
286506-101 STARTER JET - 135STARTER JET - 135
-
296505-073 PILOT JET 30 (0-9,000 FT)PILOT JET 30 (0-9,000 FT)
-
296505-278 PILOT JET 45 (OVER 9,000 FT)PILOT JET 45 (OVER 9,000 FT)
-
306506-091 WASHERWASHER
-
316505-069 MAIN JET 270 (POWDER SPECIAL)MAIN JET 270 (POWDER SPECIAL)
-
326506-121 FLOAT ASSEMBLY - 1.5FLOAT ASSEMBLY - 1.5
-
336506-100 O-RINGO-RING
-
346506-037 SCREW, FLOAT ARMSCREW, FLOAT ARM
-
356506-036 CHAMBER, FLOATCHAMBER, FLOAT
-
366506-038 O-RINGO-RING
-
376506-072 SCREWSCREW
-
386506-032 PLUG, DRAINPLUG, DRAIN
-
396505-185 O-RINGO-RING
