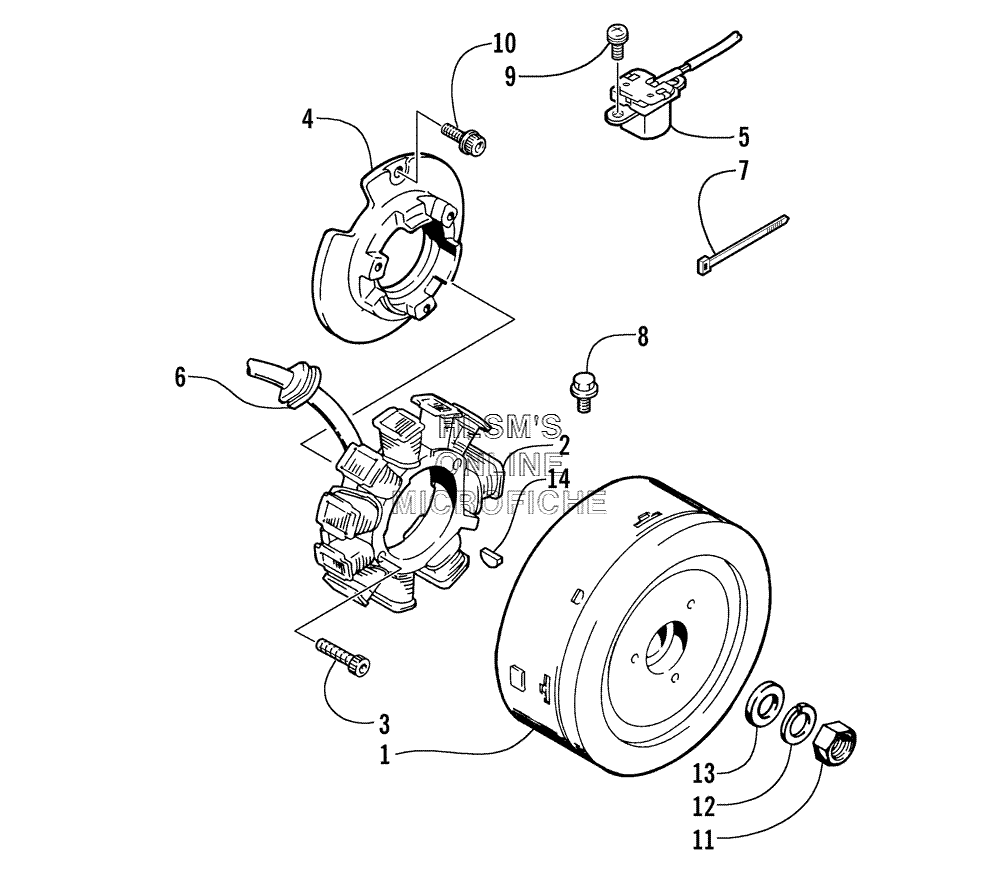

MAGNETO для Arctic Cat Powder Special 2K - 2000 года выпуска
-
№АртикулНазвание
-
13005-565 ROTOR ASSEMBLYROTOR ASSEMBLY
-
23005-566 STATOR ASSEMBLYSTATOR ASSEMBLY
-
33004-484 SCREW, MACHINESCREW, MACHINE
-
43005-510 BASE, STATORBASE, STATOR
-
53004-073 SENSOR, IGNITION TIMINGSENSOR, IGNITION TIMING
-
63005-511 GROMMETGROMMET
-
73003-787 TIE, CABLETIE, CABLE
-
83004-338 SCREW, CAPSCREW, CAP
-
93004-706 SCREW, CAPSCREW, CAP
-
103004-378 SCREW, CAPSCREW, CAP
-
113004-380 NUTNUT
-
123004-345 WASHER, LOCKWASHER, LOCK
-
133005-175 WASHERWASHER
-
143004-540 KEYKEY
