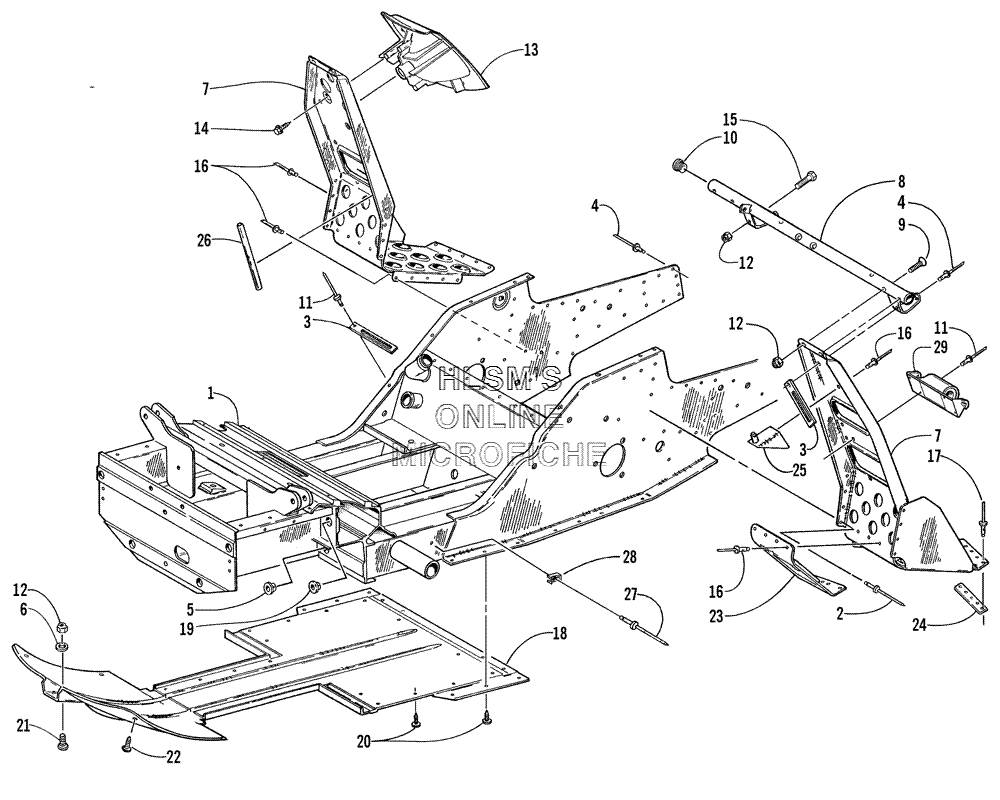

FRONT FRAME AND FOOTREST ASSEMBLY для Arctic Cat Powder Special 2K - 2000 года выпуска
-
№АртикулНазвание
-
10707-366 CHASSIS ASSEMBLYCHASSIS ASSEMBLY
-
20623-341 RIVETRIVET
-
33002-964 CLAMP, WIRECLAMP, WIRE
-
48060-504 RIVETRIVET
-
50607-420 INSERT, LOWER A-ARM MOUNTINSERT, LOWER A-ARM MOUNT
-
68050-222 WASHERWASHER
-
71706-360 FOOTREST - RIGHT HAND - BLACKFOOTREST - RIGHT HAND - BLACK
-
71706-361 FOOTREST - LEFT HAND - BLACKFOOTREST - LEFT HAND - BLACK
-
71606-204 FOOTREST - RIGHT HAND - UNPAINTED (PS)FOOTREST - RIGHT HAND - UNPAINTED (PS)
-
71606-205 FOOTREST - LEFT HAND - UNPAINTED (PS)FOOTREST - LEFT HAND - UNPAINTED (PS)
-
80705-161 SUPPORT, STEERINGSUPPORT, STEERING
-
98019-614 SCREW, MACHINESCREW, MACHINE
-
101606-079 CLOSURE, TUBECLOSURE, TUBE
-
118060-506 RIVETRIVET
-
128040-366 NUT, LOCKNUT, LOCK
-
131606-062 CUP, RECOIL ROPECUP, RECOIL ROPE
-
140623-297 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
158002-041 SCREW, CAPSCREW, CAP
-
160623-166 RIVETRIVET
-
170623-282 RIVETRIVET
-
181606-508 BELLY PAN - CENTERBELLY PAN - CENTER
-
190607-421 INSERT, UPPER A-ARM MOUNTINSERT, UPPER A-ARM MOUNT
-
200623-700 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
218017-584 SCREW, MACHINESCREW, MACHINE
-
220623-309 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
231606-542 PLATE, BACKING - RIGHTPLATE, BACKING - RIGHT
-
231606-543 PLATE, BACKING - LEFTPLATE, BACKING - LEFT
-
240616-701 PLATE, BACKING - FOOTRESTPLATE, BACKING - FOOTREST
-
250705-173 BRACKET, MOUNTING - GUARDBRACKET, MOUNTING - GUARD
-
260706-371 TRIMTRIM
-
278060-428 RIVETRIVET
-
280623-228 MOUNT, CABLE TIEMOUNT, CABLE TIE
-
290606-781 CADDY, SPARK PLUGCADDY, SPARK PLUG
