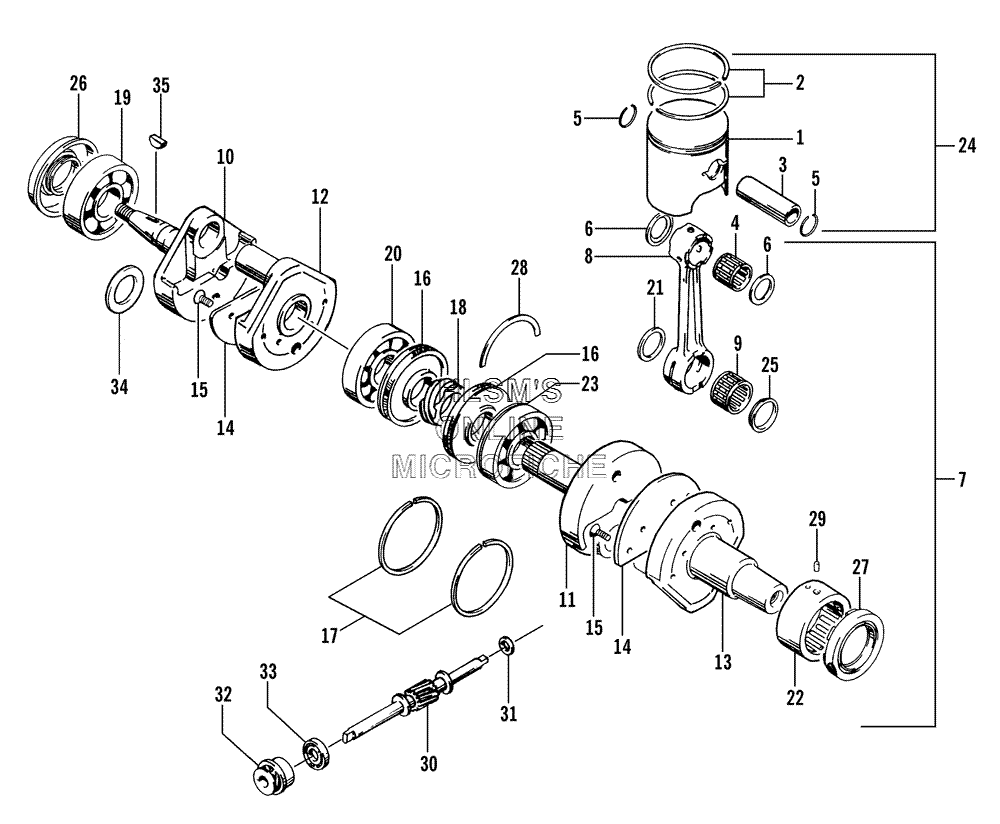

PISTON AND CRANKSHAFT для Arctic Cat Powder Special 2K - 2000 года выпуска
-
№АртикулНазвание
-
13005-491 PISTONPISTON
-
23003-714 RING ASSEMBLYRING ASSEMBLY
-
33008-509 PIN, PISTONPIN, PISTON
-
43008-503 BEARINGBEARING
-
53005-304 SNAP RINGSNAP RING
-
63008-500 WASHER, PISTON PIN BEARINGWASHER, PISTON PIN BEARING
-
73005-493 CRANKSHAFT ASSEMBLY (INC. 8-23)CRANKSHAFT ASSEMBLY (INC. 8-23)
-
83005-492 RODROD
-
93005-505 BEARINGBEARING
-
103005-495 CRANKSHAFT - RIGHTCRANKSHAFT - RIGHT
-
113005-496 CRANKSHAFT - CENTERCRANKSHAFT - CENTER
-
123005-497 WHEEL, CRANKSHAFTWHEEL, CRANKSHAFT
-
133005-498 CRANKSHAFT - LEFTCRANKSHAFT - LEFT
-
143005-500 BALANCERBALANCER
-
153004-372 SCREW, MACHINESCREW, MACHINE
-
163005-501 RACE, MIDDLE SEALRACE, MIDDLE SEAL
-
173005-508 RINGRING
-
183005-362 GEAR, OIL PUMP DRIVEGEAR, OIL PUMP DRIVE
-
193005-507 BEARING - RIGHTBEARING - RIGHT
-
203005-503 BEARING - MIDDLEBEARING - MIDDLE
-
213005-502 WASHERWASHER
-
223003-805 BEARING - LEFTBEARING - LEFT
-
233005-504 BEARING - MIDDLEBEARING - MIDDLE
-
243005-554 PISTON ASSEMBLY (INC. 1, 2, AND 5)PISTON ASSEMBLY (INC. 1, 2, AND 5)
-
253005-494 WASHER, CRANK PINWASHER, CRANK PIN
-
263008-525 SEAL, OIL - RIGHTSEAL, OIL - RIGHT
-
273003-759 SEAL, OIL - LEFTSEAL, OIL - LEFT
-
283003-359 C-RINGC-RING
-
293003-658 PINPIN
-
303005-319 GEAR, PUMP DRIVENGEAR, PUMP DRIVEN
-
313005-049 SHIM, OIL PUMP SHAFTSHIM, OIL PUMP SHAFT
-
323402-360 SEAL, MECHANICAL WATER PUMPSEAL, MECHANICAL WATER PUMP
-
333004-760 SEAL, WATER - OIL PUMPSEAL, WATER - OIL PUMP
-
343008-501 WASHERWASHER
-
353004-540 KEYKEY
