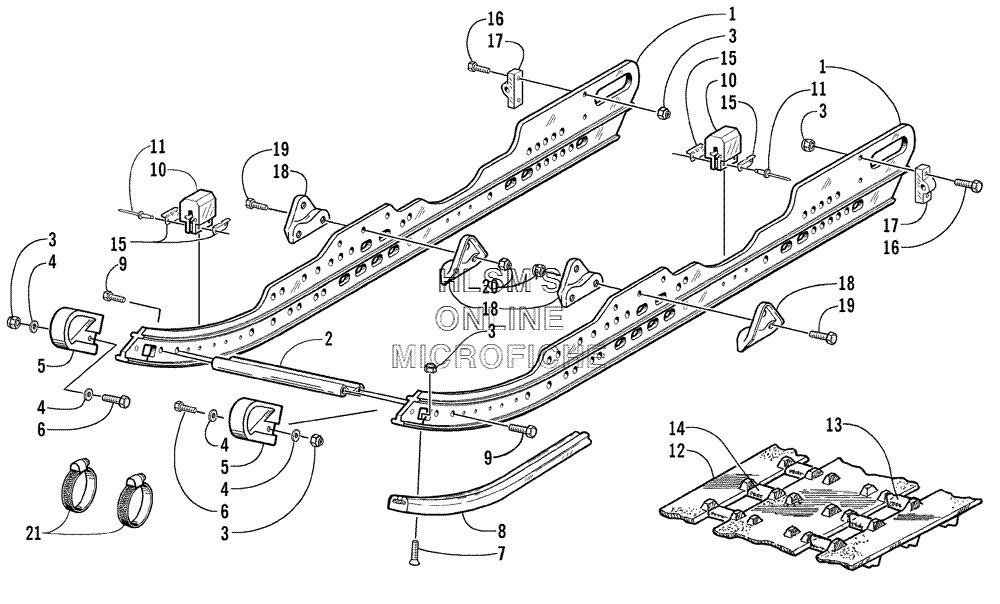

SLIDE RAIL AND TRACK ASSEMBLY для Arctic Cat Powder Special 2K - 2000 года выпуска
-
№АртикулНазвание
-
-7994-680 COMPLETE SKID FRAME ASSEMBLYCOMPLETE SKID FRAME ASSEMBLY
-
10704-491 RAIL, FORMEDRAIL, FORMED
-
20704-496 SUPPORT, RAILSUPPORT, RAIL
-
38040-366 NUT, LOCKNUT, LOCK
-
48050-217 WASHERWASHER
-
51604-137 END CAP, SLIDE RAILEND CAP, SLIDE RAIL
-
68002-044 SCREW, CAPSCREW, CAP
-
70123-869 SCREW, MACHINESCREW, MACHINE
-
80604-786 STRIP, WEAR - BLACKSTRIP, WEAR - BLACK
-
98012-134 SCREW, CAPSCREW, CAP
-
100604-918 PAD, SHOCKPAD, SHOCK
-
118060-633 RIVET, SOLIDRIVET, SOLID
-
121602-004 TRACK ASSEMBLY (INC. 13-14)TRACK ASSEMBLY (INC. 13-14)
-
130602-819 CLIP, GUIDECLIP, GUIDE
-
140602-820 CLIP, WEARCLIP, WEAR
-
150604-967 BRACKET, RETAININGBRACKET, RETAINING
-
168002-042 SCREW, CAPSCREW, CAP
-
170704-503 ADJUSTER, TRACKADJUSTER, TRACK
-
180604-913 BRACKET, MOUNTING - FRONT ARMBRACKET, MOUNTING - FRONT ARM
-
198002-131 SCREW, CAPSCREW, CAP
-
208040-426 NUTNUT
-
210214-017 CLAMP, RESERVOIRCLAMP, RESERVOIR
