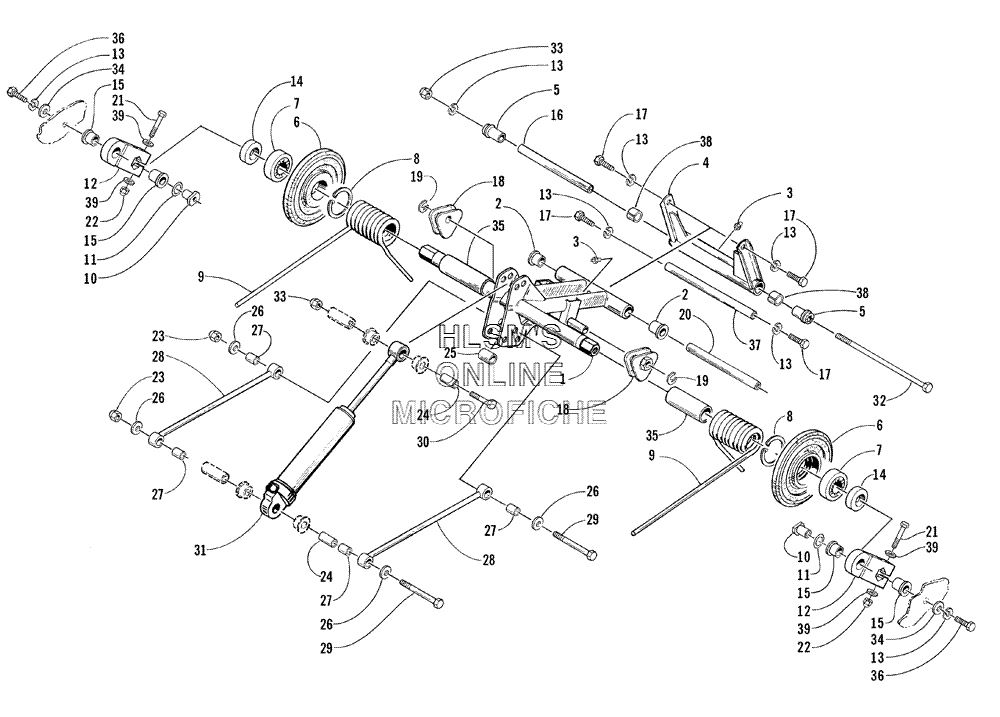

REAR SUSPENSION REAR ARM ASSEMBLY для Arctic Cat Powder Special 2K - 2000 года выпуска
-
№АртикулНазвание
-
10704-415 ARM, IDLER (INC. 2 AND ONE NO. 3)ARM, IDLER (INC. 2 AND ONE NO. 3)
-
21604-100 BUSHINGBUSHING
-
39916-963 FITTING, GREASEFITTING, GREASE
-
40704-359 ARM, REAR (INC. ONE NO. 3 AND 38)ARM, REAR (INC. ONE NO. 3 AND 38)
-
51604-201 AXLE, SERRATEDAXLE, SERRATED
-
60604-374 WHEEL, IDLER (INC. 7-8)WHEEL, IDLER (INC. 7-8)
-
70107-598 BEARINGBEARING
-
80123-798 RING, RETAININGRING, RETAINING
-
91604-050 SPRING, SUSPENSION - RIGHT (POWDER SPECIAL)SPRING, SUSPENSION - RIGHT (POWDER SPECIAL)
-
91604-051 SPRING, SUSPENSION - LEFT (POWDER SPECIAL)SPRING, SUSPENSION - LEFT (POWDER SPECIAL)
-
101604-181 AXLE, FLANGEDAXLE, FLANGED
-
111604-187 WASHER, OFFSET ARMWASHER, OFFSET ARM
-
120704-502 OFFSET PIVOT, IDLER (INC. 15)OFFSET PIVOT, IDLER (INC. 15)
-
138051-277 WASHER, LOCKWASHER, LOCK
-
141604-365 SPACER, OFFSET ARMSPACER, OFFSET ARM
-
151604-202 BUSHING, FLAREDBUSHING, FLARED
-
160604-194 TUBE, AXLETUBE, AXLE
-
178002-223 SCREW, CAPSCREW, CAP
-
181604-204 BLOCK, SPRING ADJUSTER - RIGHTBLOCK, SPRING ADJUSTER - RIGHT
-
181604-205 BLOCK, SPRING ADJUSTER - LEFTBLOCK, SPRING ADJUSTER - LEFT
-
190623-138 RING, RETAINERRING, RETAINER
-
201604-208 AXLE, ALUMINUMAXLE, ALUMINUM
-
218002-138 SCREW, CAPSCREW, CAP
-
228040-426 NUTNUT
-
238041-486 NUT, LOCKNUT, LOCK
-
240604-644 SLEEVE, SHOCKSLEEVE, SHOCK
-
250604-298 SPACER, SHOCK LINKSPACER, SHOCK LINK
-
268050-282 WASHERWASHER
-
271604-172 AXLE, LINKAXLE, LINK
-
280704-350 LINK, INNER CARRIAGE (POWDER SPECIAL)LINK, INNER CARRIAGE (POWDER SPECIAL)
-
298002-233 SCREW, CAPSCREW, CAP
-
308002-227 SCREW, CAPSCREW, CAP
-
310704-435 SHOCK ABSORBER - REAR ARM (POWDER SPECIAL)SHOCK ABSORBER - REAR ARM (POWDER SPECIAL)
-
320623-105 SCREW, CAPSCREW, CAP
-
338040-486 NUT, LOCKNUT, LOCK
-
340623-044 WASHERWASHER
-
350114-254 SLEEVE, SPRINGSLEEVE, SPRING
-
368002-224 SCREW, CAPSCREW, CAP
-
370704-501 AXLE, ALUMINUMAXLE, ALUMINUM
-
380603-083 BUSHINGBUSHING
-
398050-242 WASHERWASHER
