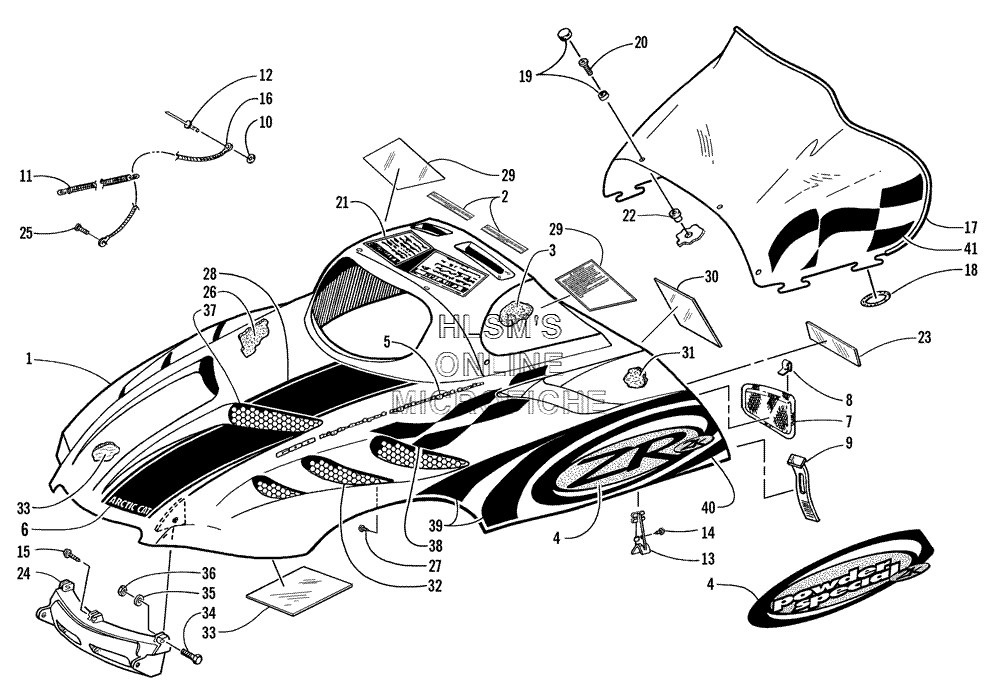

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat Powder Special 2K - 2000 года выпуска
-
№АртикулНазвание
-
23611-406 DECAL, CAUTION - FUEL - RIGHT - FRENCHDECAL, CAUTION - FUEL - RIGHT - FRENCH
-
23611-407 DECAL, CAUTION - FUEL - LEFT - ENGLISHDECAL, CAUTION - FUEL - LEFT - ENGLISH
-
30717-100 FOAM, HOOD - UPPER RIGHTFOAM, HOOD - UPPER RIGHT
-
30717-101 FOAM, HOOD - UPPER LEFTFOAM, HOOD - UPPER LEFT
-
43611-638 DECAL, HOOD - LOWER RIGHT (POWDER SPECIAL)DECAL, HOOD - LOWER RIGHT (POWDER SPECIAL)
-
43611-639 DECAL, HOOD - LOWER LEFT (POWDER SPECIAL)DECAL, HOOD - LOWER LEFT (POWDER SPECIAL)
-
53611-618 DECAL, HOOD - ''''HIGH OUTPUT''''DECAL, HOOD - ''''HIGH OUTPUT''''
-
63611-616 DECAL, HOOD - CENTER - LOWERDECAL, HOOD - CENTER - LOWER
-
71606-214 SCREEN, HOODSCREEN, HOOD
-
80123-596 CLIP, PUSHCLIP, PUSH
-
91606-067 STRAP, HOLDDOWNSTRAP, HOLDDOWN
-
100123-802 WASHERWASHER
-
110123-510 SPRING, EXTENSIONSPRING, EXTENSION
-
128061-708 RIVETRIVET
-
131606-049 GUIDE, HOODGUIDE, HOOD
-
140623-257 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
150623-684 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
161606-158 CABLE, HOODCABLE, HOOD
-
171606-818 WINDSHIELDWINDSHIELD
-
180616-032 O-RINGO-RING
-
190124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
200623-121 SCREW, MACHINESCREW, MACHINE
-
212611-971 DECAL, WARNINGDECAL, WARNING
-
220123-010 NUT, EXPANSIONNUT, EXPANSION
-
232611-769 DECAL, WARNING - SEATING CAPACITYDECAL, WARNING - SEATING CAPACITY
-
241606-047 HINGE, HOODHINGE, HOOD
-
250623-309 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
260717-102 FOAM, HOOD - MIDDLEFOAM, HOOD - MIDDLE
-
270623-707 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
283611-615 DECAL, HOOD - CENTER - UPPERDECAL, HOOD - CENTER - UPPER
-
293611-068 DECAL, WARNING-BRAKE/ENGINE-RIGHT-(FRENCH)DECAL, WARNING-BRAKE/ENGINE-RIGHT-(FRENCH)
-
293611-069 DECAL, WARNING-BRAKE/ENGINE-LEFT-(ENGLISH)DECAL, WARNING-BRAKE/ENGINE-LEFT-(ENGLISH)
-
302611-972 DECAL, CAUTION - FUEL - ENGINE/BATTERYDECAL, CAUTION - FUEL - ENGINE/BATTERY
-
310717-110 FOAM, HOOD - REAR - RIGHTFOAM, HOOD - REAR - RIGHT
-
310717-111 FOAM, HOOD - REAR LEFTFOAM, HOOD - REAR LEFT
-
321606-308 SCREEN, VENT - HOOD - RIGHTSCREEN, VENT - HOOD - RIGHT
-
321606-309 SCREEN, VENT - HOOD - LEFTSCREEN, VENT - HOOD - LEFT
-
330619-206 TAPE, FOILTAPE, FOIL
-
340623-296 SCREW, MACHINESCREW, MACHINE
-
358050-157 WASHERWASHER
-
360623-392 NUT, LOCKNUT, LOCK
-
371606-318 SCREEN, HOOD - CENTERSCREEN, HOOD - CENTER
-
383611-620 DECAL, HOOD - SIDE - UPPER - RIGHTDECAL, HOOD - SIDE - UPPER - RIGHT
-
383611-621 DECAL, HOOD - SIDE - UPPER - LEFTDECAL, HOOD - SIDE - UPPER - LEFT
-
393611-624 DECAL, HOOD - SIDE - MIDDLE - RIGHTDECAL, HOOD - SIDE - MIDDLE - RIGHT
-
393611-625 DECAL, HOOD - SIDE - MIDDLE - LEFTDECAL, HOOD - SIDE - MIDDLE - LEFT
-
403611-640 DECAL, HOOD - LOWER REAR - RIGHTDECAL, HOOD - LOWER REAR - RIGHT
-
403611-641 DECAL, HOOD - LOWER REAR - LEFTDECAL, HOOD - LOWER REAR - LEFT
-
413611-626 DECAL, WINDSHIELD - RIGHTDECAL, WINDSHIELD - RIGHT
-
413611-627 DECAL, WINDSHIELD - LEFTDECAL, WINDSHIELD - LEFT
