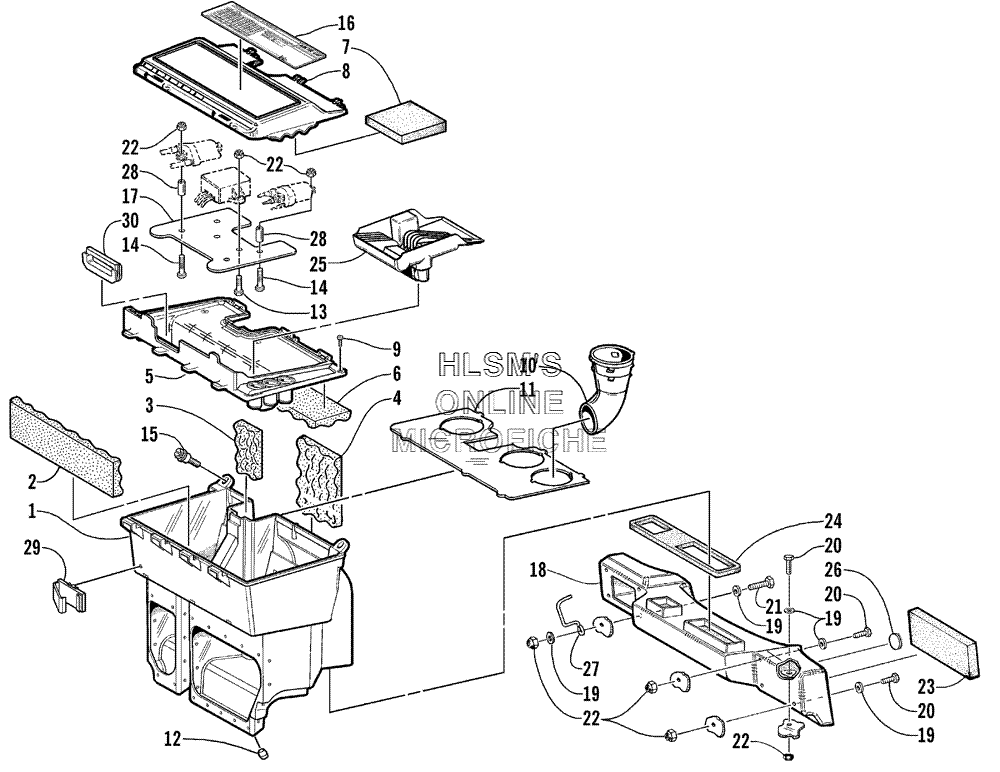

AIR SILENCER ASSY. для Arctic Cat MOUNTAIN CAT 1000 - 2002 года выпуска
-
№АртикулНазвание
-
10770-294 SILENCER, AIRSILENCER, AIR
-
20617-254 FOAM, AIR SILENCER (FRONT)FOAM, AIR SILENCER (FRONT)
-
30617-252 FOAM, AIR SILENCER, BACK MAGNETOFOAM, AIR SILENCER, BACK MAGNETO
-
40617-253 FOAM, AIR SILENCER, BACK PTOFOAM, AIR SILENCER, BACK PTO
-
50770-418 TRAY, COVERTRAY, COVER
-
60617-393 FOAM, AIR SILENCER, COVERFOAM, AIR SILENCER, COVER
-
70617-411 FOAM, TOOL TRAYFOAM, TOOL TRAY
-
81670-049 COVER, TOOL TRAYCOVER, TOOL TRAY
-
90623-882 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
100670-617 FUNNEL, AIR SILENCERFUNNEL, AIR SILENCER
-
110670-863 BAFFLE, AIR SILENCERBAFFLE, AIR SILENCER
-
121606-038 BUMPER, AIR SILENCERBUMPER, AIR SILENCER
-
138017-580 SCREW, MACHINESCREW, MACHINE
-
148017-585 SCREW, MACHINESCREW, MACHINE
-
150623-780 SCREW, MACHINE, HEX SHOULDERSCREW, MACHINE, HEX SHOULDER
-
164611-498 DECAL, JET CHARTDECAL, JET CHART
-
171606-806 PLATE, MOUNTING, COMPONENTSPLATE, MOUNTING, COMPONENTS
-
180670-950 PLENUM, AIR SILENCERPLENUM, AIR SILENCER
-
198050-222 WASHERWASHER
-
208002-040 SCREW, CAPSCREW, CAP
-
218002-042 SCREW, CAPSCREW, CAP
-
228040-366 NUT, LOCKNUT, LOCK
-
230617-270 FOAM, PLENUM, INTAKEFOAM, PLENUM, INTAKE
-
240617-245 SEAL, AIR SILENCER/PLENUMSEAL, AIR SILENCER/PLENUM
-
250670-826 TRAY, TOOLTRAY, TOOL
-
260623-078 DISC, VELCRODISC, VELCRO
-
270645-314 BRACKET, HARNESSBRACKET, HARNESS
-
280612-108 SPACERSPACER
-
290623-792 CLIP, PUSH MOUNTCLIP, PUSH MOUNT
-
300670-827 GROMMETGROMMET
