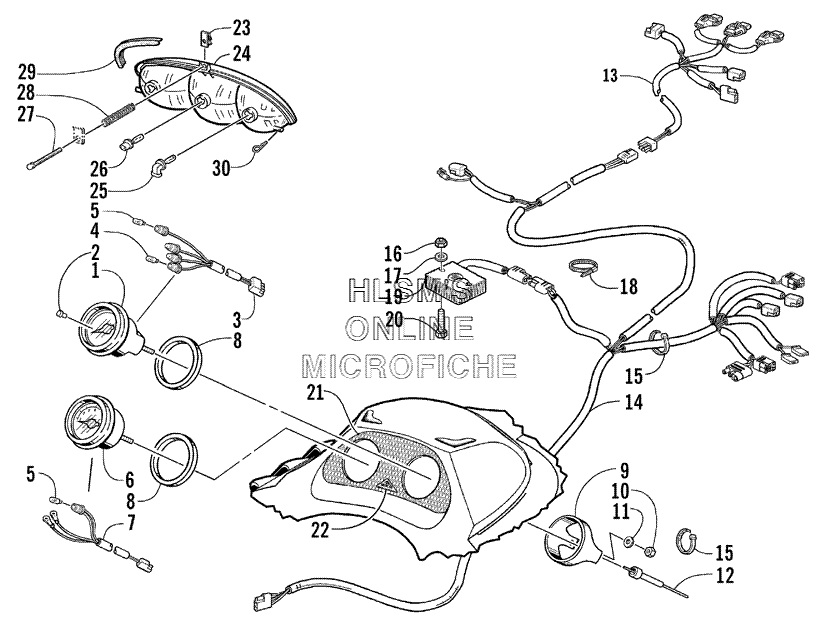

HEADLIGHT- INSTRUMENTS- AND WIRING ASSY. для Arctic Cat MOUNTAIN CAT 1000 - 2002 года выпуска
-
№АртикулНазвание
-
10620-238 SPEEDOMETER (INC. 2, 4 AND ONE NO. 5)SPEEDOMETER (INC. 2, 4 AND ONE NO. 5)
-
20620-073 KNOB, TRIPMETERKNOB, TRIPMETER
-
30620-151 HARNESS, SPEEDOMETER (INC. 4 AND ONE NO. 5)HARNESS, SPEEDOMETER (INC. 4 AND ONE NO. 5)
-
40620-149 BULB, INNERDICATORBULB, INNERDICATOR
-
50230-020 BULB, INSTRUMENTBULB, INSTRUMENT
-
60620-237 TACHOMETER (INC. 7 AND ONE NO. 5)TACHOMETER (INC. 7 AND ONE NO. 5)
-
70620-215 HARNESS, TACHOMETER (INC. ONE NO. 5)HARNESS, TACHOMETER (INC. ONE NO. 5)
-
80620-135 RING, RUBBER CUSHIONRING, RUBBER CUSHION
-
90620-134 RING, RETAINING BRACKETRING, RETAINING BRACKET
-
100623-038 NUT W/WASHERNUT W/WASHER
-
118050-212 WASHERWASHER
-
120620-269 CABLE, SPEEDOMETERCABLE, SPEEDOMETER
-
130686-610 HARNESS, HOODHARNESS, HOOD
-
140686-767 HARNESS, MAINHARNESS, MAIN
-
150123-788 CABLE TIE, 7 IN.CABLE TIE, 7 IN.
-
168041-366 NUT, LOCKNUT, LOCK
-
178050-217 WASHERWASHER
-
180123-811 CABLE TIE, 4 IN.CABLE TIE, 4 IN.
-
190630-142 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
208002-044 SCREW, CAPSCREW, CAP
-
214611-104 DECAL, INSTRUMENT, HOODDECAL, INSTRUMENT, HOOD
-
223611-611 DECAL, "MADE IN U.S.A.", DOMEDDECAL, "MADE IN U.S.A.", DOMED
-
230623-757 NUT, UNUT, U
-
240609-250 LENS/REFLECTOR, HEADLIGHTLENS/REFLECTOR, HEADLIGHT
-
250609-251 BULB, HEADLIGHT, HIGH BEAMBULB, HEADLIGHT, HIGH BEAM
-
260609-252 BULB, HEADLIGHT, LOW BEAMBULB, HEADLIGHT, LOW BEAM
-
270623-467 SCREW, THUMBSCREW, THUMB
-
280623-466 SPRING, ADJUSTERSPRING, ADJUSTER
-
290617-309 SEAL, HEADLIGHT, 24 IN.SEAL, HEADLIGHT, 24 IN.
-
290617-310 SEAL, HEADLIGHT, 14 IN.SEAL, HEADLIGHT, 14 IN.
-
300623-847 CLIP, HAIRPINCLIP, HAIRPIN
