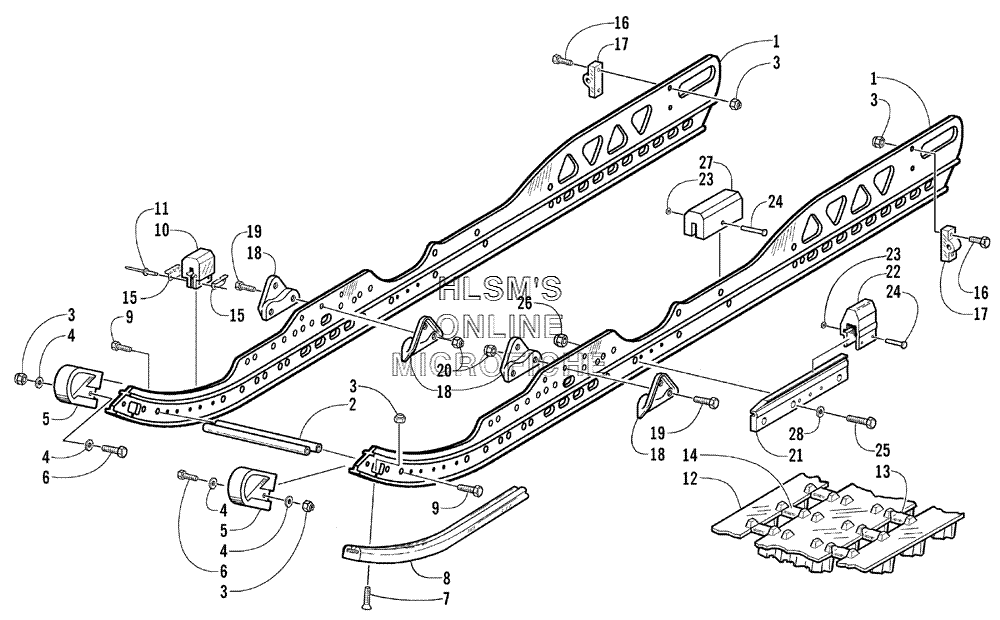

SLIDE RAIL AND TRACK ASSY. для Arctic Cat MOUNTAIN CAT 1000 - 2002 года выпуска
-
№АртикулНазвание
-
-7996-320 COMPLETE SKID FRAME ASSY.COMPLETE SKID FRAME ASSY.
-
11604-986 RAIL, FORMED, STAMPEDRAIL, FORMED, STAMPED
-
20604-426 SUPPORT, RAILSUPPORT, RAIL
-
38040-366 NUT, LOCKNUT, LOCK
-
48050-217 WASHERWASHER
-
51604-137 END CAP, SLIDE RAILEND CAP, SLIDE RAIL
-
68002-044 SCREW, CAPSCREW, CAP
-
70123-869 SCREW, MACHINESCREW, MACHINE
-
82604-043 WEARSTRIP, SLIDE RAIL (BLACK)WEARSTRIP, SLIDE RAIL (BLACK)
-
98002-134 SCREW, CAPSCREW, CAP
-
100604-918 PAD, SHOCKPAD, SHOCK
-
118060-633 RIVET, SOLIDRIVET, SOLID
-
121602-237 TRACK ASSY. (INC. 13, 14)TRACK ASSY. (INC. 13, 14)
-
130602-488 CLIP, GUIDECLIP, GUIDE
-
140602-541 CLIP, WEARCLIP, WEAR
-
150604-967 BRACKET, RETAININGBRACKET, RETAINING
-
168002-042 SCREW, CAPSCREW, CAP
-
170704-352 ADJUSTER, TRACKADJUSTER, TRACK
-
182604-159 BRACKET, MOUNTING ARM (FRONT)BRACKET, MOUNTING ARM (FRONT)
-
198002-131 SCREW, CAPSCREW, CAP
-
208040-426 NUT, LOCKNUT, LOCK
-
211604-488 BRACE, RAIL (RIGHT)BRACE, RAIL (RIGHT)
-
211604-489 BRACE, RAIL (LEFT)BRACE, RAIL (LEFT)
-
221604-487 PAD, SHOCKPAD, SHOCK
-
230623-773 NUT, PUSHNUT, PUSH
-
240623-772 RIVET, SOLIDRIVET, SOLID
-
258002-222 SCREW, CAPSCREW, CAP
-
268041-486 NUT, LOCKNUT, LOCK
-
271604-607 PAD, SHOCKPAD, SHOCK
-
288050-277 WASHERWASHER
