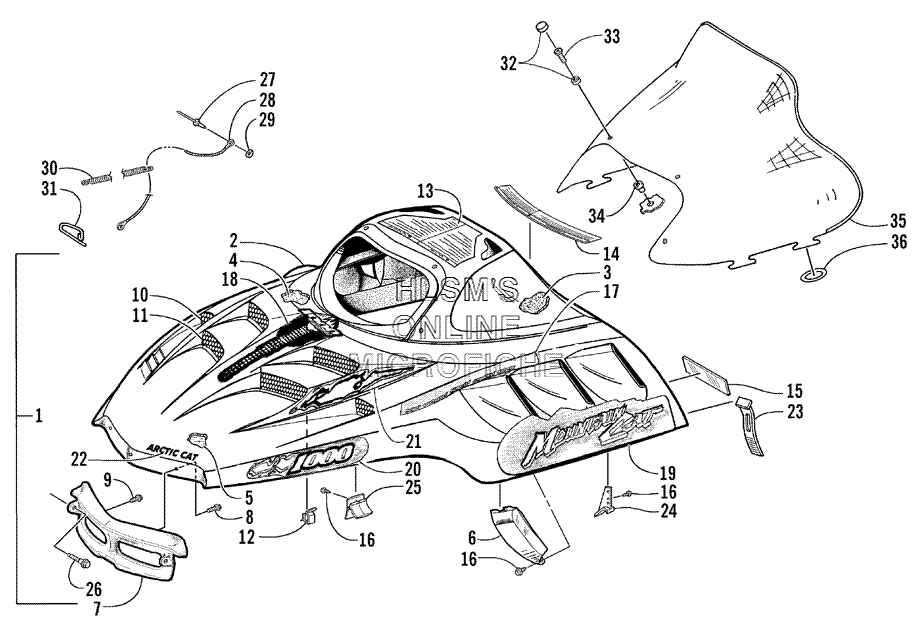

HOOD AND WINDSHIELD ASSY. для Arctic Cat MOUNTAIN CAT 1000 - 2002 года выпуска
-
№АртикулНазвание
-
11718-211 HOOD W/DECALS (INC. 2, 22)HOOD W/DECALS (INC. 2, 22)
-
20718-951 HOOD W/O DECALS (INC. 3, 16)HOOD W/O DECALS (INC. 3, 16)
-
30717-112 FOAM, HOOD (UPPER/RIGHT)FOAM, HOOD (UPPER/RIGHT)
-
30717-113 FOAM, HOOD (UPPER/LEFT)FOAM, HOOD (UPPER/LEFT)
-
40717-136 FOAM, HOOD (RIGHT)FOAM, HOOD (RIGHT)
-
40717-137 FOAM, HOOD (LEFT)FOAM, HOOD (LEFT)
-
50619-206 TAPE, FOILTAPE, FOIL
-
61606-632 PLUG, VENT (RIGHT)PLUG, VENT (RIGHT)
-
61606-633 PLUG, VENT (LEFT)PLUG, VENT (LEFT)
-
71606-324 HINGE, HOODHINGE, HOOD
-
80623-790 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
90623-791 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
101706-351 SCREEN, VENT, HOOD (RIGHT) (PLATINUM)SCREEN, VENT, HOOD (RIGHT) (PLATINUM)
-
101706-352 SCREEN, VENT, HOOD (LEFT) (PLATINUM)SCREEN, VENT, HOOD (LEFT) (PLATINUM)
-
111706-354 SCREEN, VENT, HOOD (CENTER) (RIGHT) (PLATINUM)SCREEN, VENT, HOOD (CENTER) (RIGHT) (PLATINUM)
-
111706-353 SCREEN, VENT, HOOD (CENTER) (LEFT) (PLATINUM)SCREEN, VENT, HOOD (CENTER) (LEFT) (PLATINUM)
-
120123-394 CLIP, RETAININGCLIP, RETAINING
-
133611-360 DECAL, WARNINGDECAL, WARNING
-
144611-010 DECAL, CAUTION, ENGINE/BATTERY/FUELDECAL, CAUTION, ENGINE/BATTERY/FUEL
-
152611-769 DECAL, WARNING, SEATING CAPACITYDECAL, WARNING, SEATING CAPACITY
-
160623-257 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
174611-060 DECAL, HOOD (UPPER/RIGHT)DECAL, HOOD (UPPER/RIGHT)
-
174611-061 DECAL, HOOD (UPPER/LEFT)DECAL, HOOD (UPPER/LEFT)
-
184611-067 DECAL, HOOD, CRESTDECAL, HOOD, CREST
-
194611-352 DECAL, HOOD (LOWER/RIGHT)DECAL, HOOD (LOWER/RIGHT)
-
194611-353 DECAL, HOOD (LOWER/LEFT)DECAL, HOOD (LOWER/LEFT)
-
204611-354 DECAL, HOOD (FRONT) (RIGHT)DECAL, HOOD (FRONT) (RIGHT)
-
204611-355 DECAL, HOOD (FRONT) (LEFT)DECAL, HOOD (FRONT) (LEFT)
-
214611-370 DECAL, HOOD, VENT (RIGHT)DECAL, HOOD, VENT (RIGHT)
-
214611-371 DECAL, HOOD, VENT (LEFT)DECAL, HOOD, VENT (LEFT)
-
224611-062 DECAL, "ARCTIC CAT", HOODDECAL, "ARCTIC CAT", HOOD
-
231606-067 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
241606-321 GUIDE, HOODGUIDE, HOOD
-
251606-622 GUIDE, HOOD (FRONT)GUIDE, HOOD (FRONT)
-
260623-777 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
278061-708 RIVETRIVET
-
280616-614 CABLE, HOODCABLE, HOOD
-
290123-802 WASHERWASHER
-
300123-510 SPRING, EXTENSIONSPRING, EXTENSION
-
310115-528 HOOK, CABLEHOOK, CABLE
-
320124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
330623-902 SCREW, MACHINESCREW, MACHINE
-
340623-845 NUT, EXPANSIONNUT, EXPANSION
-
352606-531 WINDSHIELDWINDSHIELD
-
360616-032 O-RING, WINDSHIELDO-RING, WINDSHIELD
