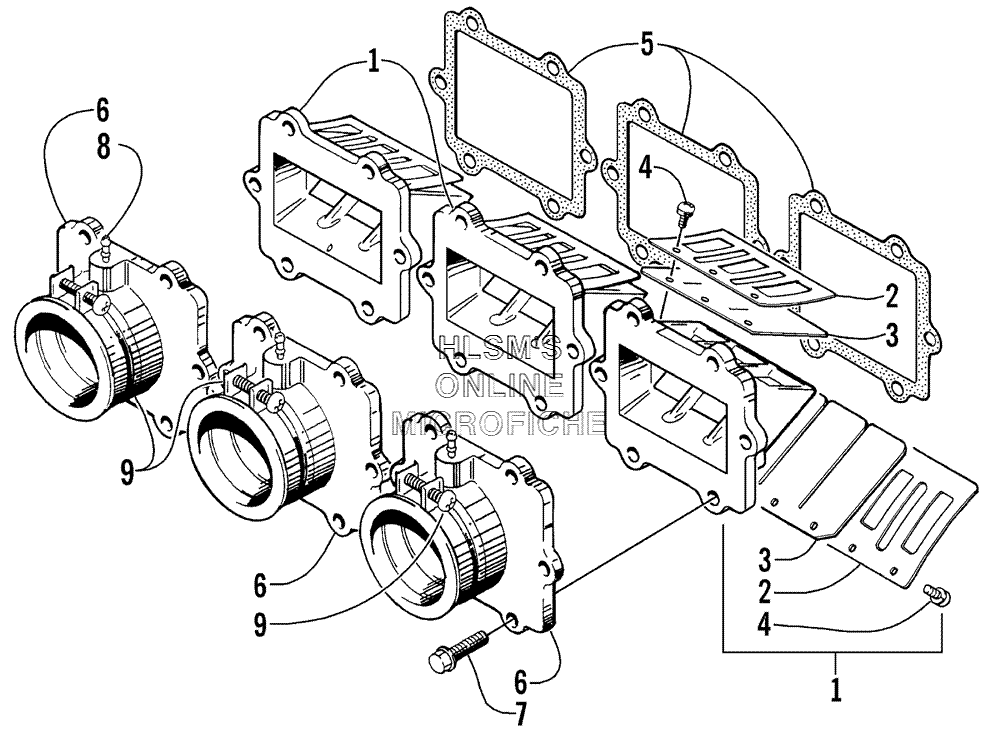

REED VALVE ASSY. для Arctic Cat MOUNTAIN CAT 1000 - 2002 года выпуска
-
№АртикулНазвание
-
13005-124 VALVE, REED, ASSY. (INC. 2, 4)VALVE, REED, ASSY. (INC. 2, 4)
-
23004-176 STOPPER, REED VALVESTOPPER, REED VALVE
-
33004-177 VALVE, REEDVALVE, REED
-
43004-506 SCREWSCREW
-
53008-076 GASKET, REED VALVEGASKET, REED VALVE
-
63005-419 INTAKE FLANGE ASSY.INTAKE FLANGE ASSY.
-
73004-376 BOLTBOLT
-
83003-597 FITTING, INJECTION, OILFITTING, INJECTION, OIL
-
93004-463 CLAMP, INTAKECLAMP, INTAKE
