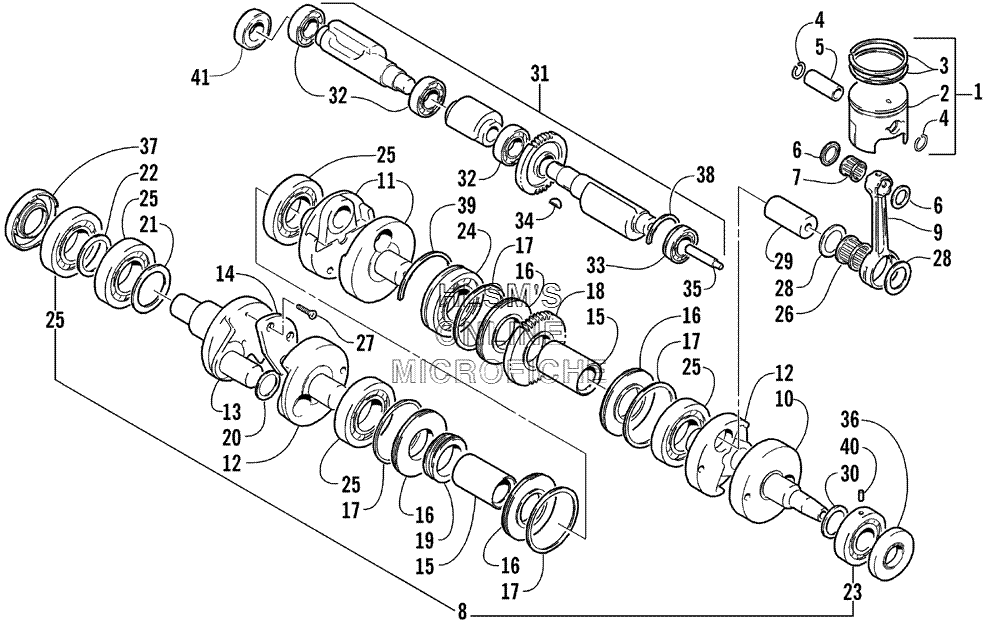

PISTON AND CRANKSHAFT для Arctic Cat MOUNTAIN CAT 1000 - 2002 года выпуска
-
№АртикулНазвание
-
13006-044 PISTON ASSY. (INC. 2, 4)PISTON ASSY. (INC. 2, 4)
-
33005-865 RING ASSY.RING ASSY.
-
43005-304 CIRCLIP, PISTON PINCIRCLIP, PISTON PIN
-
53008-509 PIN, PISTONPIN, PISTON
-
63008-500 WASHERWASHER
-
73008-503 BEARING, PISTON PINBEARING, PISTON PIN
-
83005-640 CRANKSHAFT ASSY. (INC. 9, 30)CRANKSHAFT ASSY. (INC. 9, 30)
-
93005-308 ROD, CONNECTINGROD, CONNECTING
-
103005-641 CRANKSHAFT (RIGHT)CRANKSHAFT (RIGHT)
-
113005-642 CRANKSHAFT (CENTER) INNERCRANKSHAFT (CENTER) INNER
-
123005-643 CRANKSHAFT (CENTER), OUTERCRANKSHAFT (CENTER), OUTER
-
133005-311 CRANKSHAFT (LEFT)CRANKSHAFT (LEFT)
-
143008-516 BALANCER, CRANKSHAFTBALANCER, CRANKSHAFT
-
153005-312 PIPE, CRANKSHAFT JOINTPIPE, CRANKSHAFT JOINT
-
163004-167 RACE (MIDDLE) SEALRACE (MIDDLE) SEAL
-
173004-168 RING (MIDDLE) SEALRING (MIDDLE) SEAL
-
183005-314 GEAR, BALANCER SHAFT DRIVEGEAR, BALANCER SHAFT DRIVE
-
193004-178 GEAR, OIL PUMP DRIVEGEAR, OIL PUMP DRIVE
-
203008-499 WASHERWASHER
-
213004-204 WASHER, CRANK BEARINGWASHER, CRANK BEARING
-
223004-148 SHIMSHIM
-
233004-150 BEARING, CRANKSHAFT (RIGHT)BEARING, CRANKSHAFT (RIGHT)
-
243004-151 BEARING, CRANKSHAFT (CENTER)BEARING, CRANKSHAFT (CENTER)
-
253004-152 BEARING, CRANKSHAFT (LEFT)BEARING, CRANKSHAFT (LEFT)
-
263008-504 BEARING, CRANK PINBEARING, CRANK PIN
-
273004-372 SCREW, MACHINESCREW, MACHINE
-
283005-145 SHIMSHIM
-
293004-700 PIN, CRANKPIN, CRANK
-
303008-501 WASHERWASHER
-
313006-045 SHAFT, BALANCER, ASSY. (INC. 32, 35)SHAFT, BALANCER, ASSY. (INC. 32, 35)
-
323006-042 BEARING, BALANCER SHAFT (LEFT)BEARING, BALANCER SHAFT (LEFT)
-
333006-041 BEARING, BALANCER SHAFT (RIGHT)BEARING, BALANCER SHAFT (RIGHT)
-
343004-540 KEYKEY
-
353005-316 SHAFT, WATER PUMPSHAFT, WATER PUMP
-
363008-525 SEA(LEFT (RIGHT)) IGHTSEA(LEFT (RIGHT)) IGHT
-
373008-526 SEAL (LEFT)SEAL (LEFT)
-
383004-156 C, RING, BALANCER SHAFTC, RING, BALANCER SHAFT
-
393004-157 C, RING, CRANKSHAFTC, RING, CRANKSHAFT
-
403003-658 PIN, ALIGNMENTPIN, ALIGNMENT
-
413008-502 PLUG, BALANCER SHAFTPLUG, BALANCER SHAFT
