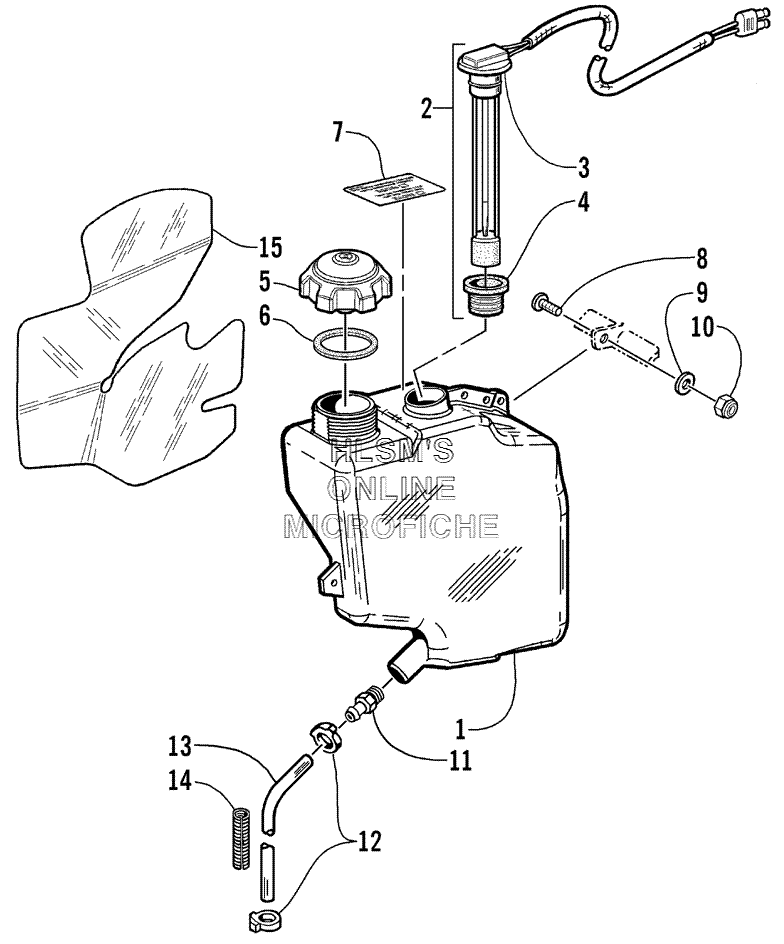

OIL TANK ASSY. для Arctic Cat MOUNTAIN CAT 1000 - 2002 года выпуска
-
№АртикулНазвание
-
11670-026 TANK, OILTANK, OIL
-
20609-503 SENSOR, LOW OIL, ASSY. (INC. 3, 4)SENSOR, LOW OIL, ASSY. (INC. 3, 4)
-
30609-518 SWITCH, OIL SENSOR W/HARNESSSWITCH, OIL SENSOR W/HARNESS
-
40609-237 SEAL, GROMMET, OIL SENSORSEAL, GROMMET, OIL SENSOR
-
50670-871 CAP, TANK (INC. 6)CAP, TANK (INC. 6)
-
60109-733 SEAL, TANK CAPSEAL, TANK CAP
-
71611-564 DECAL, OIL TANKDECAL, OIL TANK
-
88017-580 SCREW, MACHINESCREW, MACHINE
-
98050-217 WASHERWASHER
-
108040-366 NUT, LOCKNUT, LOCK
-
110670-733 OUTLET, OIL TANKOUTLET, OIL TANK
-
120124-045 CLAMP, HOSECLAMP, HOSE
-
130610-015 HOSE, OIL LINE (100 FT)HOSE, OIL LINE (100 FT)
-
130610-016 HOSE, OIL LINE (25 FT)HOSE, OIL LINE (25 FT)
-
140716-507 CONDUIT, FLEXIBLECONDUIT, FLEXIBLE
-
151670-234 FOIL, PROTECTIVEFOIL, PROTECTIVE
