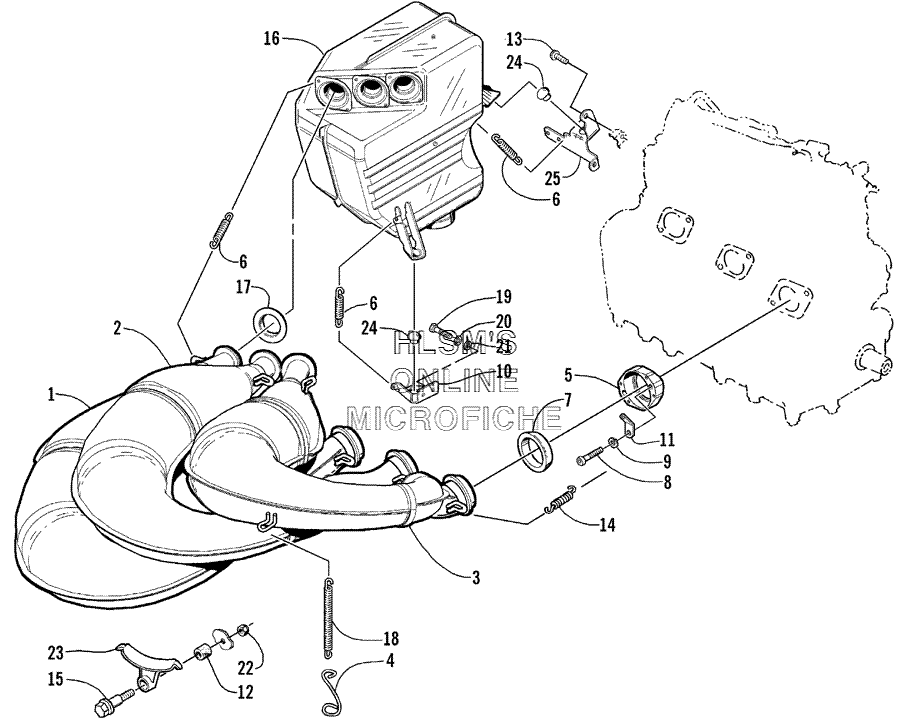

EXHAUST ASSY. для Arctic Cat MOUNTAIN CAT 1000 - 2002 года выпуска
-
№АртикулНазвание
-
10712-839 CHAMBER, EXPANSION, ASSY., MAGNETOCHAMBER, EXPANSION, ASSY., MAGNETO
-
20712-840 CHAMBER, EXPANSION, ASSY. (CENTER)CHAMBER, EXPANSION, ASSY. (CENTER)
-
30712-841 CHAMBER, EXPANSION, ASSY., PTOCHAMBER, EXPANSION, ASSY., PTO
-
41612-021 BRACKET, WIRE FORMBRACKET, WIRE FORM
-
51612-328 MANIFOLD, EXHAUSTMANIFOLD, EXHAUST
-
60612-471 SPRING, EXHAUSTSPRING, EXHAUST
-
70612-667 GASKET, EXHAUST HEADER/EXPANSION CHAMBERGASKET, EXHAUST HEADER/EXPANSION CHAMBER
-
80623-667 SCREW, SOCKET HEADSCREW, SOCKET HEAD
-
90623-710 WASHER, LOCK, HIGH COLLARWASHER, LOCK, HIGH COLLAR
-
100612-963 BRACKET, RESONATOR MOUNTING, CHASSISBRACKET, RESONATOR MOUNTING, CHASSIS
-
111606-635 TAB, HOOD CABLETAB, HOOD CABLE
-
120612-107 BUSHING, RESONATOR, RUBBERBUSHING, RESONATOR, RUBBER
-
130623-765 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
140612-668 SPRING, EXTENSIONSPRING, EXTENSION
-
150623-856 SCREW, MACHINE, HEX SHOULDERSCREW, MACHINE, HEX SHOULDER
-
160712-836 RESONATORRESONATOR
-
170612-693 GASKET, EXHAUST, TAILPIPEGASKET, EXHAUST, TAILPIPE
-
180123-468 SPRING, EXTENSIONSPRING, EXTENSION
-
198002-040 SCREW, CAPSCREW, CAP
-
208051-217 WASHER, LOCKWASHER, LOCK
-
218050-217 WASHERWASHER
-
228040-366 NUT, LOCKNUT, LOCK
-
230712-372 BRACKET, EXPANSION CHAMBERBRACKET, EXPANSION CHAMBER
-
240612-111 BUMPER, MOLDED, RUBBERBUMPER, MOLDED, RUBBER
-
250612-962 BRACKET, RESONATOR MOUNTING, DROPCASEBRACKET, RESONATOR MOUNTING, DROPCASE
