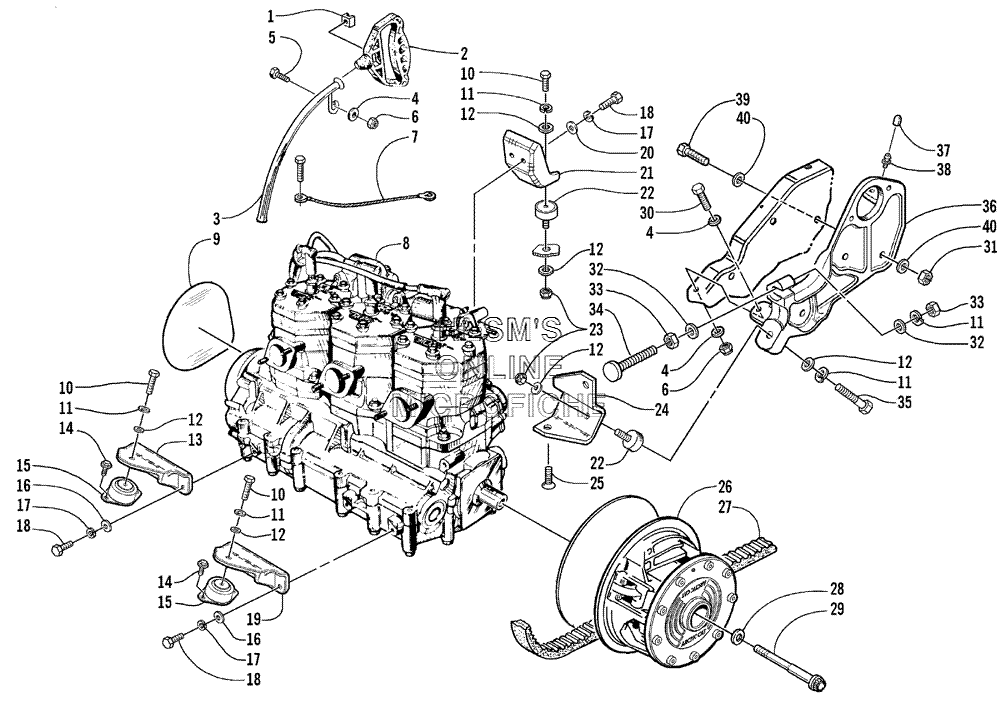

ENGINE AND RELATED PARTS для Arctic Cat MOUNTAIN CAT 1000 - 2002 года выпуска
-
№АртикулНазвание
-
10606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
20636-363 HANDLE, RECOILHANDLE, RECOIL
-
30708-089 GUIDE, RECOIL ROPEGUIDE, RECOIL ROPE
-
48050-217 WASHERWASHER
-
58002-045 SCREW, CAPSCREW, CAP
-
68040-366 NUT, LOCKNUT, LOCK
-
70686-126 WIRE, ENGINE GROUNDWIRE, ENGINE GROUND
-
80662-321 ENGINE, AA10L5ENGINE, AA10L5
-
91670-328 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
108002-222 SCREW, CAPSCREW, CAP
-
118051-277 WASHER, LOCKWASHER, LOCK
-
128050-277 WASHERWASHER
-
130708-062 BRACKET, ENGINE MOUNTING (RIGHT) (FRONT)BRACKET, ENGINE MOUNTING (RIGHT) (FRONT)
-
140623-765 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
150608-090 MOUNT, ENGINE (FRONT)MOUNT, ENGINE (FRONT)
-
168050-252 WASHERWASHER
-
178051-242 WASHER, LOCKWASHER, LOCK
-
188002-132 SCREW, CAPSCREW, CAP
-
190708-063 BRACKET, ENGINE MOUNTING (LEFT) (FRONT)BRACKET, ENGINE MOUNTING (LEFT) (FRONT)
-
208050-242 WASHERWASHER
-
210708-119 BRACKET, ENGINE MOUNTING (RIGHT) (REAR)BRACKET, ENGINE MOUNTING (RIGHT) (REAR)
-
220608-251 MOUNT, ENGINE (REAR)MOUNT, ENGINE (REAR)
-
238040-486 NUT, LOCKNUT, LOCK
-
240708-071 BRACKET, ENGINE MOUNTING (LEFT) (REAR)BRACKET, ENGINE MOUNTING (LEFT) (REAR)
-
250623-095 SCREW, MACHINESCREW, MACHINE
-
260725-355 CLUTCH, DRIVECLUTCH, DRIVE
-
270627-020 BELT, DRIVEBELT, DRIVE
-
280623-210 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
290623-804 BOLT, DRIVE CLUTCHBOLT, DRIVE CLUTCH
-
308002-041 SCREW, CAPSCREW, CAP
-
310623-026 NUT, LOCKNUT, LOCK
-
328050-282 WASHERWASHER
-
338042-516 NUTNUT
-
340608-299 BUMPER, TORQUE, ENGINEBUMPER, TORQUE, ENGINE
-
358002-226 SCREW, CAPSCREW, CAP
-
360708-143 BRACKET, ENGINE MOUNTING/BEARING SUPPORT (INC. 37, 38)BRACKET, ENGINE MOUNTING/BEARING SUPPORT (INC. 37, 38)
-
370623-904 CAP, GREASE FITTINGCAP, GREASE FITTING
-
380623-899 FITTING, GREASEFITTING, GREASE
-
398002-225 SCREW, CAPSCREW, CAP
-
400623-044 WASHERWASHER
