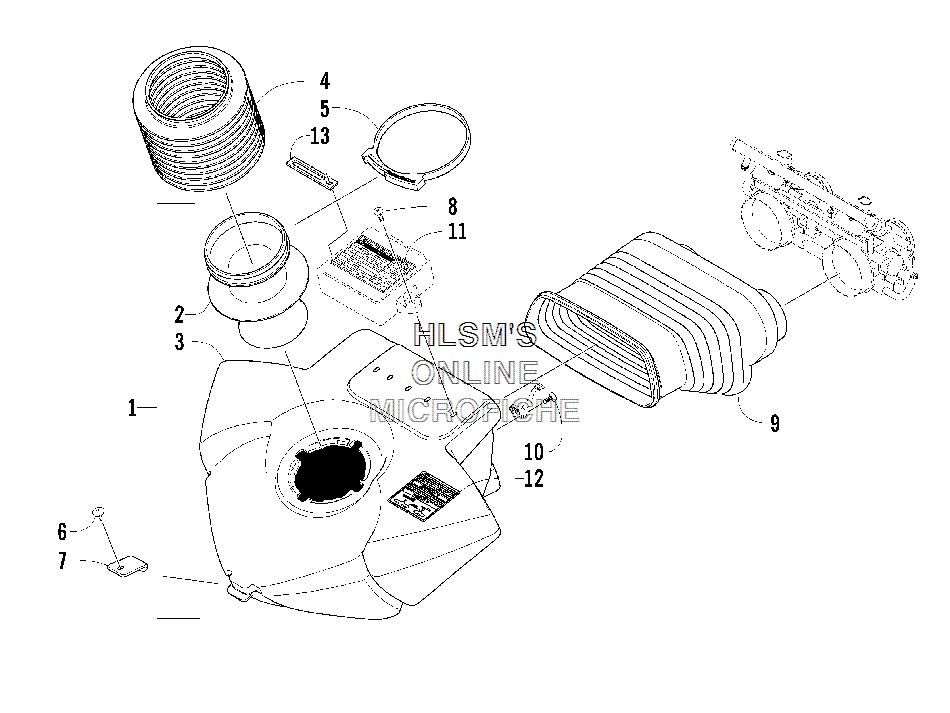

AIR SILENCER ASSY. для Arctic Cat Sabercat 700 EFI LX (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
10770-719 SILENCER, AIR - ASSY. (INC. 2-3)SILENCER, AIR - ASSY. (INC. 2-3)
-
21670-473 INTAKE, AIRINTAKE, AIR
-
31670-754 SILENCER, AIRSILENCER, AIR
-
41670-514 CONNECTOR, AIR-INTAKECONNECTOR, AIR-INTAKE
-
51623-132 CLAMP, AIR-INTAKE CONNECTORCLAMP, AIR-INTAKE CONNECTOR
-
61623-031 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
73606-146 HOLD-DOWN, AIR SILENCERHOLD-DOWN, AIR SILENCER
-
81623-204 SCREW, PLASTITESCREW, PLASTITE
-
91670-584 BOOT, AIR SILENCERBOOT, AIR SILENCER
-
100623-165 CLIP, X-MAS TREE-5/32CLIP, X-MAS TREE-5/32
-
115611-619 DECAL, EFI DIAGNOSTIC CODESDECAL, EFI DIAGNOSTIC CODES
-
123611-403 DECAL, FUEL DESIGNATIONDECAL, FUEL DESIGNATION
-
133002-964 CLAMP, WIRECLAMP, WIRE
