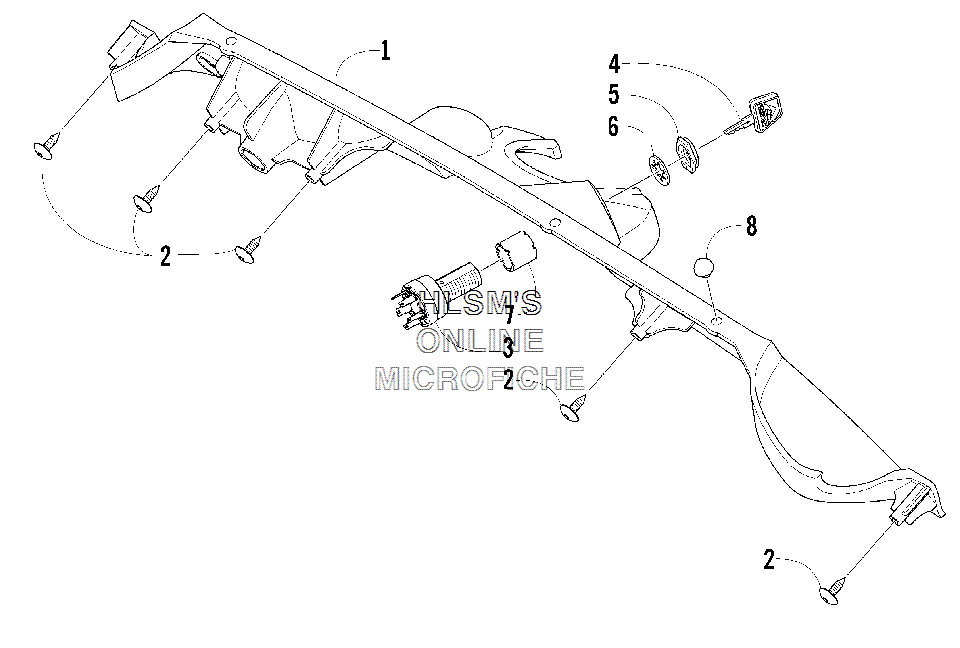

CONSOLE AND SWITCH ASSY. для Arctic Cat Sabercat 700 EFI LX (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
12706-252 CONSOLECONSOLE
-
21623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
30609-449 SWITCH, IGNITION (INC. 4)SWITCH, IGNITION (INC. 4)
-
50609-113 NUT, RETAININGNUT, RETAINING
-
60123-899 WASHER, IGNITION SWITCHWASHER, IGNITION SWITCH
-
70609-450 SPACER, IGNITION SWITCHSPACER, IGNITION SWITCH
-
81612-287 BUMPER, MOLDED-RUBBER (CHASSIS)BUMPER, MOLDED-RUBBER (CHASSIS)
