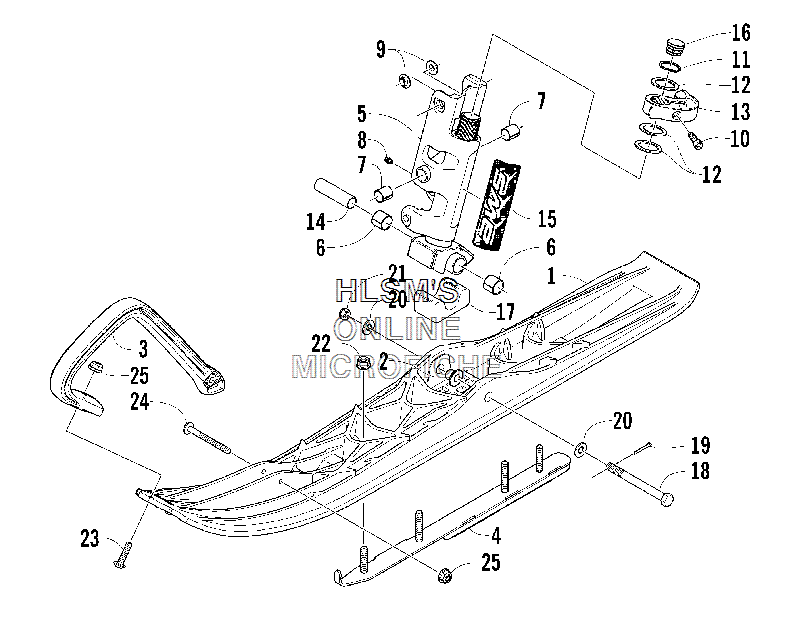

SKI AND SPINDLE ASSY. для Arctic Cat Sabercat 700 EFI LX (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
12603-599 SKI, PLASTIC (BLACK)SKI, PLASTIC (BLACK)
-
22603-397 INSERTINSERT
-
32603-598 HANDLE, PLASTICHANDLE, PLASTIC
-
42603-456 WEARBAR - RIGHTWEARBAR - RIGHT
-
42603-457 WEARBAR - LEFTWEARBAR - LEFT
-
51703-724 SPINDLE, STEERING - RIGHT (INC. 6-13)SPINDLE, STEERING - RIGHT (INC. 6-13)
-
51703-725 SPINDLE, STEERING - LEFT (INC. 6-13)SPINDLE, STEERING - LEFT (INC. 6-13)
-
60603-158 BEARINGBEARING
-
70603-083 BEARINGBEARING
-
81623-010 FITTING, GREASEFITTING, GREASE
-
90603-647 INSERT, SPINDLEINSERT, SPINDLE
-
108005-584 SCREW, CAPSCREW, CAP
-
110623-796 RING, RETAININGRING, RETAINING
-
121603-203 WASHER, THRUSTWASHER, THRUST
-
131703-659 ARM, STEERINGARM, STEERING
-
142603-548 AXLE, SPINDLEAXLE, SPINDLE
-
156611-684 DECAL, "AWS" - SPINDLE - RIGHTDECAL, "AWS" - SPINDLE - RIGHT
-
156611-685 DECAL, "AWS" - SPINDLE - LEFTDECAL, "AWS" - SPINDLE - LEFT
-
160623-831 CAP, SPINDLECAP, SPINDLE
-
170603-036 DAMPER, SKIDAMPER, SKI
-
180623-776 SCREW, CAPSCREW, CAP
-
190123-458 PIN, COTTERPIN, COTTER
-
201623-364 WASHERWASHER
-
210123-296 NUT, LOCKNUT, LOCK
-
228047-486 NUT, LOCKNUT, LOCK
-
238017-582 SCREW, MACHINESCREW, MACHINE
-
248017-587 SCREW, MACHINESCREW, MACHINE
-
258047-366 NUT, LOCKNUT, LOCK
